| Prod Model: |
12V38AH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
| Brand: |
Topsh |
Product Description

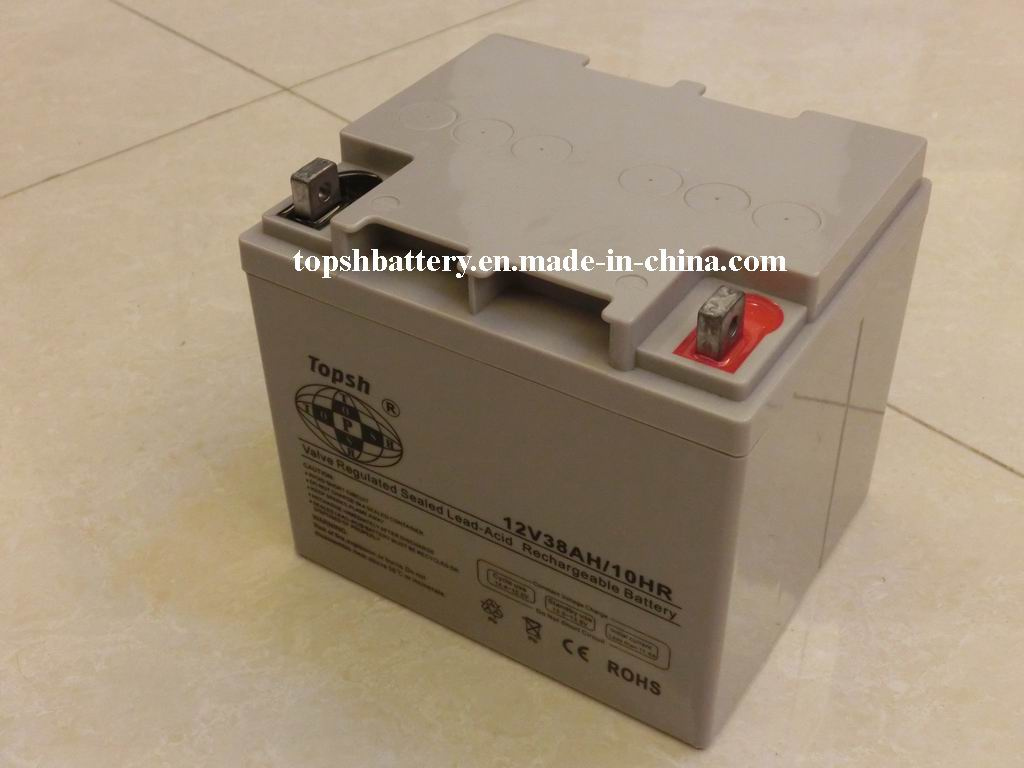

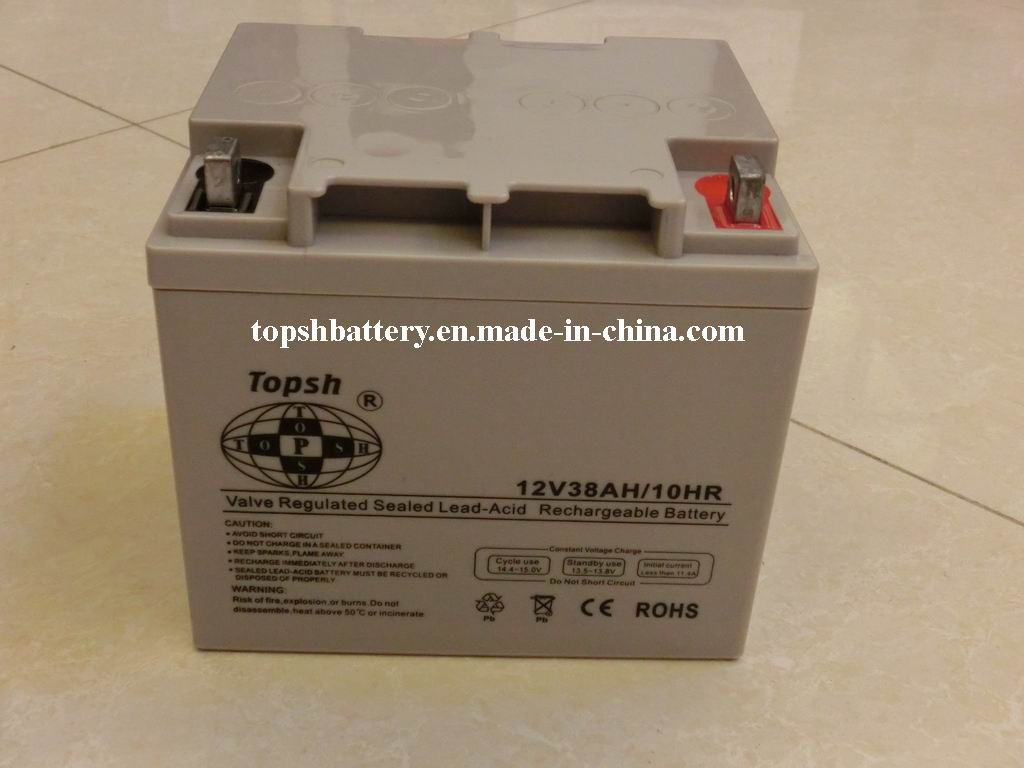

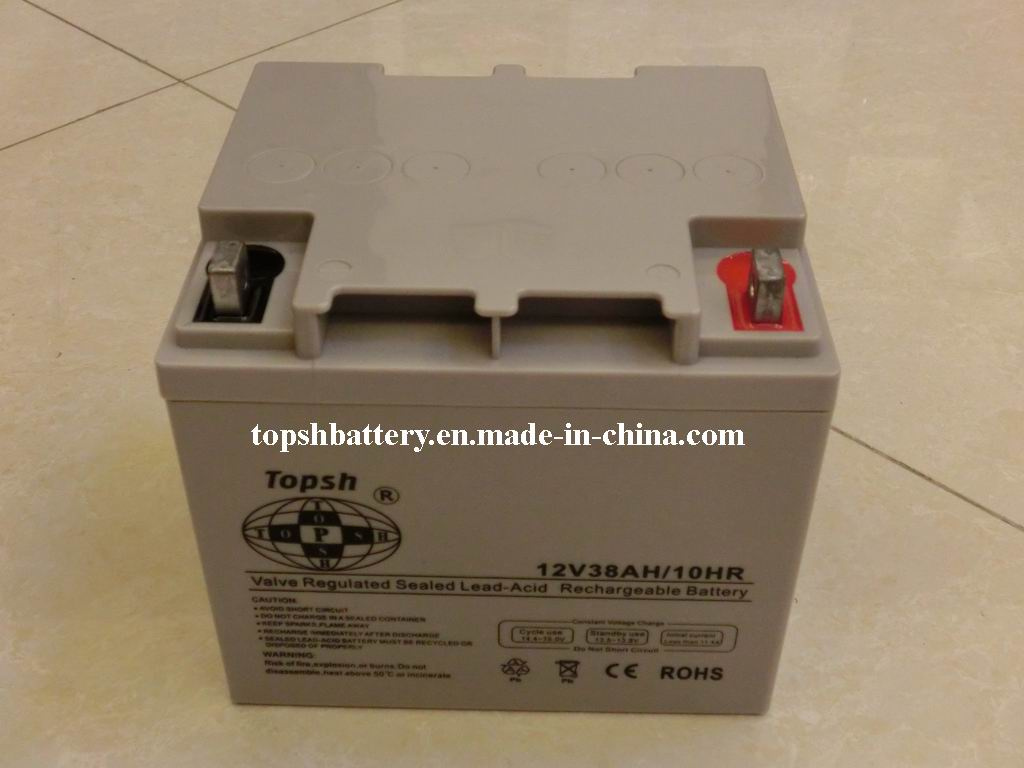

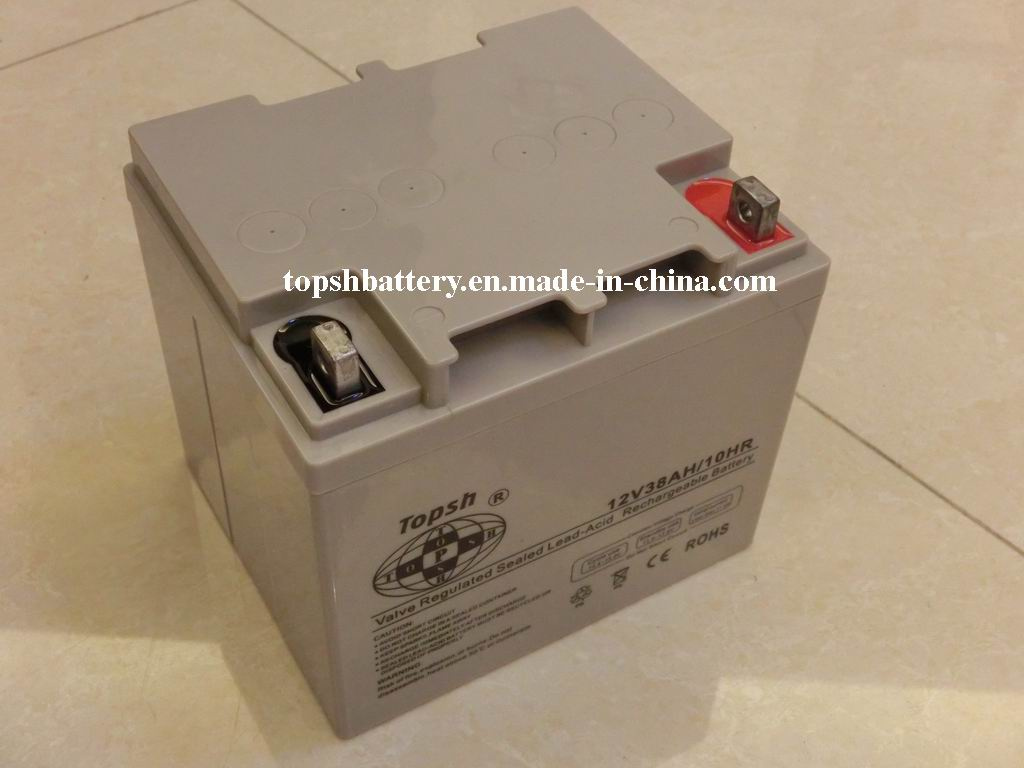

VRLA Battery 12v38ah in storage batteries description:
Model : NTD12v38ah
Demension: 196(L)*166(W)*175(H)*182(TH)mm
Weight :12kg,
Normal voltage :12v
Rated Capacity : 38ah
Package : 1pcs/box
Applications:
Solar system ,wind system
Control equipments,
Communication systems
Power home inverter
And so on....
Special design assures high discharge rate and high-power output. Cycle service life is more than 300 cycles at 100% discharge
Characteristics
Nominal Voltage | 12V |
Nominal Capacity (10 hour rate) | 38Ah |
Capacity 25degrees(77°F) | 10 hour rate (4.0A) | 38Ah |
3 hour rate (10.0A) | 28.5Ah |
1 hour rate (22.0A) | 20.9Ah |
Internal Resistance | Full Charged Battery 25 degrees(77°F) | ≤15mΩ |
Cyclic Life | 50%(C10) Depth of discharge | 600times |
Float Life | 25 degrees (77°F) Float charge at 13.8V | about5times |
Capacity affected by Temperature (10 hour ) | 40 degrees (104°F) | 102% |
25 degrees (77°F) | 100% |
0 degrees (32°F) | 85% |
-15 (5°F) | 65% |
Self-Discharge 25 degrees (77°F) | Capacity after 3 month storage | 90% |
Capacity after 6 month storage | 80% |
Capacity after 12 month storage | 62% |
Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than11.4A Voltage 14.6-15.0V |
Float | Voltage 13.5-13.8V |
Battery Construction
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw Material | Lead dioxide | Lead | ABS | Rubber | Pb | Fiberglass | Sulfuric acid |
