| Prod Model: |
ZJT-105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Materials: |
Sand, Cement, Fly Ash, EPS etc. |
| Appliction: |
Wall, Floor, Roof, Villa and Buildings etc. |
| Advantage: |
Eco-Friendly, Waterproof and Fireproof etc |
| Anti-Earthquake: |
8-13 Grade |
| Use Life: |
>70 Years |
| Sound Insulation: |
>45 Db |
| Anti-Wind: |
13 Degree |
| Compressive Strength: |
>3.5 MPa |
| Hanging Force: |
>1000 N |
| Sample Available: |
Yes |
| Material: |
Sandwich Panel |
| Usage: |
Interior & Exterior Wall |
| Certification: |
ISO9001, ISO14001 |
| Customized: |
Customized Is Also Available. |
Product Description
Sandwich Panel, EPS Sandwich Panel
1 ZJT Sandwich Panel Type
-- With EPS grain
--With Ceramsite
2 ZJT Sandwich Panel Composition
Face: Calcium Silicate Board
Core: Cement+EPS Polystyrene Foam+Sand
3 ZJT Sandwich Panel Specifications
Length: 2270/2440/2700/3000mm
Thickness: 50/60/75/90/120/150/180/200mm
Width: 610mm
4 ZJT Sandwich Panel Advantages
1) Heat insulation and Preservation The major material is polystyrene grains and other anti-freezing and heat preserving environmental protection materials, which could adjust the indoor temperature at a constant range thus achieving the effects of ecological adjustment.
2) Waterproof and Fireproof The face panel of energy-saving boards on both side are 5mm calcium silicate fireproof board and the main materials is a mixture of cement, sand, fly ash etc.
3) Sound insulation and Absorption The inside construction material (EPS polystyrene grain) functions well in sound insulation and sound-absorbing.
4) Easy construction and Time Saving For the same construction work that takes 12 people and 60 minuses to complete with traditional blocks, only 3 people and 60 minutes will do with boards, thus can save a lot of labor and time cost for the construction part.
5) High intensity and Quake Proof The energy saving boards are all with high intensity and the earthquake resistance can reach 8.5 magnitudes.
6) Space and Cost Saving For its thickness and lightweight features, the building area is largely increased and saves the cost construction structure a lot.
5 ZJT Sandwich Panel Application
Floor System
ZJT light weight compound sandwich panel can be innovatively used as floor board. This system has the outstanding advantages such as hight load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc., which is much suitable for the fields including the floor plate of additional top floor, factory, workshop, warehouse, etc.

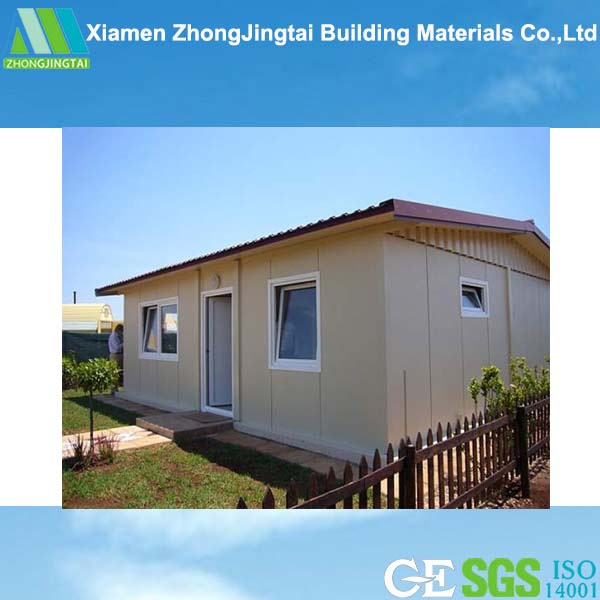

Villa&Exterior Wall System
Light weight compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, and such ecology effect just goes with the tide of modern residential building.
Interior Partition System
Light weight compound sandwich board have been widely applying to the special positions like partition panel of high-rise and mega-high-rise buildings.
Roof System
Light weight compound sandwich panel roof system brings brand-new added value and application idea to the traditional roof construction. Its easy construction time, which bring out its hight integrated performance.
6ZJT Sandwich Panel Packing
1)Free packing, normal pallet + packing belt
2)Standard exporting packing, good pallet+pearl wool+corner protective paper+packing belt+plastic thin film
3)Loading: Normally 18 pallets per 20' container or according to clients' requirements
7 About us
Xiamen ZhongJingtai building materials Co., Ltd, is a professional high-tech research and development company producing new wall materials, machinery and equipment development, technology production and promotion of product applications. The company is situated in the charming Xiamen city, with the convenience of water and land transportation and only ten minutes from the airport. We respond positively to the national policy on wall reforming. We have developed successfully wall panels that meet the energy saving needs of modern architecture. We can produce more than 2 million square meters of various wall materials annually.
8 Contact Us
Dear friend, any problem pls feel free to contact us, mail me or call at +86-592-5216902, thank you very much.
Contact Person: LycheeHu
Mobile Phone: 8615080319173
| Item | Parameter Index Specifications |
|
| 60mm | 75mm | 90mm | 100mm | 120mm | 150mm | 180mm |
| 1 | Anti-impact capacity/times | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 | ≥5 |
| 2 | Anti-bending damage load/times over deadweight | ≥3.0 | ≥3.0 | ≥3.0 | ≥3.0 | ≥5.0 | ≥5.0 | ≥7.0 |
| 3 | Compressive strength/Mpa | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 |
| 4 | Softening coefficient | ≥0.8 | ≥0.8 | ≥0.8 | ≥0.8 | ≥0.8 | ≥0.8 | ≥0.8 |
| 5 | Surface density(kg/m2) | ≤70 | ≤70 | ≤90 | ≤90 | ≤110 | ≤110 | ≤130 |
| 6 | Moisture rate(%) | ≤10 | ≤10 | ≤10 | ≤10 | ≤8 | ≤8 | ≤8 |
| 7 | Dring shrinkage value(mm/m) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| 8 | Hang force(N) | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| 9 | Sound insulation capacity in the air(dB) | ≥35 | ≥35 | ≥40 | ≥40 | ≥45 | ≥50 | ≥55 |
| 10 | Fire endurance(h) | ≥1.5 | ≥1.5 | ≥2.5 | ≥2.5 | ≥3.0 | ≥4.5 | ≥6.0 |
| 11 | Heat transfer coefficient(w/m2.k) | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| 12 | Inner radiation index | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| 13 | Outer radiation index | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| 14 | Frost resistance(shall show no visible cracks and surface without change) | _ | _ | shall show no visible cracks and surface without change |
| 15 | The combustion properties(A1 or A2) | _ | _ | A1 or A2 |
Xiamen Zhongjingtai Building Materials Co., Ltd is located in Fujian province, China. We are a manufacturer specialized at producing granite & marble & quartz stone & sandwich panel & permeable paver for 5 years.
We're engaged in high quality natural stone product mining, manufacturing and trading. Our products including granite tiles, countertops, paving stone, slabs, monument, mosaic, cultural stone, fireplace, cut-to-size^etc have been constantly exporting to Europe, Australia, America, Southeast Asia, South Africa and MID-east and highly enjoyed a good reputation.
We are particularly good at project orders for Hotel, Home, Public eara, Commercial Center, Holiday Inn, Comfort Suites, Residential Interior Decoration etc.
CE certificate
For some products, such as G603, G654, G682, G684, Basalt and Artificial white stone.
Sample Request:
We provide sample for customers without charges and load in your container. For new customer, the courier cost of sample will be paid by you. The common size of sample is 150X150X10mm, 100X100X10mm.
Quality Guarantee:
Our quality control division is well-established to implement strict and scientific quality control procedures. (including thickness tolerance, color vary, angle tolerance and finishing face). Relevant records was kept well, which is approved by SGS Auditors.
We can assure fast offer, competitive price, good quality, timely delivery and excellent service after sales. Our products is exported to Europe, America, Middle-east.
We welcome you or the third party to check the quality before shipping.
We are experted at stone products packing and containers loading
