| Prod Model: |

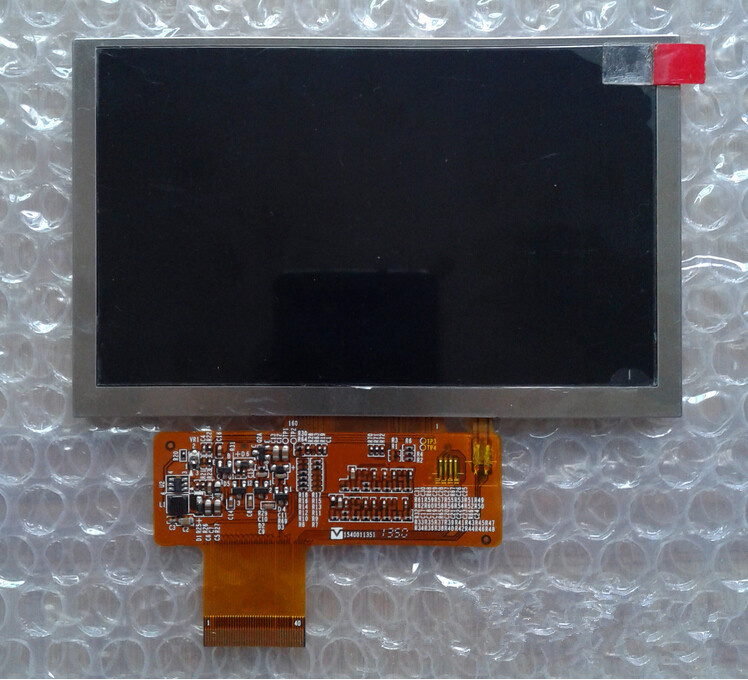

TM050RDH03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inch: |
5inch |
| Application: |
Graphic Design |
| Feature: |
LED Backlight Display |
| Type: |
TN |
| Widescreen: |
Widescreen |
| Response Time: |
20ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Screen Size: |
5inch |
| Aspect Ratio: |
15:9 |
| Optimum Resolution: |
800*480 |
Product Description
Operating temperature -20 ~ 60 ° C
Storage temperature -30 ~ 70 ° C
5.0
800(RGB)*480(WVGA)
188PPI
RGB
15:9(:)
0.045*0.135mm(*)
0.135*0.135mm(*)
TBD
,Hard coating (3H)
108.0*64.8mm(*)
111.1*67.9mm(*)
120.7*75.8 mm(*)
3.10(Max) mm ()
Display Mode TN, often white display , transmissive
LCD Brightness 300cd / m
Contrast 600: (. Typ) 1 ( transmission )
Display color 16.7 (8-bit)
Gamut 50% NTSC (CIE1931)
Response time 20 (Max.) (Tr + Td) (ms)
Viewing Angle 70/70/50/70 (Typ.) (CR≥10) ( left / right / up / down )
Look into the best perspective on the 6 o'clock
White color X: 0.320; Y: 0.340
White field variation 1.25 / 1.33 (Typ. / Max.) (9 points)
Position side- light lamp
Light type WLED
The number of lamps 6S4P
Lamp shape arrays
Source life 20K (Typ.) ( H )
Single lamp voltage 19.2V (Typ.)
Single- lamp current 60mA (Typ.)
Lamp total power 1.2mW (Typ)
Interface type is included in the panel signal interface
No backlight circuit
Parallel RGB signal categories
Signal subcategories Parallel RGB (1 ch, 8 -bit)
LCD voltage 3.3V (Typ.)
Signal voltage 0≤VIL≤0.3VDD; 0.7VCC≤VIH≤VDD
Interface Type TBD
Interface feet away from 1.0mm
Number of interfaces 1pcs
Interface pin count 40pins
Yaosheng provide total solutions for LCD panels and modules. We support both monochrome STNs and full-color TFT LCDs. We provide full customized monochrome STN, and semi-customized TFT modules. We are supplying a wide variety of LCD modules to meet the ever-growing demands.
Yaosheng Solutions get strong support from Tianma, Truly, and Innolux, we provide flexible support to our customers, fast delivery, flexible MOQ, and competitive cost.
Please check the following website to find the products supported by us.
Our products include LCD panels of TN, STN, FSTN; LCMs with COG, COB, TAB; And TFT LCD modules.
Custom LCD Panels: Segment, icon, chracter, and mixed
Custom / Standard Character: 16X1, 16X2, 16X4, 20X2, 20X4, 24X2, 40X2, 40X4
Custom / Standard Graphic: 128X64, 128X128, 160X128, X160X160, 240X128, 240X64, 320X240
Semi-custom / Standard TFT Modules: 2.8", 3.5", 4.3", 4.7", 5.0", 7.0", 10.4"
All of our displays are RoHS compliant, which have been used in wide range of applications: Communication, Medical, Instrumentation, Metering, and Industrial applications.
We endeavour to serve our customers with Quality Products, Competitive Cost, Excelled Service, and Fast Delivery.
