| Prod Model: |
L(P) |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Diameter: |
355mm / 390mm/ 440mm |
| Power: |
1200W/2000W/ 2500W/3000W |
| Color: |
Matt White / Gloss White |
| Certification: |
CB |
| Installation: |
Vertical Type |
| Usage: |
Bathroom |
| Water Storage Mode: |
Water Storage Type |
| Control Mode: |
Mechanical |
| Pressure: |
Pressurized |
| Interior Material: |
Enamel |
| Bearing Or Not: |
Closed |
| Housing Material: |
Stainless Steel |
| Capacity: |
15L / 30L / 50L / 80L / 100L |
Product Description
Characteristic:

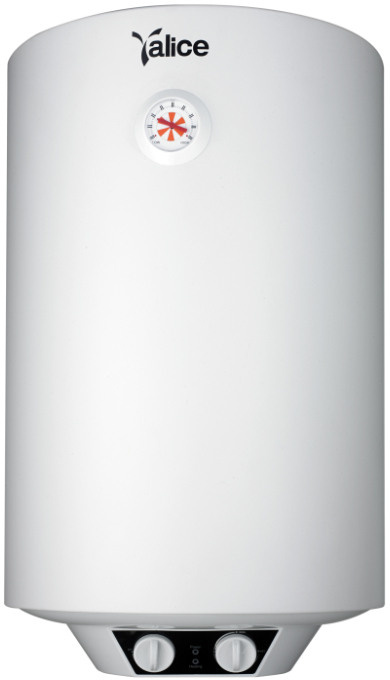

1. CE&CB Certified Shower Water Heater
2. Vertical water heater, wall mounted, with enemal tank
3. Classic European style water heater
4. Sealed storage electric water heater
5. Stainless Steel 316 / Incoloy 840 / Incoloy 800 / Enamel / Copper heating element, safety valve and thermometer, thermal cut out.
6. Made by finest SPCC, with 2.0mm enamel inner tank, can bear 7.5 bars pressure, and 160, 000 times recycle pressure test
7. Insulation Material is made of fire-resistant PUF after high pressure injection.
Material | SPCC | Inner Tank Thickness | 1.8 |
| Rated Frequency | 50Hz / 60Hz | Flange Thickness | 2.0mm |
| Rated Pressure | 0.75±0.05 MPa | Welding Type | MAG |
| Rank Waterproof | IPX4 | Theoretical Life | 160,000 times |
| Model | Capacity | Packing Size(mm) | Loading Quantity(pc) |
| 20'GP | 40'GP | 40'HQ |
| L | 15L | 415*405*410 | 350 | 725 | 865 |
| 30L | 415*405*560 | 279 | 579 | 644 |
| 50L | 445*435*695 | 195 | 405 | 488 |
| 80L | 495*495*830 | 112 | 238 | 276 |
| 100L | 495*495*980 | 88 | 184 | 230
|
Zhongshan Weiya Elec Appl & Burner Co., Ltd is a professional manufacturer of Elec Water Heater. Established in 2000, Weiya has modern European workshops and office building, occupying 30000 square meters. From its beginning of establishment, Weiya strives to follow technical fashion of Elec Water Heater. The company has devoted a lot to the innovation and upgrade of technologies, and providing healthy and environmental products for worldwide customers. From the perspective of an enterprise development process, the environment friendly products will be the dominant market driver in the long run inner, so Weiya managed to search the best talents and technical consultant, in order to strengthen production and development capacity tremendously.
Over the years, Weiya company always give first priority to quality. It is complete to measure the utensil, detection means is perfect, can totally guarantee examining the need completely of product quality. The company develops in production scale and series, keeps leaning the advanced experience from domestic and abroad, and innovates continuously, bolds in practice, forms a business model in efficiency, science, and flexibility. We have been pursuing the management idea "quality, service and integrity", endeavor to satisfy customer, and create value for them, making all efforts to satisfy new and old customers with excellent quality and perfect service, and provide good pre-sale and after-sales service.
We will constantly improve our production quality and provide best services to our customers worldwide.
