| Prod Model: |
SYWF-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Air Volume: |
1080 |
| Frequency(Hz): |
50/60 |
| Current(a): |
0.46 |
| Net Wieght(Kg): |
3.0 |
| Type Of Connection: |
Connection Box, 1.5m Power Line |
| Protection Class: |
IP54 |
| Original: |
Shanghai, China |
| Insulation Class: |
B/F |
| Mode Of Operation: |
S1 |
| Bearings: |
Maintenance-Free |
| Blade Material: |
Cast Iron |
| Electric Current Type: |
AC |
| Mounting: |
Duct Fan |
| Certification: |
CE |
Product Description

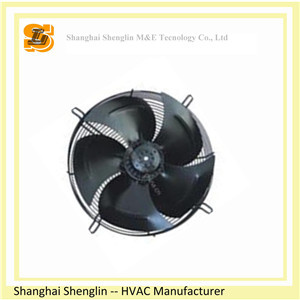

Axial Fan Motor
YWF series axial fan motors are external rotor fan motors with characteristics of compact structure, convenient installation, reliable operation, low noise, energy saving and high efficiency.
They are divided into single-phrase asynchronous capacitor fan motor and three-phrase asynchronous fan motor which are widely used in condensers, evaporators and other refrigeration equipments and ventilating cycle areas.
The insulation class of the YWF series axial fan motors is B, and the protection class of that is IP54. Each of the motor has a thermal protector in its winding.
Voltage/Frequency: The voltage of the single-phrase motor is 220V/50Hz, and that of the three-phrase motor is 380V/50Hz. We can also supply other fan motors with different voltages and frequencies according to clients' requirement.
The standard length of the electrical wire on the fan is 1.5m, and we can also provide connection box to fan motors for clients' choices.
The applicable environment temperature of the fan motors used in condensers is from -30 oC to +60 oC, and that of the fan motors used in evaporators is from -40 oC to 60 oC.
The average working life of motors is more than 30000 hours.
All motors in our factory have attained CE approval in Europe and CCC safety certificate in China.
Our factory cooperated with Shanghai Jiao Tong University on technology,External Rotor Fan Blade advanced aerodynamic design,beautiful appearance,high efficiency.
1. Fan rotor is direct welding by rotor and blade,adopt double-sided dynamic balance,dynamic balance achieved G6.3.
2. The fan blade,rotor and grid is all powered sprayed,the surface is bright appearance,has good corrosion-resistant effect,Motor Cover also by the special treatment,Bright beautiful appearance is not easy oxidation discoloration.
3. Fan normal ambient temperature:-25ºC~+60ºC,if the temperature range in excess of the above,our factory can be customized according to customer requirements.
4. The insulation grade of currently supplied fan is B-class,F-class and H-class,the protection class is PI54.As present,we can also supply the fan which working environment temperature:-40ºC~+60ºCand-25ºC~+80ºC.Can with thermal protection.Our factory will put out the IP55 axial fan motor with new structure soon,and this structure has get national patent.It can apply to the humidity and bad environment.
5. Fans has single-phase capasitor running and three-phase motor ,has 220V/50Hz and 220V/60Hz.Three-phase motor has 380V/50Hz and 380V/60Hz.At the same time can provide customers with the special requirements of the motor:a special voltage,dual voltage and so on.
6. Fan motor can be directly elected,and can provide various forms of water-proof junction box for the user's selection.
7. Fan flow curves acquisition developed by the Shanghai Jiao Tong University Air-cooled Technology.The testing data collected from the wind room is accurate and reliable.
Specifications
auto A/C compessor of this series are very popular in the whole world ,we are one of the best maker of this series in China !
air compressor,A/C compressor of this series are very popular in the whole world ,we are one of the best manufacturer of this series in China .We will give the best quality
and competitive price!
We have rich experience in foreign trade.
we can supply wide rang of products with excellent quality and perfect aftersales service, enjoy
high reputation from domestic and overseas OEM customers. We can also provide other parts of car air conditioner for various cars.we will improve our products constantly ,Sincerely welcome our newly and old
customer from home and abroad to establish longterm cooperation relations, getting the Mutual benefit
we will be pleased to supply any further information you require.
We are a professional heat exchanger, condenser, evaporator, fan and heat pump manufacturerin China, which has more than 15 years experience in HVAC area. Our products have been exported to Europe, USA, Japan and Middle East etc.
Axial fan Fetures:
1. The average working life of motors is more than 30000 hours.
2. The electrical motor uses the interior fuse protection dovice, safe and reliable.
3. The front louver can effectively prevent the rain dust entry.
4. The fashion design enables the large air volume, low noise and run stable.
5. The electrical motor uses the interior fuse protection dovice, safe and reliable.
6. The structure component is stamped by high quality steel sheet, stiffness well, weight light, appearance elegant and installation favorable
7. All motors in our factory have attained CE approval in Europe and CCC safety certificate in China.
8. The standard length of the electrical wire on the fan is 1.5m, ND we can also provide connection box to fan motors for clients' choice
For further information please contact me
Tel: +86 21 35324169*208
Fax: +86 21 35324166
| Product Model: | KHG1-30 | KHG1-35 | KHG1-40 | KHG1-45 | KHG1-50 | KHG1-60 |
| Product Spec | 12" | 14" | 16" | 18" | 20" | 24" |
| Motor(mm) | 120*20 | 120*20 | 120*22 | 120*22 | 120*24 | 120*24 |
| Power(W): | 45 | 70 | 130 | 200 | 350 | 500 |
| Speed(r/min) | 1300 | 1300 | 1350 | 1350 | 1250 | 1250 |
| Air Volume(m 3 /h) | 1080 | 2280 | 2880 | 3600 | 5700 | 8700 |
| Packing Size(CM): | 85.5*38*38.5 | 83*43*44 | 50*50*25 | 57*57*28 | 61.5*61.5*30 | 71*71*30 |
| Packing Quantity(PCS): | 5 | 4 | 1 | 1 | 1 | 1 |
| Loading QTY(PCS) | 1080/2520/2520 | 700/1400/1680 | 396/864/960 | 320/672/756 | 189/399/456 | 168/336/384 |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
