| Prod Model: |
HCEU-V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4"~12.5" |
| Model Number: |
Hceu-V |
| Type: |
Centrifugal Fan |
| OEM: |
Accept |
| Electric Current Type: |
AC |
| Blade Material: |
Plastic |
| Air Volume: |
350m³ /H~1850m³ /H |
| Speed: |
2100~2590 R/Min |
| Voltage: |
120V/230V |
| Power: |
69~250W |
| Certification: |
CE |
| Usage: |
for Air Conditioner |
Product Description

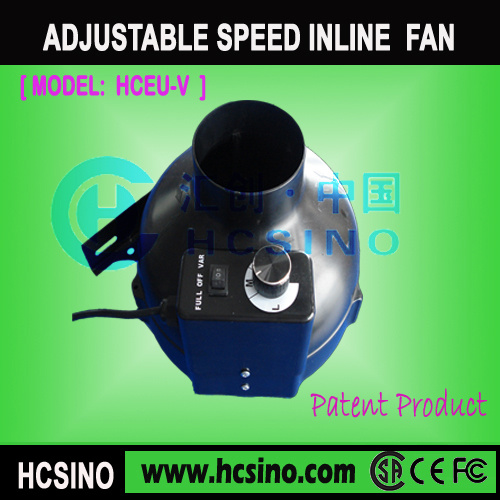

Ventilation fan/adjustable speed ventilation fan
1. Ventilation fan with a stepless speed controller(all- in -one machine)
2. Ventilating Fan Housing Material: Plastic
3. Typical sizes available: Φ 100; Φ 125; Φ 150; Φ 160; Φ 200; Φ 250; Φ 305; Φ 315
4. With certifications of CE, 3C, RoHS
5. Wo hold patent for it
It is used to transmit and strengthen the air flow inside a network of ventilation ducts.
The fan is equipped with ball bearing, enabling the installations to be mounted both horizontally and vertically. The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.
4. Accessories: It is possible to connect a variable speed controller, Providing the customer with variable airflow settinG.
5. Specific technical parameter:
|
Model |
Voltage |
Frequency |
Power |
Rotate |
Air Flow |
Pressure |
|
(HCEU-V) |
(V ) |
(HZ) |
(W) |
(R/Min) |
(M3/H) |
(Pa) |
|
Φ 100 |
120/230 |
50/60 |
69 |
2590 |
0~350 |
360 |
|
Φ 125 |
120/230 |
50/60 |
71 |
2535 |
0~440 |
350 |
|
Φ 150 |
120/230 |
50/60 |
100 |
2350 |
0~610 |
420 |
|
Φ 160 |
120/230 |
50/60 |
130 |
2580 |
0~680 |
430 |
|
Φ 200 |
120/230 |
50/60 |
190 |
2150 |
0~1050 |
600 |
|
Φ 250 |
120/230 |
50/60 |
190 |
2100 |
0 ~1100 |
550 |
|
Φ 305 |
120/230 |
50/60 |
250 |
2410 |
0~1810 |
650 |
|
Φ 315 |
120/230 |
50/60 |
250 |
2460 |
0~1850 |
680 |
