| Prod Model: |
ZYT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Content: |
≤ 0.1% |
| Working Pressure: |
≤ 0.4MPa |
| Cleanness: |
≤ Nas 6 Grade |
Product Description
Application:

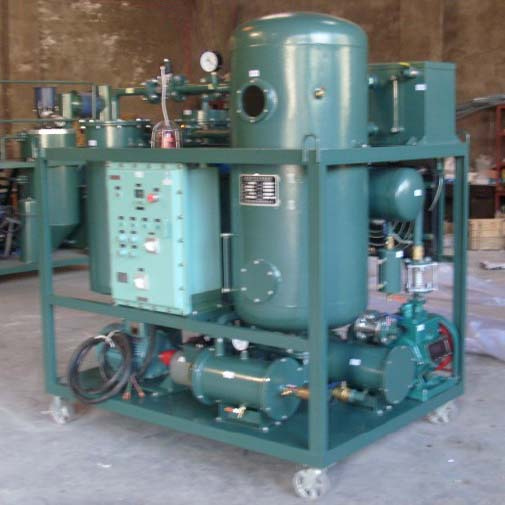

Series ZYT vacuum turbine oil purifier mainly be used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently break emulsification, separate water, gas, particles from oil. So that makes sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely. This equipment use a special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series ZY-T is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.
Features:
1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
7. Work online with stream turbine, hydraulic turbine.
Technical Parameters:
| Index Name | Unit | ZYT -10 | ZYT -20 | ZYT -30 | ZYT -50 | ZYT -100 | ZYT -150 | ZYT -200 | ZYT-300 |
| Flow rate | L/Min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
| Working vacuum | MPa | -0.06~-0.095 |
| Working pressure | MPa | ≤ 0.4 |
| Temperature range | ºC | 20 ~80 |
| Demulsifying value | min | ≤ 15/min(GB/F7035) |
| Water content | ppm | ≤ 80 |
| Gas content | % | ≤ 0.1 |
| Cleanness |
| ≤ NAS 6 grade |
| Power supply |
| 380V 50HZ 3Ph (As per user's option) |
| Working noise | dB(A) | ≤65~80 |
| Heating power | Kw | 12 | 15 | 18 | 24 | 45 | 60 | 72 | 84 |
| Total power | Kw | 14 | 17 | 20 | 27 | 48 | 66 | 81 | 97 |
| Inlet(Outlet) | mm | Φ25 | Φ25 | Φ25 | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 |
Chongqing Zanyo Electromechanical And Machinery Co., Ltd is located in Chongqing, China, the beautiful mountain city of. China. Chongqing city is called "the China filtration equipment & production base". ZANYO is a professional high-tech enterprise which insists on the specialized in the research, design, production, sale and service of oil filtration equipments for these years. Our new techniques for the "T" type evaporator and "S" type heater, thermal recovery system are very popular and we get very good feedback from customers. At the same time, we also design and provide the power equipments, oil testing equipments. Products are well sold at home and abroad and deeply favored by broad masses of clients!
To the company, we spare no effort to seek innovation and produce the stable performance, excellent products under the theory of "people-oriented, energy conservation, environmental protection, customer first, the benefit of future generations". Over the years, we win favorable comments in this circle of filtration. The leading products are transformer oil filtration machine, insulating oil purifier, lubricating oil purification system, hydraulic oil filter machine, turbine oil treatment machine, used motor oil recycling system and other industrial oil filtration machines. We also can provide the oil testers for our customers. The products are widely used in electric power, plant, mining, petroleum, chemical, metallurgy, waste disposal and other industries.
Since the establishment of the factory, we engaged in interior market for nearly ten year. From 2012, we exported the machines to foreign markets. We ZANYO factory always adhere to the basic principles: High quality machinery production.
Culture:
Our purpose: Quality first, Credibility first, Service first", to reach energy-saving emission reduction and win-win situation.
Our value: Users first, Brand success, Repay society
Our belief: Earnest, Innovation, Brave pursuit, Trustworthiness
Our dream: To endeavor to accomplish greater technological breakthrough; To endeavor to supply more environmental, more safely, and more efficient products and schemes; To endeavor to perform to the best and repay society.
Welcome domestic and international old and new customers to come to discuss business, to guidance, and we sincerely look forward to the parties and knowledgeable people work together to create brilliant!
Our products list as following:
ZYS-high effective vacuum transformer oil purification machine
ZYD-I, ZYD-II Double stages insulating oil purifier
ZYM-Mobile/trailer type transformer oil treatment equipment
ZYAD-Air dryer for drying electric equipments
ZYT-Turbine oil filtration machine
ZYJ-Coalescence and separating oil filter
ZYL-Lubricating oil purifier/hydraulic oil treatment device
ZYK- Phosphate ester fire-resistant oil purification machine
ZYR-Transformer oil regeneration device
ZYP-Plate pressure oil filter
ZYJL-Portable oil purifier
ZY-IIJ-II-BDV oil tester, insulating oil dielectric strength tester
ZYMMT-Oil moisture sensor, water content sensor
ZYRS-Engine oil regeneration system
ZYL-D- oil decoloring machine/oil recycling machine
