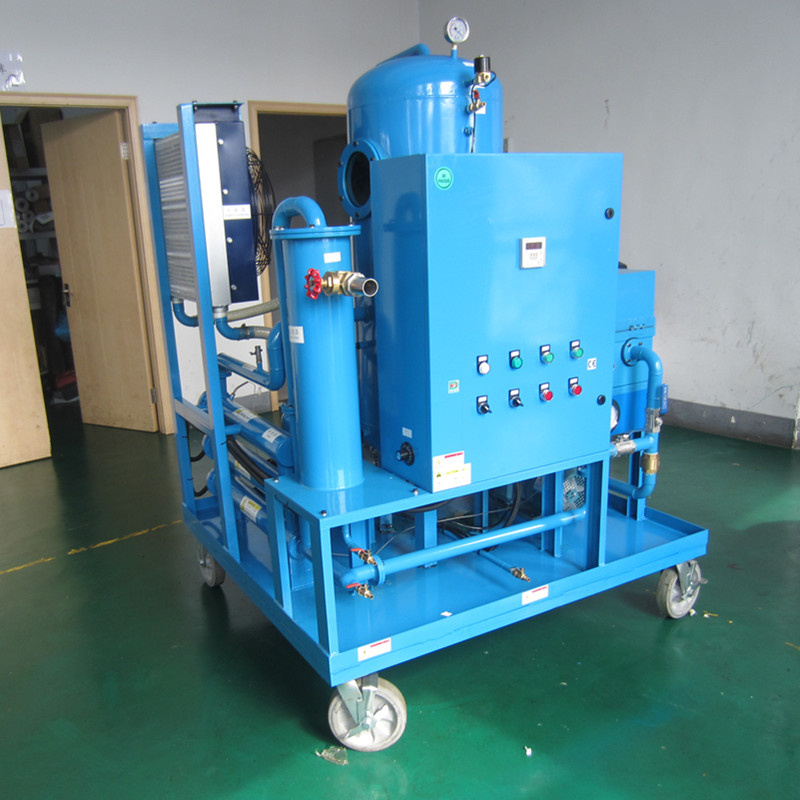

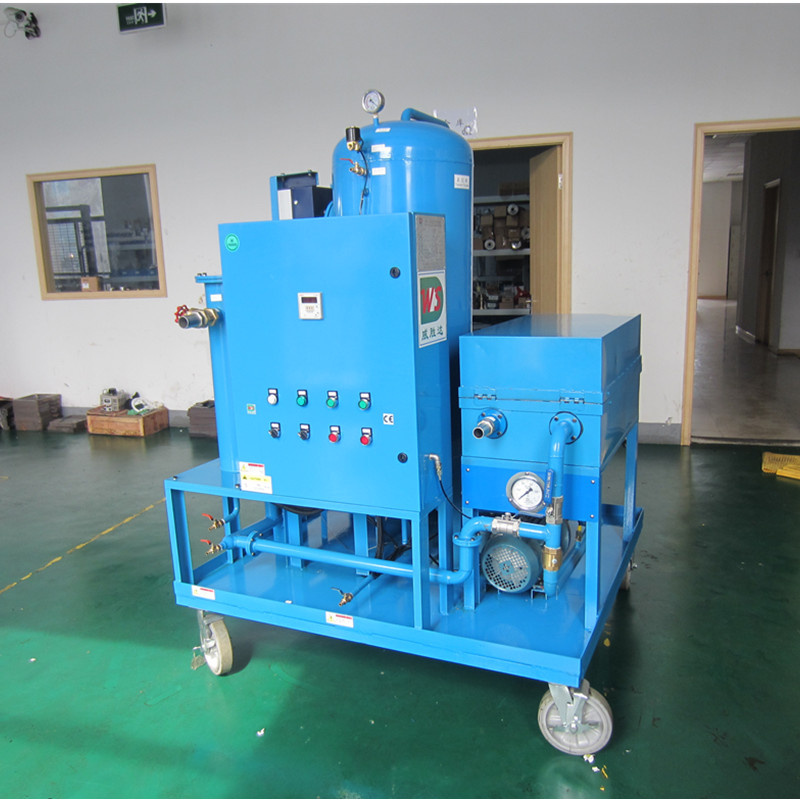

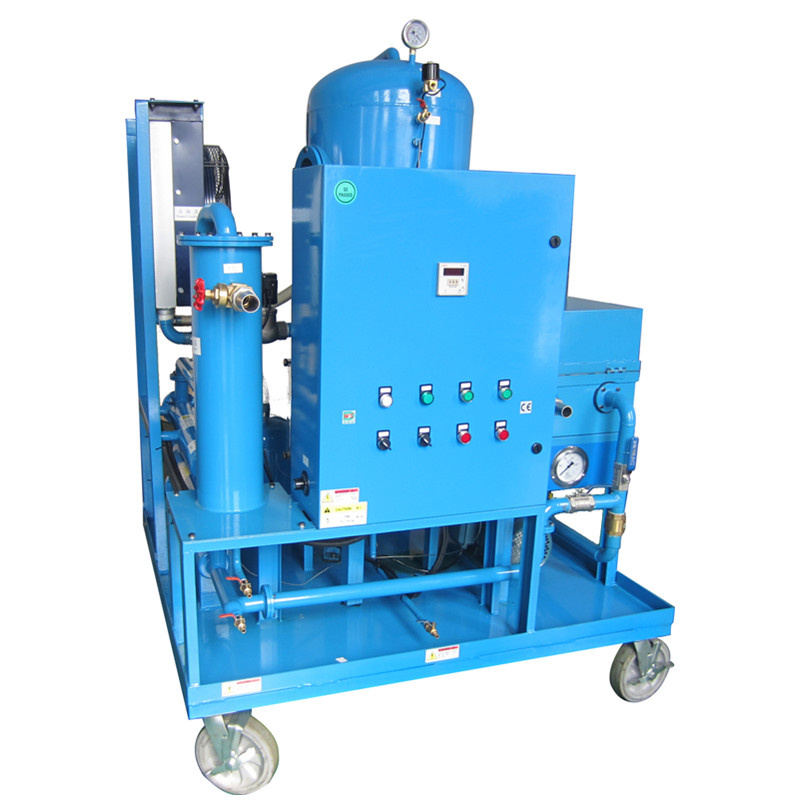

| Prod Model: |
WZJC-6KY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electrical Heating Power: |
36kw |
| Total Power: |
43kw |
| Weight: |
1150kg |
| Dimension: |
1450*1390*1800(mm) |
| In/Outlet Size: |
Dn42 |
| Working Vacuum: |
-0.06-0.099MPa |
| Working Pressure: |
Less Than or Equal to 0.3MPa |
| Temperature Range: |
20-70 |
| Working Noise: |
Less Than or Equal to 70 dB |
| Equipment Installation: |
Ky, Bf, by, Kf |
| Folw Rate: |
97 L/Min |
Product Description

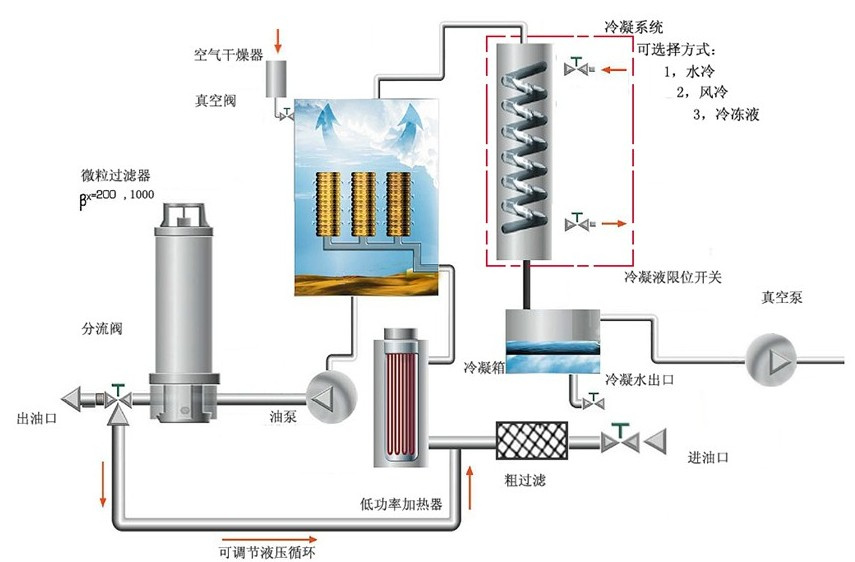

Rationale:
WZJC series oil filter inhales the contaminated oil by the vacuum suction, through the heater to a suitable temperature, and then dispersed to the vacuum through the fluid diffusion apparatus to increase the exposed area of the oil, translating the water into steam, the volatilized steam is indrafted by the vacuum pump and then discharged through a condenser, the oil which has been removed the moisture returns to the tank through the filter.
Technical characteristics:
dewatering, degassing, multi-level (coarse, medium, fine) filter
100% removal of free water, 80 to 90% of dissolved water
100% removal of free water, 90% of dissolved gas
long-running high stability, long vacuum pump oil replacement period
light and flexible, easy to move, can be used in any environment
Technical Specifications
| Specifications | Item | WZJC-2KY(BF,BY,KF) | WZJC-3.5KY(BF,BY,KF) | WZJC-6KY(BF,BY,KF) | WZJC-9KY(BF,BY,KF) | WZJC-12KY(BF,BY,KF) |
| Rate of Flow(L/min) | 30 | 58.5 | 97 | 150 | 200 |
| Electrical Heating Power(KW) | 18 | 18 | 36 | 72 | 72 |
| Total Power(KW) | 20.35 | 23.4 | 43 | 64.3 | 86 |
| Inlet(Outlet) Pipe Size(mm) | DN25 | DN32 | DN42 | DN50 | DN50 |
| Weight(Kg) | 930 | 940 | 1150 | 1570 | 1980 |
| Dimension(L*W*H)(mm) | 1500*1080*1500 | 1500*1080*1500 | 1450*1390*1800 | 2060*1800*1950 | 2060*1900*2010 |
| Working Vacuum(Mpa) | -0.06~-0.009 |
| Working Pressure(Mpa) | ≤0.3 |
| Temperature Range(ºC) | 20~70 |
| Work Noise(Db) | ≤70 |
| Equipment Installation | KY(Open Movable Type),BF(Closed Stationary Type), BY(Closed Movable Type), KF(Open Stationary Type ) |
| Precise Filtration | Precise filter element/frame filter paper(optional) |
| Optional Item | Coalescence separation, disacidity filter element, in-line particle counter, moisture sensor, precise filtration by filter element, precise filtration by frame, domestic oil pump, imported oil pump, domestic vacuum pump, imported vacuum pump
|
