| Prod Model: |
SDB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motive Force: |
Electric power |
| Type: |
Conditioner |
| Usage: |
Environmental Protection |
| Flow Rate: |
1 - 12 Gpm |
| Lamp Power: |
12 - 55 W |
| Voltage: |
110-120V/60Hz, 220-240/50Hz |
| Inlet/Oultet Port: |
1/4" 1/2" 3/4" |
| Chamber Material: |
Stainless Steel 304 |
Product Description

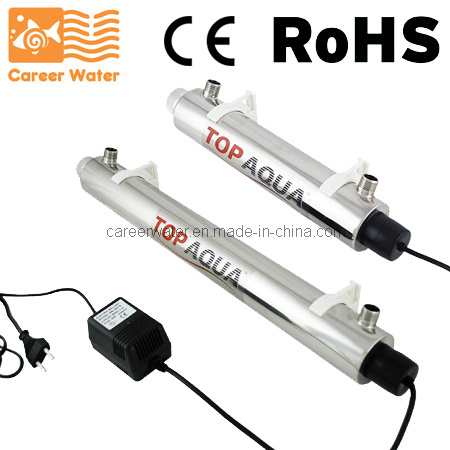

The Career Water UV disinfection system is an advanced Ultraviolet Water Disinfection System that provides disinfected drinking water for years to come and has been designed with high quality construction and innovative features.
Sterilization of water using ultraviolet light at a wavelength at 254nm is a chemical free way of destroying the DNA of microorganisms rendering them unable to replicate or cause infection. The flow chamber design utilizes the energy from the ultraviolet Lamp evenly across the water flow. Installation of the system is straight forward and simple. Maintenance includes changing the lamp once a year and cleaning the quartz sleeve periodically.
Features
1. Specially designed and tested lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (8000 hours) to ensure continuous purification
2. High quality and durable Stainless steel chamber to prolong life and eliminate ultraviolet light degradation
3. The system is easy to maintain and service
4. Visually displays the remaining lamp life and will go into alarm if the lamp fails to notify the homeowner. Audible alarm power source is an optional
5. Maximum utilizes ultraviolet wave by chamber flow designed
6. Tested and certificated by CE and RoHS
Specification
Conditions for Use
Following table outlines the basic parameters that need to be test and treated should your water fall outside these parameters. An additional 5 micron sediment and housing is recommended as a minimum pretreatment to guard against any large particles that may mask the ultraviolet light and also assist with startup procedure.
Lamp life: 8000-9000 hours of operation, approximate 12 months of continuous service.
General operation and maintenance:
To clean the quartz sleeve every 6-12 months, replace every 24 months.
Replace UV lamp every 12 months to keep best sterilization performance.
