| Prod Model: |
KSAB29 Series |
| Markets: |
North America,Oceania,Eastern Asia,Western Europe |
| Size: |
38X38.5X39.5mm |
| Type: |
Travel |
| Power Source: |
Electric |
| Quick Charging Function: |
With Quick Charging Function |
| Charger Cable Length: |
6 to 7.9 Feet |
| Over-Current Protection: |
With Over-Current Protection |
| Display: |
Without Display |
| Color: |
Black |
| Socket Type: |
For USA/Canada |
| Customized: |
Customized |
| Compatible Brand: |
Seanen |
Product Description

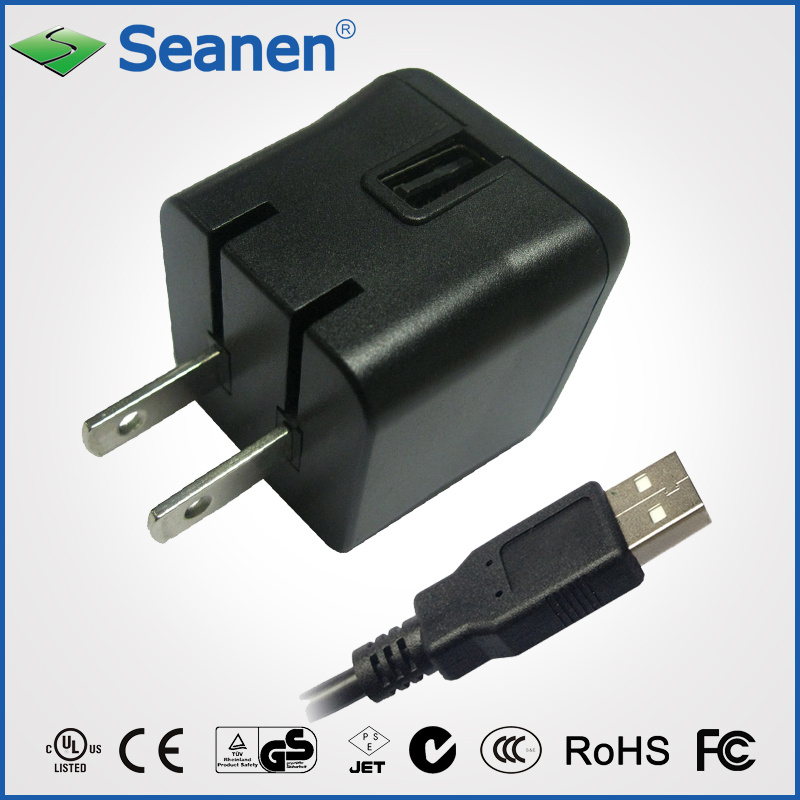

USB travel charger for Tablet, Mobile Devices1) New design, Extra small size
2) 5VDC 2A
3) USB inlet, foldable pin
4) High efficiency: VI
Specification1) Input: 100- 240 VAC 50/60Hz
2) Output: 5VDC 2A (0.1-2.1A are available)
3) Constant voltage, constant current
4) USB inlet
5) AC pin: Foldable type and fixed type are available
6) New design, Extra small size
7) Ripple and noise: < 120mV
8) CEC level VI
9) Compliant with RoHS, PAHs, REACH
10) Color: Black and white are available
Certificates and approvalsUL/cUL, GS, CE, BS, SAA, C-tick, CB, FCC, PSE
ProtectionsShort circuit protection
Over voltage protection
Over current protection
Envionmental requirementsOperating Temperature: 0-40
Storage Temperature: -20-80
Operating Relative humidity: 10-90% RH
| SPECIFICATION |
| Input | Input voltage | 90-264VAC |
| Frequency range | 47-63Hz |
| Inrush current | 50A Max, 120VAC at max load, 80A Max 240VAC at max load |
| Leakage Current | 0.25mA max |
| Energy efficiency | VI |
| Output | Voltage | 5VDC |
| Current | 1~2.1A |
| Power | 10W |
| Load regulation | +/-5% |
| Hold-up time | 10ms minimun at 115V AC / full load |
| Connector | DC cable | 2468 2C 6FT or others |
| DC plug | Per customer request |
| Protections | Short circuit protection | Yes |
| Over voltage protection | Yes |
| Over current protection | Yes |
| Envionmental requirements | Operating Temperature | 0-40° C |
| Storage Temperature | -20-80oC |
| Operating Relative humidity | 10-90% RH |
| Others | MTBF | 50K hours at 25' C |
| Led indicator | Optional |
| Size | |
| Safety Approvals | UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/EMC/FCC |
| Standards | UL60950-1, IEC/EN60950-1, AS/NZS60950-1, J60950, FCC part 15 class B |
| Compliance | RoHS, PAHS, REACH, WEEE |
Established in 1999, Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers and LED drivers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.
Our factory covers more than 15, 000 square meter of production space, staffed with more than 1, 000 skilled employees, with a capacity of 50K units per day. Our highly vertical integration manufacturing covers from moulding to plastic injection, metal parts, SMD, PCB assembly, aging test, ICT test etc, so as to ensure the stable high quality, competitive price and punctual delivery.
Our standard products cover the full range items from 0.5W to 120W output power, and safety approved including UL/cUL, TUV-GS, CE, C-TICK, PSE, K-mark, CCC, EMC and FCC etc. Our products compliant with CEC V, RoHS, PAHs, REACH and WEEE., we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us. Seanen, your reliable power partner.
