| Prod Model: |
GAR-138 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
USB |
| Installation: |
External |
| Supply Volta: |
5vdc |
Product Description

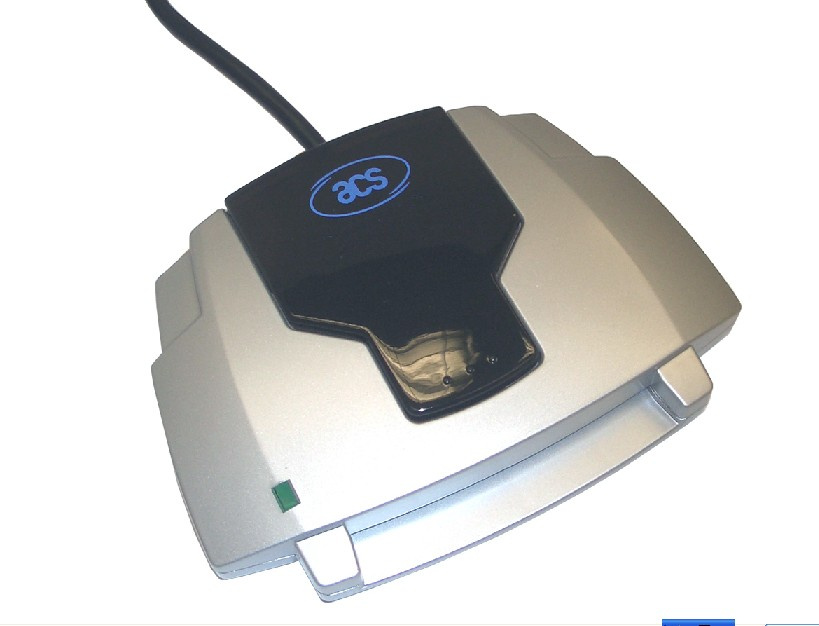

The ACR38 Smart Card Reader Series combines sophisticated technology and modern design to meet stringent requirements in smart card-based applications, such as payment systems and electronic identification, where a high level of security has increasingly been deemed essential.
Now compliant with the CCID specification, the ACR38 Smart Card Reader offers a plug-and-play solution that eliminates the need for driver installation and driver-system compatibility assessment. Its USB interface facilitates communication between a computer and a smart card very easily, allowing for a seamless implementation of smart-card based applications in a PC environment.
The ACR38 is compliant with ISO-7816 and EMV Level 1 specifications. It supports ISO-7816 Class A, B and C (5V, 3V and 1.8V) cards, including all microprocessor cards with T=0, T=1, protocols, as well as most of the popular memory cards in the market.
Application
E-Government
E-Banking and e-Payment
E-Healthcare
Public Key Infrastructure
Network Security
Access Control
Loyalty Program.
|
Dimensions |
Spaceship Casing: 73.0mm (L) x 96.5mm (W) x 19.0mm (H)
Bridge Casing : 80.0mm (L) x 71.5mm (W) x 80.0mm (H) |
|
Interface |
USB 2.0 full speed |
|
Supply Voltage |
Regulated 5V DC |
|
Supply Current |
max. 50mA |
|
Operating Temperature |
0-50C |
|
Operating Frequency |
4 MHz |
|
MBTF |
500,000 hours |
|
Smart Card Interface Support |
ISO-7816 Class A, B and C ( 5V, 3V, 1.8V ) |
|
Compliance/Certifications |
EN 60950/IEC 60950, EMV 2000 Level 1, PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed Microsoft WHQL: 2000, 2003, XP, Vista, 2008, 2008 R2, 7 |
|
Operating System Support |
Win98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008 Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64 Mac Linux |
Grand-Access is a high-tech enterprise integrated with development, manufacture and marketing of security products, which was established in Shenzhen, China in 2005. For our business goal, development strategy and service concept, Grand-Access has been enjoying good reputation both in China and overseas.
Our product range currently consists of biometric, access control, smart card system products. Among others, featuring high quality standards, stylish yet highly functional designs, competitive prices and good service, these various series have been successfully exported to more than 50 countries all over the world, and really get a good Reputation.
Grand-Access has a galaxy of high-level technical, management and marketing personnel with hard-working, modest and honest quality. With a R&D center, specialized factory and owning more than 4000 square meters workshops and strong client service capability, we really have the confidence to make great achievements continuously. And we also hope to be your good agent in China to help you to sourcing interested models. With our good service, best quality products and competitive price, we are on faith to help you capture your market.
Grand-Access people are looking forward to creating miracles through win-win cooperation with international partners in the world trade.
