| Prod Model: |

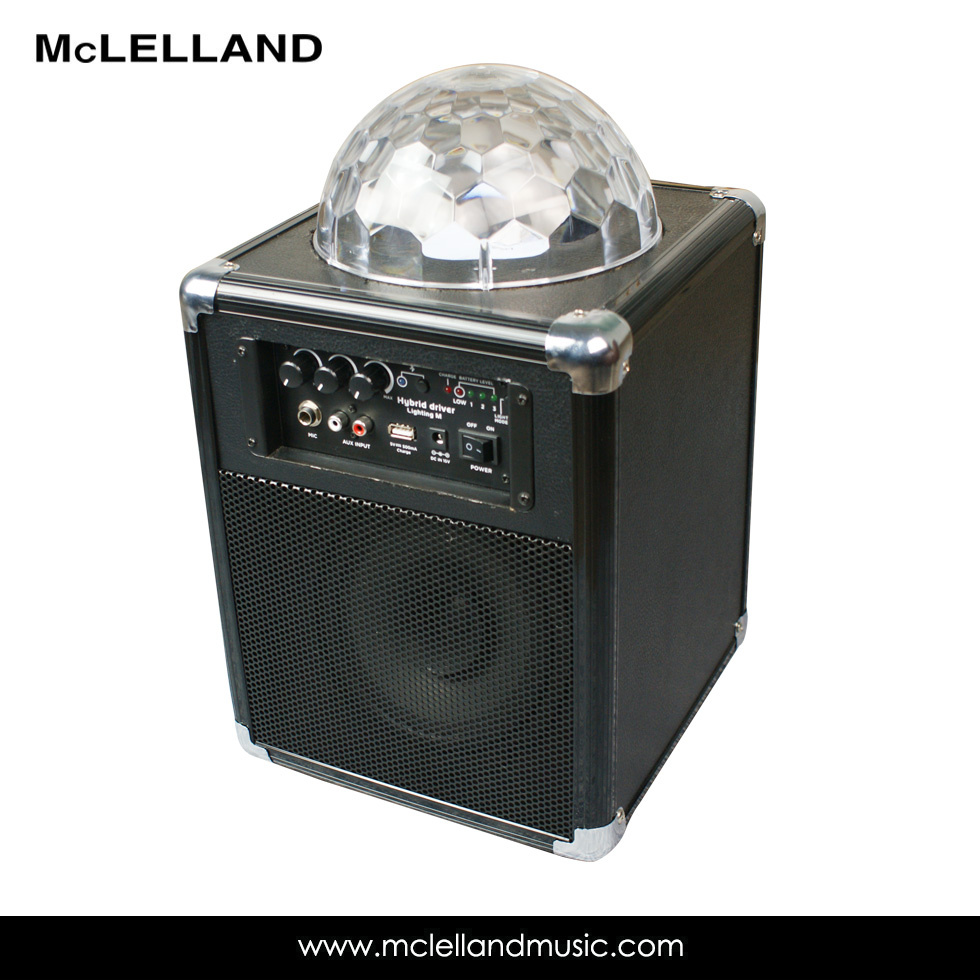

Hybrid Driver M Lighting |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Bluetooth Speaker |
| Amplification Type: |
Active |
| Speaker Material: |
Wood |
| Usage: |
Home Theatre System |
| Sound Channel: |
Single Channel |
| Special Function: |
USB Disk Support |
| Chargeable: |
Non-rechargeable |
| SNR: |
81-90dB |
| Display Type: |
Without Display |
| Compatible Product: |
Universal |
Product Description
SPECIFICATION
Hybrid Driver Lighting
Power Adapter: 16V DC,2ACenter pin positive, tip negative M/S;AC100-240V, 50/60 Hz L
Output Wattage: 10W 1%THD (M/S) 15W 1%THD (L)
Driver: 4 ohm:4"-S 6.5'-M/L
Frequency Response: (Aux) 85HZ-18KHZS/M/L
Sensitivity:-22DB, Aux 1V Output
Noise S/N :>80DB
Mic Input: 6.3 PHONEJACK
Aux Input : RCA
Microphone Volume Control
Aux Input Volume Control
Master Volume Control
Power ON/OFF Switch
Supported Bluetooth Profile: A2DP
MP3 PALY :ONLY L
5V USB Charge: ONLY M/S
Bluetooth Range: Up to 15M
*Bluetooth range is affected by walls, obstructions, and movement. Best performance is achieved in a wide
open area
Light Mode: There are three modes to select from for how the
strobe lights react to the music.
Beat = the light reacts to the beat of the music.
Party = dome light spins and changes color whether there
is music playing or not.
Off = the light is off and the lights in the dome are not
spinning.
The dome light can spin and react to the music playing
(depending on the Light Mode that is selected).
Hybrid Driver Lighting L Dimensions(W×H×D):350×600×250mm
Hybrid Driver LightingL Weight: 10.0Kg
Hybrid Driver Lighting M Dimensions(W×H×D):335×490×345mm
Hybrid Driver LightingM Weight: 4.5Kg
Hybrid Driver LightingS Dimensions(W×H×D):220×410×230mm
Hybrid Driver LightingS Weight: 3.0Kg
