| Prod Model: |
MINIDX3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
External |
| Card Slots: |
All in 1 & Multi in 1 |
| Interface: |
USB |
Product Description

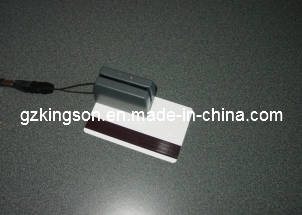

This dimensions of the USB mini card reader is L 1.6 x W 0.7 x H 1.2 inch ( L 4.7 x W 2.1 x H 3.1 cm ), card reader track, track 1, track 2, track 3.
Applications
Any movable data collection (Trade shows, Racing events)
Point of sales (Credit card data collection)
Attendance (Student ID, Membership card)
Law enforcement (DMV card)
Electrical
Battery Power 3.7V 220 mAh Rechargeable Battery
Working Temp 0~55 Deg. C
Humidity 10~90% Relative
Storage Temp -10~55 Deg C
Communication Standard USB
Specification
512 K bytes memory for storing 3000 records of data
3-track version can collect all three tracks data
Time stamp shows date and time with every transaction
Password Protection defends user
Auto Power Off is set by user
Transfer data to MSR206 and MSR606 directly
Data downloadable to the computer via USB
Bi - Directional
Read ISO format and special format are available upon request
No programming required, easy to use as 1- 2- 3
Dimensions L 1.6 x W 0.7 x H 1.2 inch ( L 4.7 x W 2.1 x H 3.1 cm )
Net Weight 1.2 oz
Performance
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Time stamp
Date: YY/MM/DD ( 2007/03/15 => Mar. 15, 2007 )
Time: HH: MM: SS (19: 08: 35 => 7: 08: 35pm)
Week: Sun. =>1, Mon. =>2, Tue. =>3 Wed. =>4,
Thurs. =>5, FRI. =>6, Sat. =>7
Example: 2002/04/12 19: 08: 35 6 =>
April 12, 2002, 7: 08: 35pm, Friday
Coercive force Read 300-4000 oe Mag. Card
Card thickness 0.76-1.2mm
Read Speed Card speed through the unit may vary from 3 ~50 IPS
Error rate Read < 0.5% Write < 0.8%
Head life Min. 1000K swipes for both read/write head
Rate: CE, FCC, RoHS
