Ultra-Compact 4 Channel Stereo Headphone Amplifier
| Price: |
US $ 5.0/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SPW-032 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
Type 1/4" Trs Connector, Stereo |
| Output: |
Type 1/4" Trs Connector Stereo |
| Type: |
Mini Amplifier |
| Usage: |
AV |
| Used For: |
Professional |
| Tube Type: |
Tube Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
3.1 |
| Output Number: |
4 |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Voltage: |
12V |
Product Description
Ultra-compact 4-channel stereo headphone amplifier for all types of headphones.
Ultra-compact headphone amplifier system for studio and stage applications
4 independent stereo high-power amplifier sections
Highest audio quality with virtually all types of headphones even at maximum volume
Phones Level control per channel
DC 12 V adapter included
High-quality components and exceptionally rugged construction ensure long life

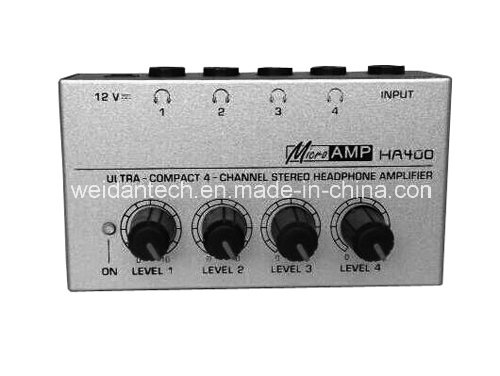

The super-compact, flexible HA400 can amplify up to 4 pairs of headphones and up to 4 independent volumes all at the same time.
The flexible HA400 contains 4 high-power stereo amplifiers that maintain the highest sonic quality even at maximum volume levels. Ultra low-noise 4580 operational amplifiers are included for outstanding audio performance. These are the same op amps found in full-size audio equipment.
SPECIFICATIONS
MICROAMP HA400 Headphone Amp
Input
Type: 1/4" TRS connector, stereo
Impedance: 100 kOhms
Max. input level: +15 dBu
Headphone Outputs
Type: 1/4" TRS connector, stereo
Impedance: approx. 80Ohms
Max. output level: approx. 40mW in 100Ohms
Power Supply
(external power supply, 12V / 150mA)
Power range: USA/Canada (120V~, 60Hz), China (220V~, 50Hz), U.K./Australia (240 V~, 50Hz), Europe (230V~, 50Hz), Japan (100V~, 50/60Hz)
Dimensions
Dimensions (HxDxW): approx. 1-5/6" x 2-1/4" x 4-1/16", (approx. 46.5mm x 57.2mm x 103.6mm)
Weight: approx. 0.38lb. (190g)
