| Prod Model: |
UL20567 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CSA,Reach,Reach,Phas |
| Color: |
Brown,Red,Orange,Blue,Purple,Gray,Ect. |
Product Description
Specifications
1. Audio&Video cable
2. PUR jacketed
3. Executive Standard: UL758 UL1581 CSA22.2.
4. 214500, LL210593.

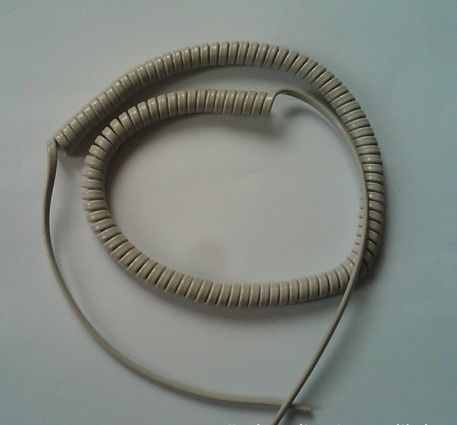

Audio&Video cable
Product Description:
1) Tinned, annealed, stranded or solid copper conductor.
2) PP, PE insulation, PUR jacketed.
3) Rated temperature: 60° C. Rated voltage: 30volt.
4) Passes UL VW-1 & CSA FT1 vertical flame test.
5) Executive Standard: UL758, UL1581, CSA22.2.
Applications:
For internal wiring of computer, audio & video equipment.
|
UL Style& CUL Type |
Cores |
Conductor |
Insulation
Thickness |
Nom.Dia |
Shield Coverage |
Jacket Thickness |
Overall
Dimeter |
Conductor
Resistance at 20°C |
|
AWG |
No/mm |
mm |
mm |
% |
mm |
mm |
Ω/KM |
UL20567
CUL
(Stranded) |
2C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65 |
0.76 |
3.20 |
381.00 |
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65 |
0.76 |
3.40 |
239.00 |
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65 |
0.76 |
3.60 |
150.00 |
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65 |
0.76 |
3.80 |
94.20 |
|
22 |
17/0.16 |
0.23 |
1.30 |
>=65 |
0.76 |
4.20 |
59.40 |
|
20 |
21/0.178 |
0.23 |
1.50 |
>=65 |
0.76 |
4.60 |
36.70 |
|
18 |
34/0.178 |
0.23 |
1.80 |
>=65 |
0.76 |
5.20 |
23.20 |
|
16 |
26/0.25 |
0.23 |
2.10 |
>=65 |
0.76 |
5.80 |
14.60 |
UL20567
CUL
(Stranded) |
3C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65 |
0.76 |
3.40 |
381.00 |
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65 |
0.76 |
3.50 |
239.00 |
|
26 |
7/0.16 |
0.23 |
1.00 |
0.65 |
0.76 |
3.80 |
150.00 |
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65 |
0.76 |
4.00 |
94.20 |
|
22 |
17/0.16 |
0.23 |
1.30 |
>=65 |
0.76 |
4.40 |
59.40 |
|
20 |
21/0.178 |
0.23 |
1.50 |
>=65 |
0.76 |
4.80 |
36.70 |
|
18 |
34/0.178 |
0.23 |
1.80 |
>=65 |
0.76 |
5.50 |
23.20 |
UL20567
CUL
(Stranded) |
4C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65 |
0.76 |
4.80 |
381.00 |
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65 |
0.76 |
5.10 |
239.00 |
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65 |
0.76 |
5.30 |
150.00 |
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65 |
0.76 |
5.50 |
94.20 |
|
22 |
17/0.16 |
0.23 |
1.30 |
>=65 |
0.76 |
6.00 |
59.40 |
|
20 |
21/0.178 |
0.23 |
1.50 |
>=65 |
0.76 |
6.50 |
36.70 |
UL20567
CUL
(Stranded) |
5C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65 |
0.76 |
5.00 |
381.00 |
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65 |
0.76 |
5.30 |
239.00 |
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65 |
0.76 |
5.60 |
150.00 |
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65 |
0.76 |
5.80 |
94.20 |
|
22 |
17/0.16 |
0.23 |
1.30 |
>=65 |
0.76 |
6.40 |
59.40 |
UL20567
CUL
(Stranded) |
6C |
30 |
7/0.100 |
0.23 |
0.80 |
>=65 |
0.76 |
5.30 |
381.00 |
|
28 |
7/0.127 |
0.23 |
0.90 |
>=65 |
0.76 |
5.60 |
239.00 |
|
26 |
7/0.16 |
0.23 |
1.00 |
>=65 |
0.76 |
5.90 |
150.00 |
|
24 |
11/0.16 |
0.23 |
1.10 |
>=65 |
0.76 |
6.20 |
94.20 |
