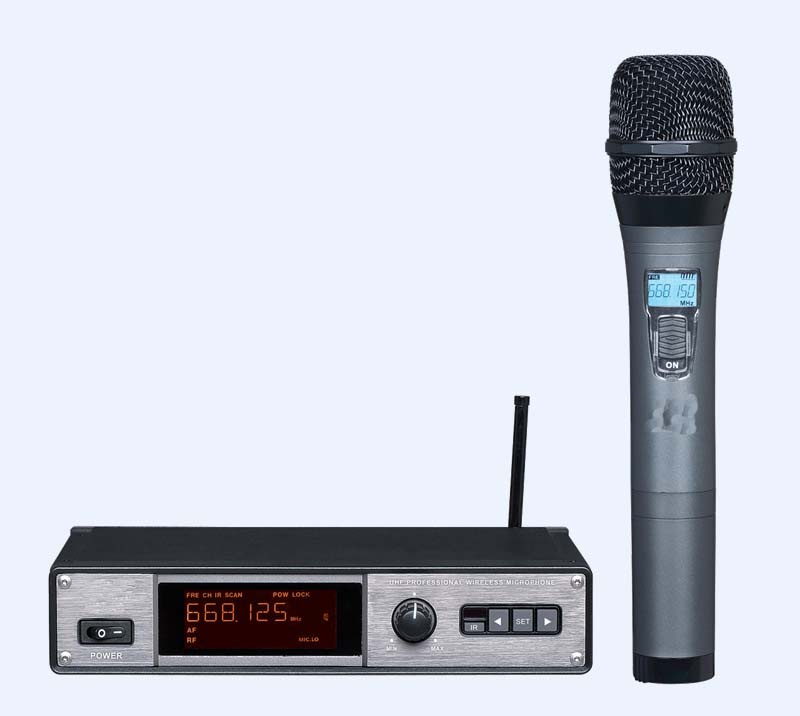

UHF Wireless Microphone Series (AIU-1011)

Name: UHF Wireless Microphone Series (AIU-1011)
Brand: ec-portal.com
SKU: 674784731
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T

Send Inquiry

Showroom Product Company Profile

Prod Model:	AIU-1011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Signal Transmission:	Wireless
Application:	Amplify
Directivity:	Wireless Microphone
Transducer Principle:	Wireless Microphone
Sound Field Force:	Wireless Microphone

Product Description

Receiver:
*Carrier Wave Frequency Range: UHF 600~870MHz
*Oscillation Mode: Quartz Controlled Fixed Frequency
*Carrier Wave Stability: 10PPM
*Sensitivity: -105dB @ sinad=12dB
*S/N Ratio: > 105dB
*T. H. D: < 0.5% @1kHz
*: Spurious rejection: 75 dB typical
*: Image rejection: 85 dB typical
*Frequency Responses: 40Hz~18kHz
*Working distance: 200 feet
*Squelch Control: Dual-squelch circuit
*AF Output Impedance: 2.2kΩ
*Max. Output Level: Balance: 0-400mv. Unbalance: 0-200mv
*Display: LCD
*Power Supply: External DC Power Supply, 0.35A, 12~18V DC
*Output Connector: 2 XLR Balanced Socket. Unbalance TRs, 6.35mm Socket

Our company has more than 7 years' experience in manufacturing and export electronic products and musical instruments products. We can design, produce and sell various kinds of wired&wireless microphone, PA amplifiers, guitar&bass amplifier, power mixer, handy megaphone, horn speaker and musical instruments products, such as drum set, guitar, violin, double bass, electric keyboard, music stand and wind instruments.
