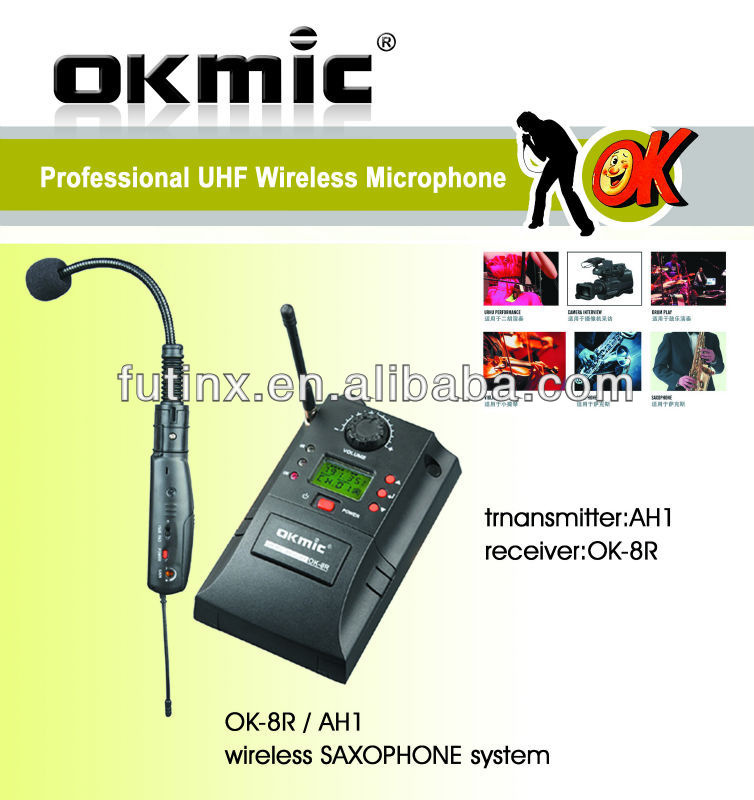

| Prod Model: |
OK-8R/AH1 |
| Application: |
Recording |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Sound Channel: |
Mono |
| Transducer Principle: |
Condenser Microphone |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
| Style: |
Interview Microphone |
Product Description
Specifications
UHF/PLL wireless guitar system,32/64 frequency for free selection and LCD display,Noise locked+pilot tone locked,ACT function
UHF WIRELESS GUITAR SYSTEM RECEIVER:
Frequency range:500-980MHz(6 groups)
Band width:12MHz/24MHz,32/64 channels for free selection
ACT function
With LCD digital display
With PLL combined technology
Frequency response:50-16000Hz
Frequency stability:±3ppm
S/N ratio:>105dB(12dB S/N AD)
T.H.D:<0.5%@1KHz
Noise locked+pilot tone Locked
Audio output voltage:-12dB
Input power voltage:DC 3V 450mA
Battery type:AA 1.5V Alkaline Battery
Operating time: :≥6h
TRANSMITTER:
Frequency range:500-980MHz(6 groups)
Band width:12MHz/24MHz,32/64 channels for free selection
ACT function
With PLL combined technology
Frequency stability:±3ppm
RF output power:5mW
Squrious rejection:<-60dBc
Max.deviation range:±45KHz
Frequency response:50-16000Hz
T.H.D:<0.5%@1KHz
Sensitivity selection:0dB or -10dB
FU-6T:90°straight plug
FU-7T:135°bended plug.
Battery type:AAA 1.5v Alkaline Battery
Operating time:≥6h
Dimensions:(L)125X(W)78X(H)43mm
Weight(with the batteries):205g
