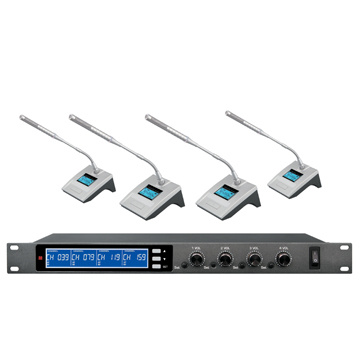

UHF Infrared Frequency Wireless Microphone One to Four (BK-8404)

Prod Model:	BK-8404
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Style:	Gooseneck Microphone
Application:	Meeting
Signal Transmission:	Wireless
Directivity:	Uni-direction
Sound Channel:	Mono
Transducer Principle:	Electrodynamic Microphone
Sound Field Force:	Pressure Differential Type
Wireless Technology:	UHF
Output Impedance:	50-1000Ω

Product Description

Feature:
Functional and easy operation, wonderful design
Case: EIA(1U standard model)
Channels number: A/B/C/D715-765MHz for a channel of 40 DOT frequency
Material of case: Metal
Display: RF signal and DOT Shown in LCD
Each channel have 50 frequencies to use
4 channel mix XLR output
Also can match with handheld, lavilier, headset to use
Trasmitter with 1.5V AA battery
6 sets can use at the same time

Parameter:

Frequency range	UHF715~765MHz
Modulation mode	FM
Frequency interval	40MHz
Channel	160
Channel interval	250MHz
Frequency stability	±0.005%
Dynamic range	100dB
Max frequency deviation	±45kHz
Frequency response	80Hz~18kHz(±3dB)
SNR	>105dB
Distortion	≤0.5%
Working temperature	-10ºC±40ºC
