| Prod Model: |
BU-880 |
| Markets: |
North America,Eastern Europe,Southeast Asia |
| Channels: |
8 *64channels |
| Frequency Range: |
500-900MHz |
| Type: |
Wireless Handheld Microphoe |
| Material Microphone: |
Metal |
| Size Of Receiver: |
480*220*88mm |
| Monitor: |
Single Monitor for Each Channel |
| Signal Transmission: |
Wireless |
| Application: |
Meeting |

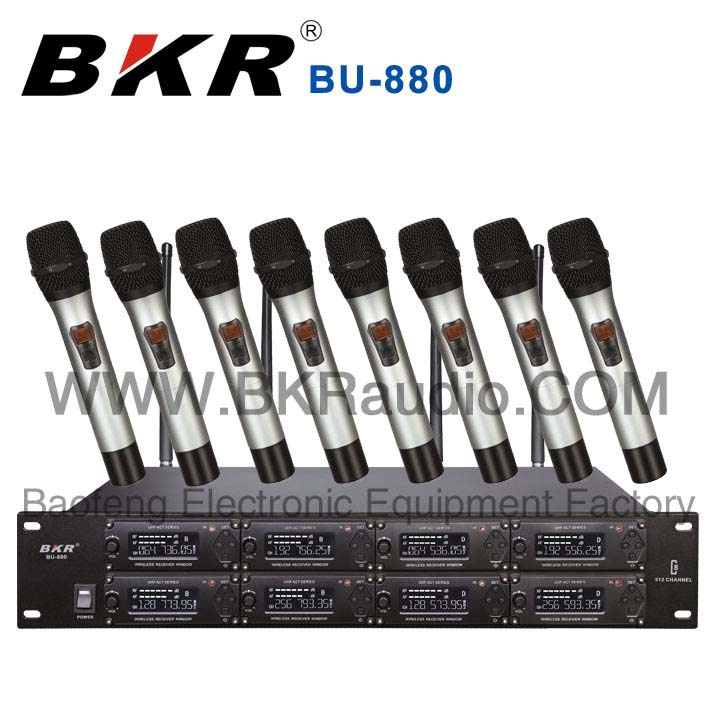

Product Description
1. Eight channels receiver.
2. Oscillation: PLL synthesized.
3. IR automatic frequency technology is adopted. Each channel has 64 optional frequencies, stepping up/down by 0.25MHz.
4. Carrier frequency: UHF 500MHz-900MHz.
5.5 sets can be used at the same time. That means 5 receivers and 40 transmitters can be used at the same meeting.
6. LCD screens on the receiver will display working channel, working frequency and signal level. Each screen will display informations of One single channel.
7. On the receiver, each channel has an individual LCD screen, IR signal window, selecting button and power switch.
8. Using 4 rubber antennas for receiving brings a better appearance and anti-interference ability.
9. There are 2 blanced output and 1 unblanced output in the back-panel, suitable for linking up with other audio equipments.
10. Microphone power consumption is 80mA. It can work constantly for 8 hours.
11. Working distance: Open environment: 80-100 meter. Complicated environment: 50-80meter.
12. It's suitable for various kinds of conference and performance occasion.
Parameter:
Channel number: 8
Oscillation Mode: PLL synthesized
Modulation Mode: FM
Carrier Frequency Range: UHF 500~900MHz
Frequency Stability: +0.001%
Max. Deviation Range: +50kHz
S/N Ratio: > 105dB
T. H. D: < 0.5%@1kHz
Sensitivity: 1.2/UV@S/N=12dB
Power Supply: DC 12~17V
Audio Output: Independent: 0-400mV
Mixed: 0-300mV
