UGO Digital Electronics Co., Limited >> UGO Volkswagen Sharan Car DVD GPS Player

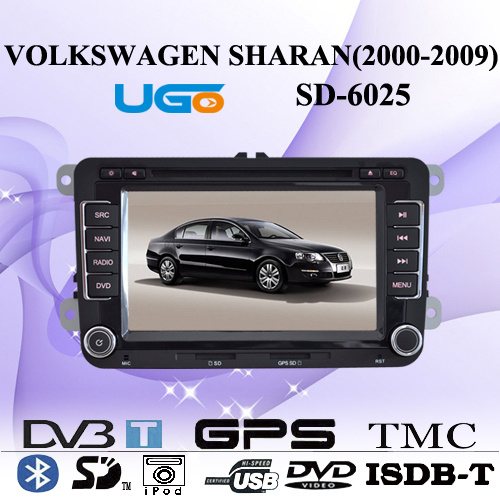

UGO Volkswagen Sharan Car DVD GPS Player

UGO Volkswagen Sharan Car DVD GPS Player
Price: Negotiable
Trade Terms: EXW
Min Order: 1 /Piece
Pay Type: T/T
Prod Model: SD-6025
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CE
Type: DVD/VCD Player
Video Output: Video
Audio Output: L/R Channel
Voltage: 12V

Product Description

*Professional graphical UI operation interface
*7 inch 16: 9 HD Digital TFT LCD with touch-screen
*Resolution: 800*480
*Built-in AM/FM receiver(RDS) and 4*45 Watts amplifier
*Built-in GPS navigation function
*Compatible: DVD/VCD/CD/MP3/MP4/DIVX/8cm discs
*Built-in Bluetooth handfree, support music player through mobilephone (A2DP)
*IPOD function and cable included
*AV input and output
*USB/SD card compatible, external MIC is optional
*Backup camera input with automatic screen switching
*ESP and Anti-shock Protection
*Front Button Light Color Display
*Dual-zone (front and rear) independent playing
*Digital TV tuner optional(DVB-T))(ISDB-T)
*TMC optional: Traffic Message Channel
*Full Function Remote Control
*Can-bus system control optional, two way canbus. Support small screen display(MFD),
*Steering wheel control,
*Support aircondition and OPS (optical parking system).
*External MIC optional
System
Working voltage  DC 11V-14V
Working current  MAX 15A
Standby current  no more than 25 mA
Video system Automatic PAL or NTSC
Display Screen
Screen Type Digital TFT LCD touch screen
Resolution 800*480
Radio
FM/ AM Frequency  FM:87.5MHz-108MHz; AM:522KHz-1620KHz
Tune method  PLL frequency complex tune
Display method  TFT Graphical User Interface OSD
Storage quantity  FM radio :18 channels, AM radio: 12 channels
Search method  Automatic/manual
RDS (TA, AF, PTY) Yes
Amplifier
Testing voltage  13.8 V
Maximum power output 4×45W
Speaker impedance  8Ω (4-8Ωacceptable)
Audio
Track imbalance degree  ≤2dB
Segregative degree  ≥45db
Frequency response 20Hz-20KHz(±3dB)
Volume adjustment Low  100HZ±7dB
  Medium 1KHZ±7dB High10KHZ±7dB
GPS
Processor Adopt SAMSUNG High performance processor S3C2443
Max.main frequency 533MHZ
EMS Memory 128MB SDRAM
Storage device 128MB NAND FLASH,Support SD/MMC Card.
Operation system Wince 5.0
Display output RGB output
resolution 800*480
Audio output Stereo output of CD tone
Human machine interface Support infrared remote control and touch screen operation
GPS specification Adopt the latest SiRF STAR III 20 channel and excessive high sensitivity GPS receiving module REB-3310
  Orientation sensitivity reach -159dBm
  Orientation presicion 10M
  Orientation time of cold boot is 42S
  Orientation time of warm boot is 35S
  Orientation time of hot boot is 1S
Power specification Connect car power DC12V,Current<500mA
consumption 4.5W(12V/360mA)
Normal power consumption 3W(12V/250mA)
Working temperature -30ºC~ +70ºC
Ugode will enter Hong Kong Electronics Fair 2012(Autumn Edition), from 13th 16th Oct, booth No is Hall 3, 3D-A32

Ugode is specialized in R&D, manufacture and distribution of Car DVD products, especially on Car DVD player, GPS navigation and Car TFT monitor etc. Since 2006. We have professional product base and a research center, including mould center, SMT process center, assemble factory, sales office. With more than 5 years' experiences in the CAR AV Electronics technology, UGO owns many advanced R&D experiences, whose audio processing and control technology is always in international advanced level, which has extreme reputation in AV industry around the world.

UGO car DVD supplier respect customers' interest and provide the most valuable products and service to our clients all over the world.

UGO's Car entertainment and GPS navigation system adopt update technology, reliable famous brands components and applies more than 5 year's Car AV technology and control system to Car entertainment and GPS navigation system. UGO dedicated to make the one-class Car AV products and GPS navigation system to customers worldwide.

OEM or ODM is welcome and we have wide experiences for OEM or ODM and will try our best to satisfy our customer's specific requirements.

The Quality Control is under strict ISO 9001: 2000, TS16949: 2009 management system and ISO 14001 environment management system to ensure our products meet international quality standards.

Our products pass through strict QA test before delivery. All products comply with CE & FCC requirements for exports.
UGO attach much importance on customer services and technical support, Customer No. 1 is our motto. Our pursuit is to be the leader of Car AV electronics.

With our resources concentrated on the special Car DVD GPS navigation system, we'll continue to develop new models of super performance and more competition to meet the market worldwide.

Enjoy your car DVD, Enjoy your way with UGO.
