| Prod Model: |
AD-6091 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sliding IPhone Ui: |
for Hyundai Elantra |
| Certification: |
CE |
| Video Output: |
Video |
| Audio Output: |
L/R Channel |
| Placement: |
Dashboard |
| Combination: |
Radio |
| Voltage: |
12V |
Product Description

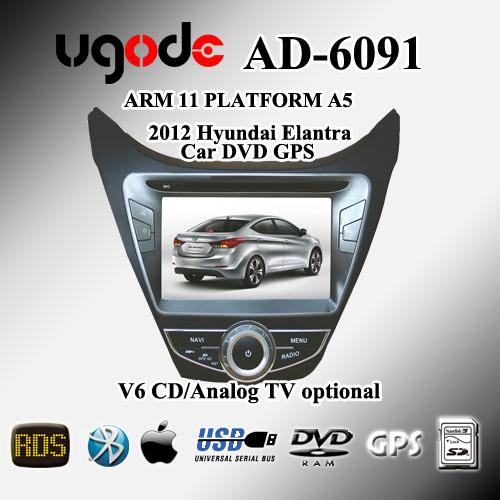

UGO Arm in-dush Car DVD GPS Player for 2012 Hyundai Elantra(AD-6091)
Main feature:
1. Sliding iPhone style GUI menu
2. Open logo and wallpaper option
3. 16: 9 HD Digital TFT LCD with magic touch-screen
4. Resolution: RGB output 800*480 pixels
5. High sensitive AM/FM radio receiver and 4*45 watts amplifier
6. Built-in GPS navigation system, Dual-zone playing
7. Compatible: DVD/VCD/CD/MP3/MP4/DIVX/USB/SD/MP3/MP4/DIVX/RMVB 720P
8. Hand free bluetooth and A2DP music, Phonebook, call record and name search
9. Four ways audio output and subwoofer, two way AV input
10. Support reverse camera input with automatic screen switching
11. ESP and Anti-shock Protection
12. iPod iPhone music play( iPhone resume play and charge iPhone)
13. SD/MMC slot, USB port
14. Real time display, Games
15. Steering wheel control
16. Multi-languages menu
17. V9 Disc optional
18. Analogue TV$6 & DVB-T $40 ISDBT$45 optional
*Processor: Advance Sirf Atlas V ARM11
*Max. Main frequency: 500MHz+250MHz DSP
*EMS Memory: 128MB SDRAM
*Storage device: 128MB DDRII333, Support SD/MMC Card.
*Operation system: Wince 6.0
*SD Card/USB support memory: 32GB
Ugode is specialized in R&D, manufacture and distribution of Car DVD products, especially on Car DVD player, GPS navigation and Car TFT monitor etc. Since 2006. We have professional product base and a research center, including mould center, SMT process center, assemble factory, sales office. With more than 5 years' experiences in the CAR AV Electronics technology, ugode owns many advanced R&D experiences, whose audio processing and control technology is always in international advanced level, which has extreme reputation in AV industry around the world.
Ugode car DVD supplier respect customers' interest and provide the most valuable products and service to our clients all over the world
|
System |
|
|
Working voltage |
DC 10.5V-16V |
|
Working current |
1.2 -10A |
|
Standby current |
5 mA |
|
Video system Automatic |
PAL or NTSC |
|
wallpaper set |
freely |
|
Display Screen |
|
|
Screen Type |
Brand new 7 inch Digital TFT LCD & touch screen |
|
Display mode |
16:9 |
|
Resolution |
800(H)*480(V) |
|
Screen brightness |
450cd |
|
Radio |
|
|
FM/ AM Frequency |
FM:87.5MHz-108MHz; AM:522KHz-1620KHz |
|
Tune method |
PLL frequency complex tune |
|
Display method |
TFT Graphical User Interface OSD |
|
Storage quantity |
FM radio :18 channels, AM radio: 12 channels |
|
Search method |
Automatic/manual |
|
RDS (TA, AF, PTY) |
Optional |
|
DVD |
|
|
Video output range |
1+10.2Vp-p (75Ω) |
|
Disc spec Diameter |
12cm disc |
|
Compatible disc |
DVD/VCD/CD/MP3/MP4/DIVX/RMVB 720P |
|
Amplifier |
|
|
Testing voltage |
13.8 V |
|
Maximum power output |
4×45W |
|
Speaker impedance |
8Ω (4-8Ωacceptable) |
|
Audio |
|
|
Output |
Six way(front two, rear two, AUX two) and subwoofer output |
|
Input |
Two way |
|
Audio line output |
1--2V @ 14.4V,1KHz,3% |
|
Track imbalance degree |
≤2dB |
|
S/N ratio |
≥80dB |
|
Segregative degree |
≥70dB |
|
Frequency response |
20Hz-20KHz(±3dB) |
|
Volume adjustment |
Optional |
|
Medium 1KHZ±7dB High10KHZ±7dB |
|
Video |
|
|
Output |
Two way |
|
Input |
One way plus rear camera input |
|
Output voltage |
1.0±0.2 Vp-p |
|
DVD horizontal definition |
≥480 TV lines |
|
Support Photo format |
JPEG,BMP,GIF ect |
|
Support Audio format |
CD,WAV,MP3.WMA.ACC.APE.Oggvorbis ect |
|
Support Media format |
ASF, MPEG-1,MPEG-2,AVI,RMVB,FLV,3GP,MOV,MP4, ect |
|
GPS |
|
|
Processor |
Advance Sirf Atlas V ARM11 |
|
Max.main frequency |
500Mhz+250Mhz DSP |
|
EMS Memory |
128MB SDRAM |
|
Storage device |
128MB DDRII333,Support SD/MMC Card. |
|
Operation system |
Wince 6.0 |
|
Audio output |
Stereo output of CD tone |
|
Human machine interface |
Support infrared remote control and touch screen operation |
|
Bluetooth |
|
|
A2DP |
Yes |
|
Microphone |
Inter mic, external mic optional |
|
Received Call |
Yes |
|
Dialled Call |
Yes |
|
Missed Call |
Yes |
|
Download Contacts/phonebook |
Yes |
|
name search |
Yes |
|
TV Tuner |
|
|
Built-in Analog TV |
Optional |
|
Built-in Digital TV |
Optional |
|
Digital TV type |
DVB-T(MPEG2/MPE4);ISDB-T |
|
Storage Media |
|
|
SD Card Slot |
Yes |
|
USB Port |
Yes |
|
SD Card/USB support capacity |
32GB |
|
iPod |
|
|
iPod Support |
Yes |
|
iPhone Support |
Yes |
|
Support Music A2DP |
Yes |
|
Support Video |
No |
|
Resume play support |
Yes |
|
Charge-up |
Yes |
|
Other Functions |
|
|
Dual-Zone |
Yes |
|
Steering Wheel Control |
Yes |
|
Remote control |
Yes |
|
Canbus |
|
|
aircondition |
|
|
OPS (optical parking system) |
|
|
MFD |
|
|
Virtual 9 Discs |
|
|
Button Light |
red |
Ugode will enter Hong Kong Electronics Fair 2012(Autumn Edition), from 13th 16th Oct, booth No is Hall 3, 3D-A32
Ugode is specialized in R&D, manufacture and distribution of Car DVD products, especially on Car DVD player, GPS navigation and Car TFT monitor etc. Since 2006. We have professional product base and a research center, including mould center, SMT process center, assemble factory, sales office. With more than 5 years' experiences in the CAR AV Electronics technology, UGO owns many advanced R&D experiences, whose audio processing and control technology is always in international advanced level, which has extreme reputation in AV industry around the world.
UGO car DVD supplier respect customers' interest and provide the most valuable products and service to our clients all over the world.
UGO's Car entertainment and GPS navigation system adopt update technology, reliable famous brands components and applies more than 5 year's Car AV technology and control system to Car entertainment and GPS navigation system. UGO dedicated to make the one-class Car AV products and GPS navigation system to customers worldwide.
OEM or ODM is welcome and we have wide experiences for OEM or ODM and will try our best to satisfy our customer's specific requirements.
The Quality Control is under strict ISO 9001: 2000, TS16949: 2009 management system and ISO 14001 environment management system to ensure our products meet international quality standards.
Our products pass through strict QA test before delivery. All products comply with CE & FCC requirements for exports.
UGO attach much importance on customer services and technical support, Customer No. 1 is our motto. Our pursuit is to be the leader of Car AV electronics.
With our resources concentrated on the special Car DVD GPS navigation system, we'll continue to develop new models of super performance and more competition to meet the market worldwide.
Enjoy your car DVD, Enjoy your way with UGO.
