| Prod Model: |
TYA-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Oil-Water Separator |
| Performance: |
Efficient Filtration |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Purification |
Product Description

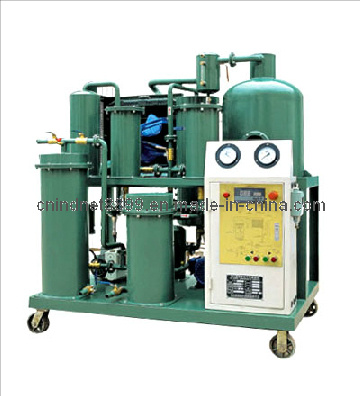

TYA Lubricant Oil Purifier, TYA Lubricant Oil Purifier, Oil Recycling, Oil Filtration, oil filter machine, oil purification, hydraulic oil purifier, gear oil purifier
Usage:
Widely applied to power, metallurgic, mine, mechanical, chemical, manufacturing and food processing industries for purification of hydraulic oil, freezing machine oil, solute press oil, gear oil, vacuum pump oil, engine oil and heat treatment oil.
Technical Features:
1. The Purifier could effectively remove the iron flake, dust, impurities, water and organic substance contained in waste oil, as well as organic and inorganic acid, enabling the recovery of performance of lubricant oil.
2. It has a strong demulsifying capability, which could separate the large amount of water from oil and the minimal amount of water from oil.
3. It has a strong impurity removing capability due to special filtration materials applications which increase filtration area and accuracy. Its large area and intensive precision filtration materials can remove the tiny particles in the oil while the backwash function automatically cleans the large amount of dirt in the filter, serving as a cleaning device to the system, thus the seriously contaminated oil can be brought back to a specification under control.
4. Special filter-aid reagent is applied, especially fit to high viscosity lubricant oil, freezing machine oil, hydraulic oil and gear oil.
Items
|
Unit |
TYA-10 |
TYA -20 |
TYA -30 |
TYA-50 |
TYA -100 |
TYA -150 |
TYA -200 |
TYA -300 |
|
Flow rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
VacuumRange |
Mpa |
-0.06 to -0.095 |
|
Working Pressure |
Mpa |
≤ 0.4 |
|
TemperatureRange |
|
20 to 80 |
|
Power Supply |
|
380V 50HZ (or at user' s option ) |
|
Noise |
dB(A) |
≤ 65 to 80 |
|
Fault-Free Working Hours |
h |
≥ 4000 |
|
Continuous Running Hours |
h |
≥ 150 |
|
Heating Power |
Kw |
36 |
40 |
45 |
60 |
90 |
120 |
180 |
240 |
|
Total Power |
Kw |
38 |
42 |
47 |
65 |
96 |
127 |
197 |
248 |
|
Inlet(Outlet) Diameter |
mm |
Φ 25 |
Φ 25 |
Φ 25 |
Φ 32 |
Φ 42 |
Φ 50 |
Φ 50 |
Φ 60 |
|
Total weight of equipment |
kg |
350 |
380 |
400 |
450 |
550 |
650 |
700 |
750 |
|
Dimension |
L |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1950 |
2100 |
|
W |
mm |
1000 |
1050 |
1050 |
1150 |
1150 |
1600 |
1600 |
1600 |
|
H |
mm |
1600 |
1600 |
1650 |
1700 |
1750 |
1950 |
1950 |
2000 |
|
Indexes After filtration |
demulsifying value |
min |
≤ 15/min(GB/F7035) |
|
Water content |
ppm |
≤ 100 |
|
Gas content |
% |
≤ 0.1 |
|
cleanliness |
|
≤ NAS 6 |
