| Prod Model: |
EM-200140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
3-Wires Surveillance Kit Acoustic Earpiece |
| Connector: |
All Radios Connector Available |
| Voice: |
Loud & Clear Sound |
| Cable: |
PU with Kevlar |
| Ptt: |
Barrel Type Ptt |
| Users: |
General,Police,Swat,etc |
| Warranty: |
10 Months |
| Style: |
Ear Hook |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Noise-Cancelling |
| Earpad Size: |
One Size |
| Color: |
Black |
| Wire Material: |
PU |
| Jack Type: |
Depends on Radio Connector |
| Use: |
Two Way Radios/Walkie Talkies |
Product Description

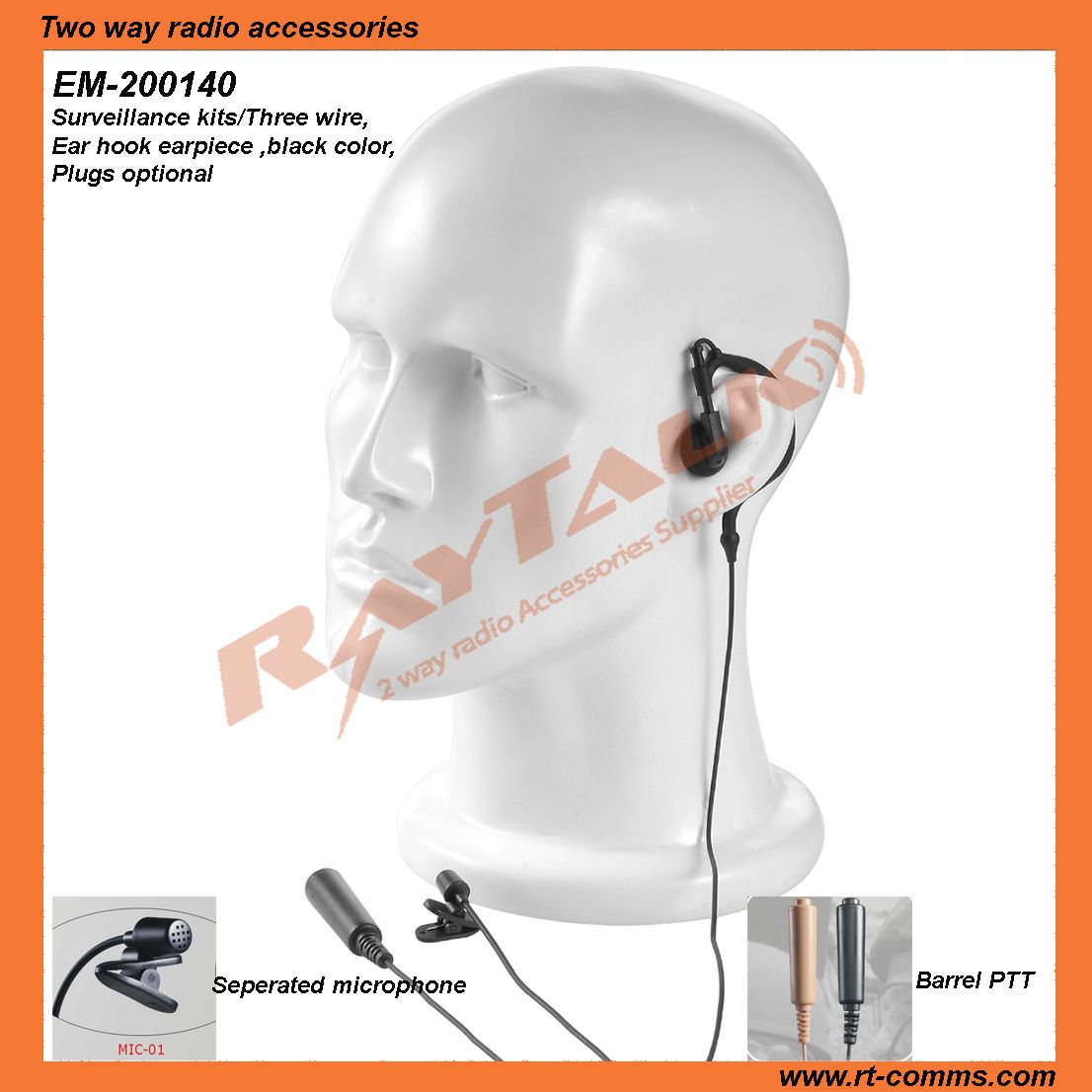

Two way radios 3-wires surveillance kits Acoustic tube earpiece
1, earhook earpiece
2, #40 Barrel PTT design make holding in the palm of hands for easy operation
3, All units feature heavy grade industrial jacketed cables and excellent strain relief for maximum life
4, Designed for surveillance, security, public safety, etc
5, Compatiable for Motorola, Kenood, HYT, Vertex, Icom...Two way radios
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Microphone Specification
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |
