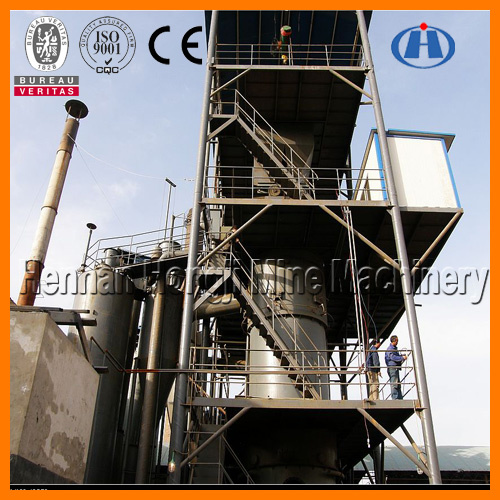

Two Stage Coal Gas Station
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
CQ |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Two-Stage Coal Gas Station introduction
1) Two Stage Coal Gas Station is mainly used for glass industry, ceramic industry, which need clean gas project
2) Two Stage Coal Gas Stationcan produce heating value 1450-1500 degree
3) Whole processing equipments mainly includes, coal gasifier, dust collector, gravity dust collector, panel valve, backflow valve
Two Stage Coal Gas Station Working principle
Two Stage Coal Gas Station is a equipment that converts coal into combustible gas--coal gas (mainly composed of CO, H2, CH4, etc. ).
The working principle: Solid coal can be gasified into inflammable gases through vapor media. This coal gas is then roughly de-dusted and conveyed through a conveying pipe to burn at a nozzle. The heat produced is used to heat the thermal furnace. With the gas as the burning material, the temperature is even on the furnace. Our single stage coal gasifier is widely used as steel rolling furnace, annealing furnace, forging furnace, steel pipe furnace, glass furnace, aluminum furnace, melting furnace, cooper furnace, pottery furnace, etc.
The working process of Two Stage Coal Gas Station consists of carbonization and gasification. During carbonization process, coal goes through intensive drying and low temperature carbonization, and gradually turns into semicoke. During the gasifying process, hot semicoke reacts with gasifying agent and turns into ash, which is discharged from ash bowl automatically.
In low temperature carbonization process, dry distillation gas is produced by evaporating water content. It is used as top gas of double stage coal gasifier and takes up 40% of the total gas amount. Dry distillation gas enjoys higher heat value (6700KJ/nm3) and low temperature (120° C), and contains large amount of tar, which is produced by low temperature carbonization. Tar is of good liquidity and can be gathered by electrostatic dust collector as chemical raw materials and fuels.
During gasifying process of Two Stage Coal Gas Station, hot semicoke and gasifying agent conduct a series of chemical reactions including reduction and oxidation and produce gasified gas. This kind of gas is used as the bottom gas of double stage coal gasifier and takes up 60% of total gas amount. Its heat value is competitively lower (6400KJ/nm3); Its temperature is higher (about 450° C). Due to its less proportion of ash, bottom gas can be processed through cyclone dust separator and wind cooler. Users can use cold purified gas without adopting elutriation method, thus avoiding producing large amount of phenol water.
|
name |
unit |
specification |
|
2.0 |
2.4 |
2.6 |
3.0 |
3.2 |
|
Chamber diameter |
mm |
2000 |
2400 |
2600 |
3000 |
3200 |
|
applicable fuel |
|
Non-caking or weak-caking anthracite, biruminous coal, coke, coal property should be coincident with the requirement of GB9143 |
|
Fuel size |
mm |
25_50 |
|
Coal consumption |
Kg/h |
800~1000 |
1200~1500 |
1300~1800 |
1800~2100 |
2200~2500 |
|
Gas agent |
|
Air, steam |
|
Gas output |
Nm3/h |
2500~3000 |
3600~4500 |
4000~5500 |
6000~7000 |
7000~8000 |
|
Tar |
Mg/m3 |
≤100 |
|
Net heating value |
kJ/Nm3 |
≥5800 |
|
Gas temperature |
distillation stage |
°C |
80~120 |
|
gasifying stage |
°C |
400~600 |
|
Gas pressure |
distillation stage |
Pa |
1000~1500 |
|
gasifying stage |
Pa |
1470~1960 |
|
Blast pressure |
Pa |
≤6000 |
|
steam products |
Kg/h |
300 |
450 |
500 |
550 |
550 |
|
Inner steam pressure |
|
0.07 |
0.07 |
0.07 |
0.07 |
0.07 |
|
Saturated temperature |
°C |
50~65 |
|
Feeding coal mode |
|
Automatic |
|
Coal feeding system |
|
Hydraulic driving |
