| Prod Model: |
HCEU-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Centrifugal Fan |
| Timer: |
Without Timer |
| Application: |
Household |
| Power: |
100W-300W |
| Power Supply: |
Electric |
| Speed: |
Stepless 0-Full |
Product Description

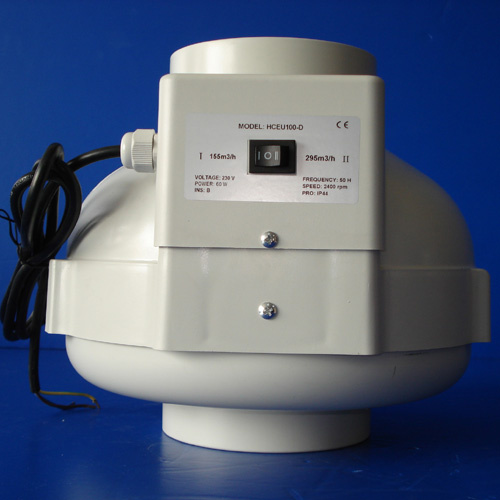

Two Speed Plastic Centrifugal Ventilation Ceiling Blower Fan
1. Plastic Housing
2. Noiseless and power saving
3. Perfect design & construction
4. High quality moulded impeller
5. Thermally protected AC motor
6. Includes power line & mounting bracket
DETAILS
Typical sizes available: Ø 100; Ø 125; Ø 150; Ø 160; Ø 200; Ø 250; Ø 305, Ø 315mm
Colour available: Black, White, etc
It is used to transmit and strengthen the air flow inside a network of ventilation ducts.
The Plastic Inline Duct Fan is equipped with ball bearing and visible propeller with a protective grate. The installations can be mounted horizontally and vertically.
The propeller blades are directed backwards, ensuring higher pressure and work effciency.
The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.
|
Model |
Voltage |
Frequency |
Power |
Rotate |
Air Flow |
Pressure |
|
(HCEU-D) |
(V ) |
(HZ) |
(W) |
(R/Min) |
(M3/H) |
(Pa) |
|
Φ 100mm |
120 / 230 |
60 / 50 |
69 |
2590 |
175 / 350 |
360 |
|
Φ 125mm |
120 / 230 |
60 / 50 |
71 |
2535 |
220 / 440 |
390 |
|
Φ 150mm |
120 / 230 |
60 / 50 |
100 |
2350 |
305 / 610 |
430 |
|
Φ 160mm |
120 / 230 |
60 / 50 |
130 |
2580 |
350 / 700 |
475 |
|
Φ 200mm |
120 / 230 |
60 / 50 |
190 |
2150 |
525 / 1050 |
620 |
|
Φ 250mm |
120 / 230 |
60 / 50 |
195 |
2250 |
600 / 1200 |
635 |
|
Φ 305mm |
120 / 230 |
60 / 50 |
245 |
2450 |
925 / 1850 |
690 |
|
Φ 315mm |
120 / 230 |
60 / 50 |
250 |
2520 |
950 / 1900 |
720 |
Hangzhou Huichuang Import & Export Co., Ltd. is the high and new technique enterprise which holds more than 30 intellectual property rights. It deals in scientific research, production and international business and specializes in developing the product which economize on energy and protect environment as well as design and produce several kinds of ventilation products.
Our enterprise has the advanced product line from Switzerland spiro company that can produce complete set of screw air pipe and its fittings including jpx automatic roll- form machinery, r1530 plasma cut devices, cu-30^^. All above advantages maintain the advanced nature of our products.
We built the perfected product system according to ISO9002 international product system which is provided with high level structure design, high making staff in charge for development and advanced facilities so that our company not only have deep skill and rich resource, but also leverage ourselves growing smoothly.
