| Prod Model: |
HCEU-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4"~12.5" |
| Model Number: |
Hceu-D |
| Type: |
Centrifugal Fan |
| OEM: |
Accept |
| Electric Current Type: |
AC |
| Blade Material: |
Plastic |
| Air Volume: |
175m³ /H~1850m³ /H |
| Speed: |
2100~2590 R/Min |
| Voltage: |
120V/230V |
| Power: |
69~250W |
| Certification: |
CE |
Product Description

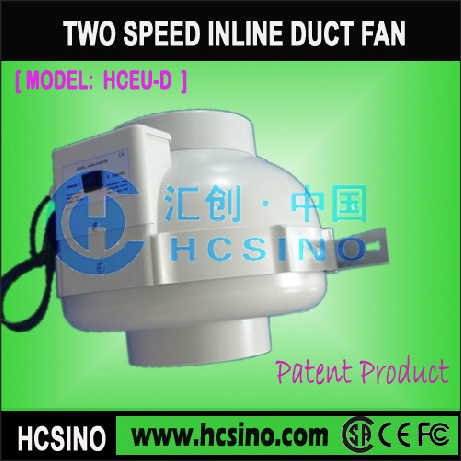

Two speed controlled centrifugal fan
1. Two speed controlled, Low spped and high speed
2. Housing Material: Plastic
3. Typical sizes available: Φ 100; Φ 125; Φ 150; Φ 160; Φ 200; Φ 250; Φ 305; Φ 315
4. with certifications of CE, 3C, RoHS
5. We hold patent for it
It is used to transmit and strengthen the air flow inside a network of ventilation ducts.
The fan is equipped with ball bearing, enabling the installations to be mounted both horizontally and vertically. The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.
4. Accessories: It is possible to connect a variable speed controller, Providing the customer with variable airflow settinG.
5. Specific technical parameter:
|
Model |
Voltage |
Frequency |
Power |
Rotate |
Air Flow |
Pressure |
|
(HCEU-D) |
(V ) |
(HZ) |
(W) |
(R/Min) |
(M3/H) |
(Pa) |
|
Φ 100 |
120/230 |
50/60 |
68 |
2590 |
155 / 310 |
350 |
|
Φ 125 |
120/230 |
50/60 |
70 |
2540 |
205 / 410 |
330 |
|
Φ 150 |
120/230 |
50/60 |
99 |
2375 |
305 / 610 |
380 |
|
Φ 160 |
120/230 |
50/60 |
130 |
2580 |
340 / 680 |
370 |
|
Φ 200 |
120/230 |
50/60 |
180 |
2145 |
525 / 1050 |
570 |
|
Φ 250 |
120/230 |
50/60 |
180 |
2180 |
550 / 1100 |
570 |
|
Φ 305 |
120/230 |
50/60 |
215 |
2410 |
905 / 1810 |
660 |
|
Φ 315 |
120/230 |
50/60 |
222 |
2375 |
925 / 1850 |
680 |
Hangzhou Huichuang Import & Export Co., Ltd. is the high and new technique enterprise which holds more than 30 intellectual property rights. It deals in scientific research, production and international business and specializes in developing the product which economize on energy and protect environment as well as design and produce several kinds of ventilation products.
Our enterprise has the advanced product line from Switzerland spiro company that can produce complete set of screw air pipe and its fittings including jpx automatic roll- form machinery, r1530 plasma cut devices, cu-30^^. All above advantages maintain the advanced nature of our products.
We built the perfected product system according to ISO9002 international product system which is provided with high level structure design, high making staff in charge for development and advanced facilities so that our company not only have deep skill and rich resource, but also leverage ourselves growing smoothly.
