| Prod Model: |
Eadex |
| Markets: |
South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia |
| Size: |
58*1800mm |
| Collector Components: |
Glass Vacuum Tube |
Product Description

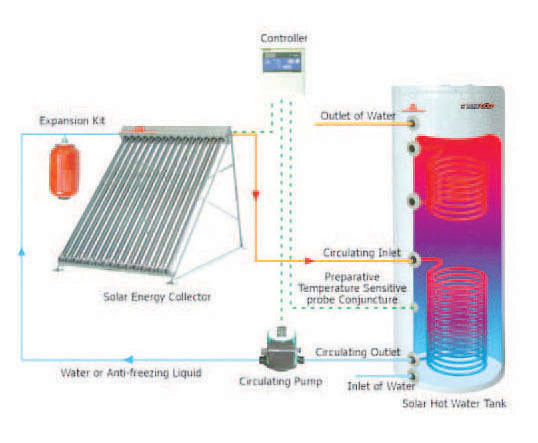

Two coils solar water heater
The split solar water heating is an active system, because it uses a pump with a controller to circulate the fluid between solar collector and the storage tank, tank and solar collector are separate, while the collector is integrated in to the roof of the building, the tank and the pump station can installed anywhere of the building.
Feature:
1. Collector separated with storage tank. The tank can be put in any place of house. And the collector can be put on the clined roof or flat place
2. Module design, arbitrary combination, harmony with the building perfectly
3. Intelligent control and automatic operation
4. Multifunction: Bathing, washing, domestic heating etc
5. Work at anytime and enjoyable
Capacity: 100L/150L/200L/250L/300L/400L/500L/1000L
| product model | 100L | 150L | 200L | 250L | 300L | 400L | 500L |
| inner vessel diameter(mm) | φ370 | φ370 | φ450 | φ480 | φ480 | φ580 | φ580 |
| water tank dimension(mm) | φ470 | φ470 | φ550 | φ580 | φ580 | φ700 | φ700 |
| material and thickness of the inner vessel | SUS304/ss316 1 | SUS304/ss316 1.2 | SUS304/ss316 1.5 | SUS304/ss316 1.5 | SUS304/SS316 1.5 | SUS304/ss316 2.0 | SUS304/ss316 2.0 |
| material and thickness of the shell | Color Steel0.4 | Color Steel0.4 | Color Steel0.4 | Color Steel0.4 | Color Steel0.4 | Color Steel0.4 | Color Steel0.4 |
| layerinsulation thickness(mm) | 50 | 50 | 50 | 50 | 50 | 60 | 60 |
| connector size of inlet&outlet | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1" |
| connector size of copper coil | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| rated heating power | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Overall dimension(references)(mm) | φ470×1040 | φ470×1440 | φ560×1260 | φ560×1520 | φ560×1810 | φ700×1550 | φ700×1850 |
| Packing case size(mm) | 550×550×1120 | 550×550×1500 | 640×640×1330 | 640×640×1600 | 640×640×1870 | 780×780×1650 | 780×780×1950 |
Founded in 1997, Haining Jinhong Solarenergy Industry Co., Ltd. specializes in the production of solar water heaters.
Our company is located in Haining City of Zhejiang Province, covering an area of 14, 652 square meters with more than 50 staff members. We have an annual manufacturing capability of 600 thousand vacuum heat collection tubes and 20, 000 solar energy water heaters, forming a complete industrial chain of high boron-silicon glass tubes-vacuum heat collection tubes-solar energy water heaters.
We play a leading role in China's solar water energy industry, and our products have been sold to 28 provinces in China and exported to many countries and regions around the world, such as the EU, North America, South Africa and Southeast Asia.
After years' practice, we have improved our production technology, trained management personnel and promoted R&D capabilities. At present, our company boasts professional management talents, as well as advanced production and examination equipment. Moreover, we have established a perfect and modern business enterprise management system. All staff members produce and manage in accordance with international standards. We put customers' benefits in the first place. With good after-sales service systems and high product quality, we have won customers' trust.
If you are interested in our products, please do not hesitate to contact us for more information. We are looking forward to cooperating with you.
