Product Description

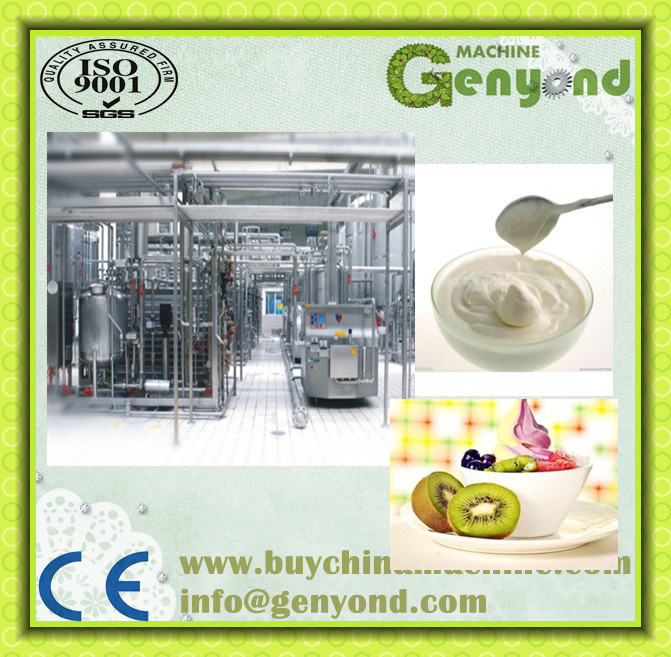

The whole yogurt machine in whole processing line
1 Water treatment system
2. Mixing and Sugar Melting Section
3. Pasteurizer and Homogenizer 4. Milk Storage or Yogurt Producing Unit 5. Filling or Packing Unit
6. CIP Cleaning Systems
7. After Treatment Equipment, like conveyor, package or pallet, etc. 8. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
9. Installation materials for the material pipeline, non-material pipeline as well as electrical installation are provided.
(Filling and packing types can be decided by you customer then designed accordingly.)
We supply the whole line incuding the design of factory layout, production and installation. The material of all the machines in the whole line is stainless steel. We can design the proposal according toyour detailed requirements. The operational capacity per hour is flexible. Usually it should be 500L, 1000L, 1500L, 2000L, 2500L, 3000L etc
prematers
Type | Automatic/ semi-automatic |
Production | 200L/H,500L/H 1000L/H 3000L/H 5000L/H |
Final products | Drinking milk, Yogurt ,Juice |
Power | 38kw |
Size | according to customer's capacity |
Package | Plastic /brick carton/roof paper box/bottle ect |
yogurt fermentation unit |

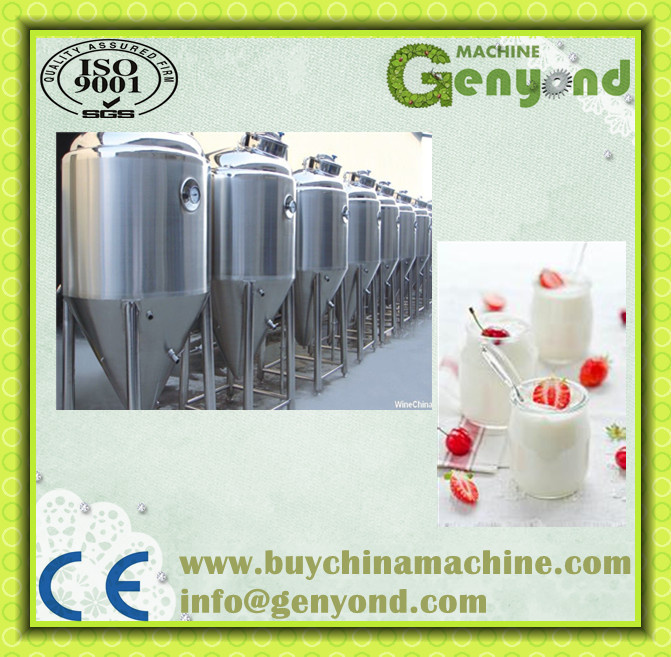

fermentation tank | SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
rotary pump | SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift |
plate cooler | SUS304,single stage,milk discharge at 4C |
rotary pump | SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift |
filling unit |
higher position tank | SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet |
pasteurized milk filling machine | |
yogurt filling machine | |
CIP system |
semi-auto CIP system | outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks |
CIP return pump | SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished |
installation part | whole milk processing line installation and commissioning |
