| Prod Model: |
TY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Return Filter |
| Power(W): |
as Needed |
| Weight: |
400kg |
| Dimension(L*W*H): |
1200mm*950mm*1300mm |
| Warranty: |
2 Years |
| Color: |
Yellow, Blue, Green |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Product Description

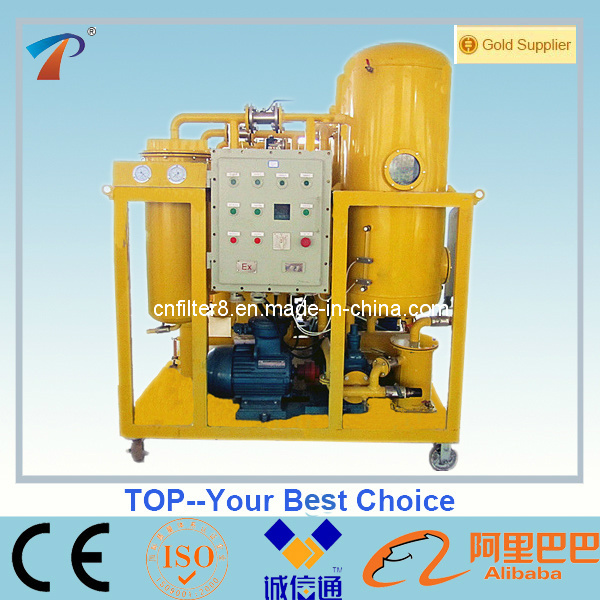

Turbine lubrication oil conditioning purifier (TY)
1. Removes free and dissolved water, dirt, and free and dissolved air/gases
2. Portable unit is compact and easy to use
3. Cost savings including: Increased equipment uptime, improved machine performance, reduced component replacement costs, reduced maintenance labor costs, and lower oil replacement and disposal expense.
Application:
TY series oil filtration equipment is particularly suitable for purifying turbine lubricating oil. It also applys to treat hydraulic, coolant oil and other lubrication in which contains large amount of water, vapor, impurities, sludge, dielectric and colloid
It can eliminate them effectively and efficiently. TY series will result in the improvement of the properties of turbine oil, other lubrication and extend the maintenance period of turbine or other equipment which has lubrication system and keep them operated in good condition
Description
TF turbine oil purifier series is developed by vacuum evaporation technology, coacervation technology, coalescing technology, separating engineering technology and refined purification technology. It can eliminate water, gas, impurities, colloid, dielectric etc. Rapidly and effectively in high vacuum situation and make the waste oil renewed
Turbine or other equipments which has lubrication system need be replaced frequently because of vapor, water and other impurities mixed with it. Otherwise, oil deterioration would result in breakdown of machinery or affect the normal running of machinery
TY series can effectively extend the lifetime of oil and protect turbine and other machinery which has lubrication system from damage
Features:
1. With special polymeric materials as filter medium and vacuum separating technology, the filtration machine can rapidly and efficiently break emulsification and remove water, gas and impurities from oil to make the oil's clean.
2. On-line filtration can be carried out with turbine or water turbine.
3. Duplex stereo flash evaporation technology
4. Temperature controller to protect the machine.
5. Multi-stage precision filtration system; Mesh filtration combined with molecule adsorption technology.
6. Efficient heating system to make heating uniformity and decrease power consumption.
7. Installed oil-level floating ball and double-infrared liquid level automatic controller to control the oil level and avoid the oil leaking.
8. Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, this oil filtering machine will be power off automatically.
Special features:
This Oil Purifier can remove contamination down to less than 5 micron, water content down to 60 PPM, air & gases down to 0.1% and lower oxidised molecules of oil from turbine oils.
Removal of free and emulsified water prevents formation of varnish and bacteria. Turbine oil is 98% base oil and it has approximately 2% additives. By keeping the oil free from water and contamination down to less than a micron, TY Series Oil Purification Systems protects the turbine oil additives, which can then continue to perform their essential functions for a very long time thereby increasing oil life tremendously.
Technical Parameters:
Index Name |
Unit |
TY-10 |
TY-20 |
TY-30 |
TY-50 |
TY-100 |
TY-150 |
TY-200 |
TY-300 |
Flow rate |
L/ h |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
Working vacuum |
MPa |
-0.06~-0.095 |
Working pressure |
MPa |
≤ 0.4 |
Temperature range |
|
20 ~80 |
Power supply |
|
380V 50HZ 3Ph (As per user's option) |
Working noise |
dB(A) |
≤65~80 |
Heating power |
Kw |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
Total power |
Kw |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
Weight |
kg |
400 |
450 |
500 |
600 |
800 |
1000 |
1100 |
1550 |
Dimension |
L |
mm |
1280 |
1350 |
1350 |
1350 |
1500 |
1500 |
1600 |
1650 |
W |
mm |
750 |
900 |
950 |
1000 |
1000 |
1200 |
1350 |
1350 |
H |
mm |
1450 |
1450 |
1500 |
1800 |
1800 |
1800 |
1800 |
1850 |
Guarantee value
Capability item |
Data |
Moisture |
≤5 0PPM |
Break emulsification value |
≤ 15min (GB/F 7305) |
Clean degree |
≤4grade (NAS1638) |
