| Prod Model: |
FIT-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer |
| Supply Power: |
380V/3p/50Hz |
| Certification: |
CCC |
| Condition: |
New |
| Ice Shape: |
Tube |
Product Description
Quick details for tube ice machine:
1. CE, SGS, ISO, CCC certificates.
2. Bitzer compressor
3. Siemens PLC controller
4. Danfoss solenoid valve
5. Big capacity
6. Warranty 15 monthsIntroduction of tube ice machine

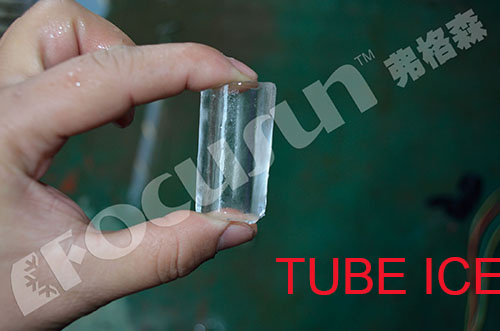

1.Tube ice
It is a kind of hollow cylindrical ice with external diameter ø22,ø29,ø35mm and length 25~42mm. The hole diameter is usually ø5~10mm and it can be adjusted according to ice making time.
2.Tube ice machine Features:
Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
The use of stainless steel SUS304,aluminum alloy plate-type evaporator, accords with the health and safety requirements.
The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
Half-full liquid: liquid level controller which manages liquid supply of refrigerant makes the system more stable.

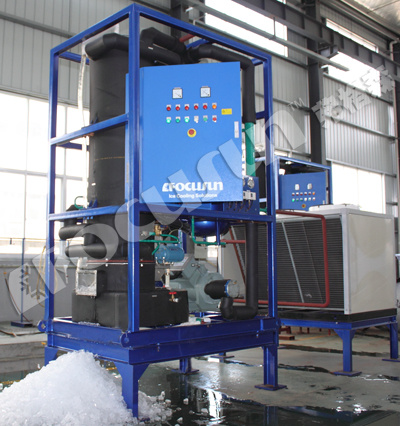

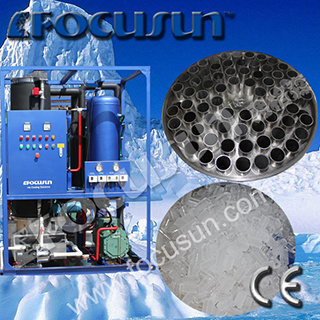

3. PRODUCTS SHOW of tube ice machine
4. OUR CERTIFICATES OF TUBE ICE MACHINE
Perfect service system:
All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.
Process:Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
AWe will dispatch our Quality and Problems Appraisers to make a confirmation.
BHave a negotiation of the compensation and sign agreements
COur After-Sales Department will perform the duties as the agreement
Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be on service for you, as the most professional ice machine manufacturer with the biggest factory base in China, we are pleased to attach our best offer. We are definitely to contact you within 3 days after getting your inquiry.
| Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz |
| Refrigerant |
| R22 or R404A |
| Capacity | Kg/day | 3000 |
| Temperature | Ambient temperature | Celcius | 35 |
| Waterinlet temperature | Celcius | 20 |
| Operating power | Total running power | Kw | 11.01 |
| Installment power | Kw | 13.5 |
| Operating power of cutter | Kw | 0.37 |
| Operating power of cold water pump | Kw | 0.55 |
| Compressor | Manufacturer |
| Bitzer |
| Refrigeration capacity | Kw | 24.5 |
| Operating power | Kw | 8.89 |
| Compressor COP/EER | Kw/kw | 2.76 |
| Horse power | Hp | 15 |
| Condenser | Fan power | Kw | 1.2 |
| Cooling way |
| Air cooling |
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×920×2000 |
| Size of condenser | (L×W×H)(mm) | 1400×1200×1350 |
| Size of water feeding pipe |
| 1/2" |
| Weight of unit | Operating weight of tube ice maker | Kg | 1250 |
| Operating weight of condenser | Kg | 125 |
| Water supply pressure requirement | Bar | 1
|
Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.
As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.
Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.
Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.
We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
