| Prod Model: |
DZL2.8-0.7/95/70-AII |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Capacity: |
2.8MW (2800kw) |
| Working Pressure: |
0.7 MPa (7 Bars) |
| Outlet Water Temperature: |
95 ºC |
| Inlet Water Temperature: |
70 ºC |
| Designed Fuel: |
Class a II Coal |
| Coal Consumption: |
600 Kg/H |
| Heat Efficiency: |
79% |
| Max. Transport Weight: |
26.7 Ton |
| Max. Transport Size: |
6.3X2.6X3.6m |
| Assembly Size: |
7.2X4.0X4.9m |
| Function: |
Hot Water Boiler |
| Fuel: |
Coal-Fired |
| Installation: |
Packaged Boiler |
| Media: |
Hot Water |
| Water Circulation: |
Forced Circulation |
| Drum Placement: |
Horizontal Boiler |
| Pressure: |
Pressure |
| Manufacturing Level: |
A |
| Burning Style: |
Chamber Combustion Boiler |
| Usage: |
Industrial |
| Structure: |
Water Tube and Fired Tube |
Product Description

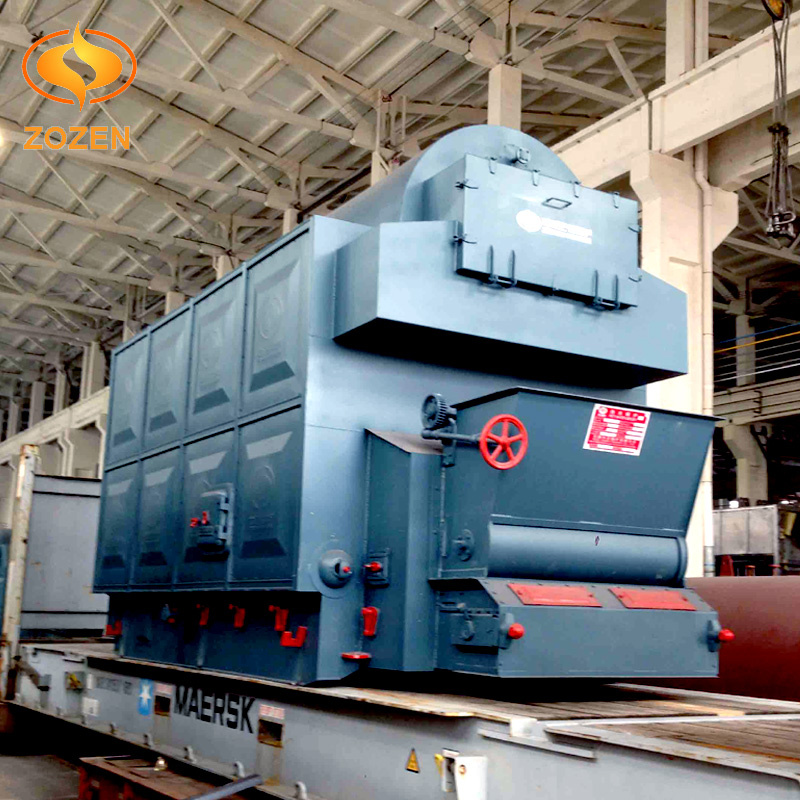

This is a coal-fired horizontal single-drum, chain grate,hot Water boiler, with capacity from 0.7MW to 70MW.
1. Boilers Features
- Strong output and be steady
- Small dimension and space-saving
- No need special protection when power failure happens suddenly
- High heat efficiency
- Rapid heating
- Lower emission
- Short installation time
2. Control Systems
The control and safety systems are interlocked in an electric control cabinet.
- Sound-light alarm of high and super-high pressure;
- Sound-light alarm of high and lowe water limit level;
- Sound-light alarm of pressure loss in the water pumps;
- More safety devices are designed and connected with the electric control cabinet (ECC).
3. Global Market
Nowadays, we have exported our boilers to the following countries: India, Indonesia, Pakistan, Malaysia, Thailand, Laos, Vietnam, Bengal, Philippines, Taiwan China, Papua New Guine, France, Finland, Turkey, Serbia, Lithuania, Bulgaria, Russia, Mongolia, Venezuela, Chile, Colombia, Mauritius, South Africa, Ethiopia, Algeria, Nigeria, Tanzania, Oman, UAE, etc.
4. Total integration goes far beyond boilers
Efficiency and quality don't end with our boilers. ZOZEN complete integration produces the most efficient boiler solutions in the world. Completely designed, engineered, manufactured, integrated, and serviced by our team, our systems don't have a single outsourced component to jeopardize compatibility or performance. If you are looking for the best-quality boiler systems with the lowest emissions and highest efficiencies, you are looking for Zozen.
5. Boilers Specification
| Boiler Model | DZL0.7-0.7/95/70-A II | DZL1.4-0.7/95/70-A II | DZL2.8-0.7/95/70-A II | DZL4.2-1.0/115/70-A II | DZL7-1.0/115/70-A II |
| Heat Capacity(MW) | 0.7 | 1.4 | 2.8 | 4.2 | 7 |
| Working Pressure (MPa) | 0.7 | 0.7 | 0.7 | 1.0 | 1.0 |
| Outlet Water Temperature(°C) | 95 | 95 | 95 | 115 | 115 |
| Inlet Water Temperature(°C) | 70 | 70 | 70 | 70 | 70 |
| Heating Area | Body (m2) | 32.4 | 59.3 | 89.16 | 126.7 | 251 |
| Economizer(m2) | 12.51 | 28.16 | 38.5 | 78.5 | 174.4 |
| Effective Grate Area (m2) | 2.05 | 3.7 | 5.3 | 7.8 | 11.8 |
| Body Water Volume (m3) | 3.6 | 6.5 | 9.2 | 12.3 | 16.5 |
| Heat Efficiency (%) | 79 | 79 | 79 | 79 | 79 |
| Available Fuel | A II Bituminous Coal | A II Bituminous Coal | A II Bituminous Coal | A II Bituminous Coal | A II Bituminous Coal |
| Fuel Consumption (Kg/h) | 151 | 302 | 600 | 888 | 1447 |
| Max. Transport Size (m) | 5.2×2.0×2.9 | 5.7×2.5×3.5 | 6.3×2.6×3.6 | 7.3×3.2×3.6 | 7.2×3.3×3.6 |
| Max. Transport Weight (t) | 13 | 25 | 26.7 | 36.1 | 25 |
| Overall Size after Installation (m) | 6.0×3.5×4.1 | 6.0×3.9×5.0 | 7.2×4.0×4.9 | 8.0×5.1×4.6 | 8.2×3.6×6.5 |
From the ZOZEN Team, with more than 15 Years of Experience in Manufacturing and Exporting.
