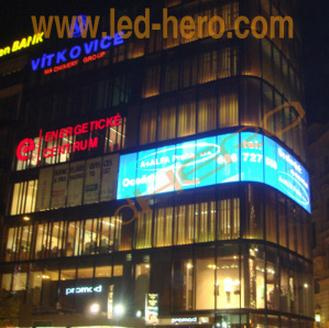

Transparent LED Display for Building Video Wall

Prod Model:	P10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hs Code: 8528591090:	Lifespan: 100, 000 Hours
Tube Chip Color:	Full Color
IP Rating:	IP43
Pixel Pitch:	10mm
Display Function:	Video Display
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	CCC
Pixel Configuration:	3 in 1
Average Power Consumption:	200W/Sq.M

Product Description

Transparent Led display for building video wall

Transparent led display is our special design,it has been widely used for shop window advertising and
building video wall. It's a breakthrough in led display technology. We not only pay attention to enough
 lighting for the building or window, but also take full consideration for heat dissipation and antioxidation
 protection.

Main features:

1. High transparency above 80%, can see through from the inside to the outside clearly.

2. Light weigh, about 12kg/sq.m ,few load to the glass wall.10mm thickness,occupies little space.

3. Easy installation and convenient maintenance ,safe and stable.

4. Comparing to led lighting product, it has better advertising benefit and will save much cost.Won't
change the building appearance.

5. Energy saving , no need cooling system and air-conditioner.

6. Easy operation by synchronous control, program can be changed anytime.

7. Application:anywhere behind the glass wall.

Product parameter

Part Number	HERO-IDS4F-8S
Resolution	32(H)×16(V)
Pixel Pitch	10mm
LED Configuration	1R1G1B 3-IN-1 SMD
Pixel Density	10,000pixels/ m2
Module Size	320*160mm
Driving IC	MBI5024
Driving Method	1/4 Scan, Constant Current
Cabinet Weight	42kg/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	Gap<0.5mm
Optical Ratings
Brightness	>1,800cd/ m2
View Angle	150°/150°
Gray Scale	8bits input, correction with 14bits
Display COLOR	16.7M
Brightness Adjustment	0~100%
Power Supply
Operation Power	90~260V 50~60Hz
Max. Power Consumption	600W/ m2
Average Power Consumption	200W/ m2
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60~85Hz
Screen Refresh Frequency	300~1000Hz
Gamma Correction	-5.0~+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°~+60°
Operating Humidity	10~95% RH
Operating Life	100,000hours
MTBF	5000hours
Protection Level	~
Out of Control Rate	<0.02%

Package and transportation

Professional package: wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation,
which faultlessly solve your worries about goods damage.


About Led-Hero

With7year experience in LED display industry, our factory has the ability of processing,researching and
developing led display to ensure prolificacy .A strict quality control process make sure that our led
displays are of high quality.


After-sale service

1) Warranty:
Free to solve quality problems to ensure normal operation of led display in the warranty period . If the
problem is from the product itself, we bear all the responsibility at any time.

2) Free maintenance:
If led display can't work,our company repair the broken parts and only charge cost of necessary raw
materials in the warranty period.We provide spare parts and maintenance  for the lowest price after the
 warranty period.

3)Quick response:
Respond within 2 hours,non-artificial and general fault be solved within 48 hours.

4) Free support:
Provide service support in real time by telephone or internet. With the help of network, we give clients
remote debugging support (software) to solve the problem.
