| Prod Model: |
Appllo 30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
RoHS |
| Pixel Pitch: |
20mm |
| Pixel Density: |
2304 Pixels/M2 |
Product Description
Transparent LED Curtain Display- Apollo Series

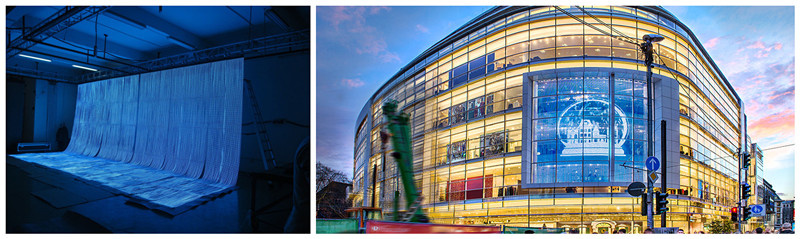

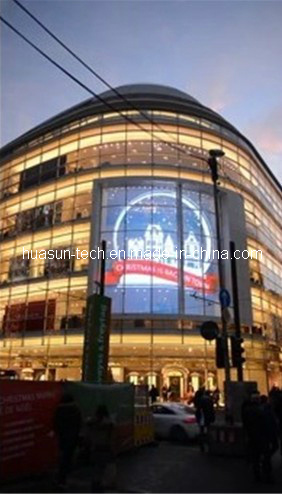

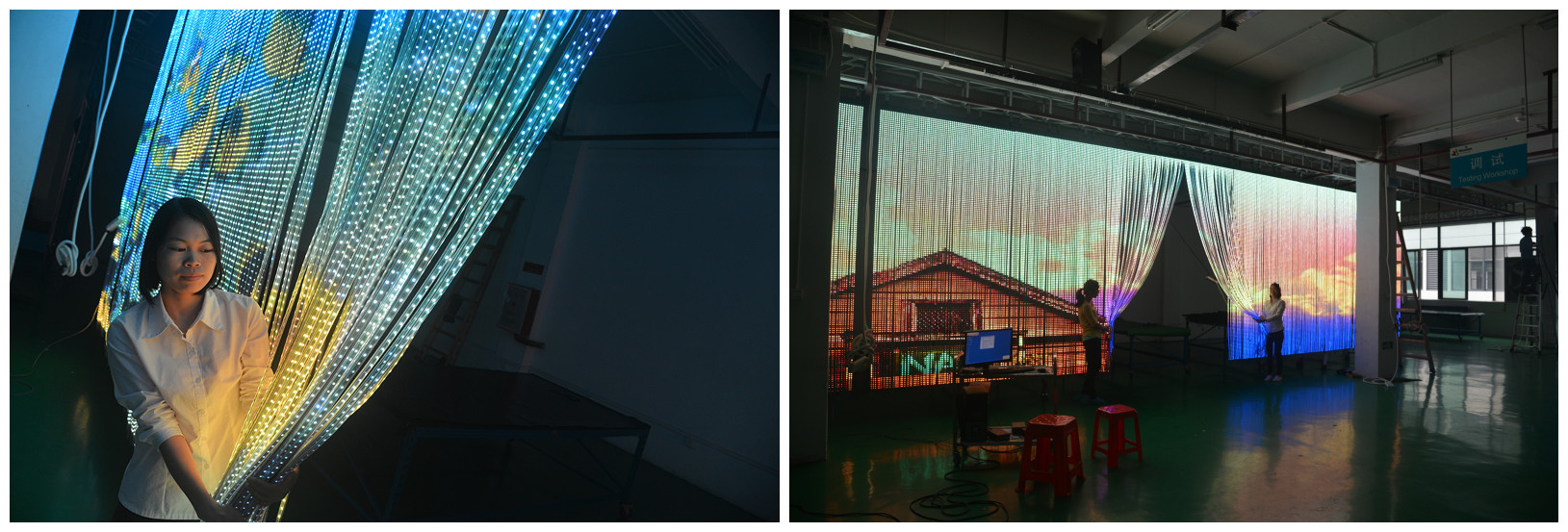

Apollo series flexible LED displays are composed of soft LED strips which have FPC and silicone rubber coating, so it is very soft and flexible and higher transparent. It looks like a crystal curtain to bring more creative application. It is applied in fashion shows, trade shows, theme parks, music concerts, visual stage, shopping mall advertising, video wall, indoor decoration and more. Transparent body: Transparent LED strips give more amazing screenLight weight: Ultra-slim and ultra-lightweight bring more design opportunities and save the shipping costAmazing flexibility: Very soft and can be folded up, can be designed many different shapes.High brightness:
High-quality RGB 3-IN-1 LED, brings bright, high-impact, full-color video images.1) Made up of High quality rubber material. Transparent, flexible.
Ultra light & think like paper;
2) Easy to use, the controller & signal cable all hidden on the tope together with the control box. So look front the LED screen body, it is very clean and tidy.
3) The screen come out with the power plug. Plug to the power source, ready to use.
4) Resolution is customized.
5) Size is customized.
Specifications: Model No. Apollo 30
Pixel pitch 31.25mm
Module resolution 16 X 4
Density 1024 pixels/
Transparency 55%
Pixel configuration RGB 3-in-1 SMD LED
Brightness(White) 1900 nits
Bit depth per color 16 bit
Bit depth per pixel 48 bit
Visual angle Horizontal:120; Vertical:120
Date refresh rate ≥1000Hz
Drive mode Constant current
Display mode 1280X1024
Input signal RF,S-VIDEO,RGBHV,YUV,YC&COMPOSITION,etc
Power supply 90~132VAC/180~264VAC 50/60Hz
Max.Power consumption ≤175 w/m2/
Average.Power consumption ≤72 w/m2
Body material Silicome Rubber,Aluminum
Ingress protection IP44
Ambient temperature -20~+50 degree
Relative humidity 10%~90%
Weight 3.8kg/
Module size Width:500mm Height:2000mm Thinkness:80mm
Size can be customized
Installation Hang
Control system Sending card HVT09
External Sending card HC103D
Huasun Technology Co., Ltd. is a high-tech enterprise that is engaged in the researching, developing, producing, marketing, and engineer service of LED display and LED lighting. It has been grown in Beijing, capital of China, for over ten years. The main products and services include LED display system, LED digital stage system, LED lighting system. With a business principle of technological innovation and professional service, the company commits to provide high-quality LED products and solutions for all clients.
The company has a R&D team made up of senior engineers. Taking advantage of the technological and cultural resource in the Capital of China, working together with experts in mechanism, optics, and electronics from the main universities, the team is devoted to the research and application of multimedia technology and has gained the leading position in product design, software development, mechanical design and optical application. The company has own many national invention patents in LED display technology. Flexible LED display, one of our patents, is a landmark product in the development of LED display. It is widely used by the clients from all over the world for the advantages of compact size, light weight, and easy installation. We always keep in mind that the mission and responsibility of the enterprise is to change the world by pioneer spirit and innovative product in a technology high speed age. We are always proud of it.
Welcome to future of Huasun: A brighten future.
