| Prod Model: |
SC15024-10.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
10.0 Inch |
| Structure: |
Pet + Glass |
| Connector: |
Pin 6 12c Interface |
| Thickness: |
1.4 ± 15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
Projection Restistive Touch Screen |
| Ratio: |
16:9 |
| Resolution: |
1024*600 |
| Aspect Ratio: |
16:9 |
| Application: |
Security Monitoring System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Screen Size: |
10.0 Inch |
| Customized: |
Custom Service Available |
Product Description
Product Descreption

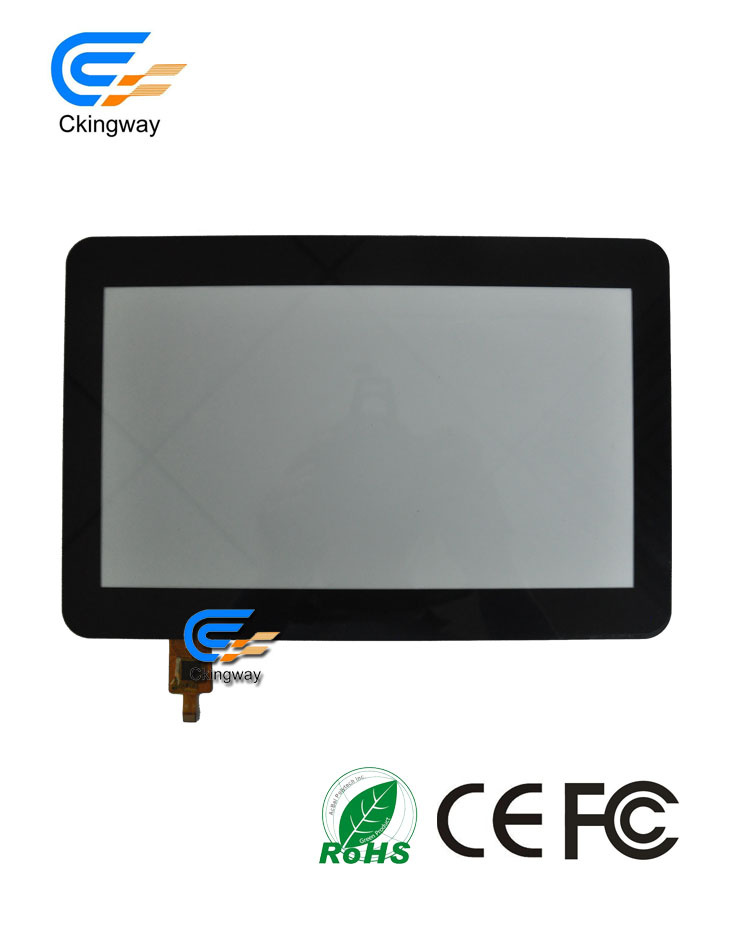

The Feather Terms Of Transparent High Quality Restistive Touch Panel 10 Inch Touch Screen Is Following:
1.10.0 Inch Size.
2.It's Resistive Touch Screen.
3.Pin 6 12C interface.
4.High Accuracy And Sensitivity.
5.Can Be Touched By Finger Or Touch Pen.
6.Custom Service Is Available.
| Size | 10"00 inch |
| Structure | PET + Glass |
| Connector | Pin 6 12C interface |
| Thickness | 1.4 ± 15 mm |
| Touch Media | Finger, Touch Pen |
| Type | Projection Restistive Touch screen |
| Ratio | 16:9 |
| Resolution | 1024*600 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 2.8 ~ 3.3 V DC |
| Transparent | ≥ 83% |
| Screen Resistance | / |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 10 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 20ºC ~ +70ºC |
| Storage Temperature | - 30ºC ~ +80ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
Packing & Delivery
Packing: Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery:3-5 Days After Your Full Payment.
The Payment Terms Of Transparent High Quality Restistive Touch Panel 10 Inch Touch Screen Is:
1.Full payment before delivery.
2.Prepay 30% as the deposite,T/T 70% the balance before delivery.
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery.
4.Payment method can be nogotiated.
About Warranty: 1 Year without damaged by people actions.
