Product Description
Transistor Output PLC Modbus RTU Tengcon T-950 with Ethernet Port
Specifications
1.Integrated Automation PLC
2.Temperature Range: -40~85 degree celsius
3.CE & FCC Certification
4.Customizable,OEM&ODM

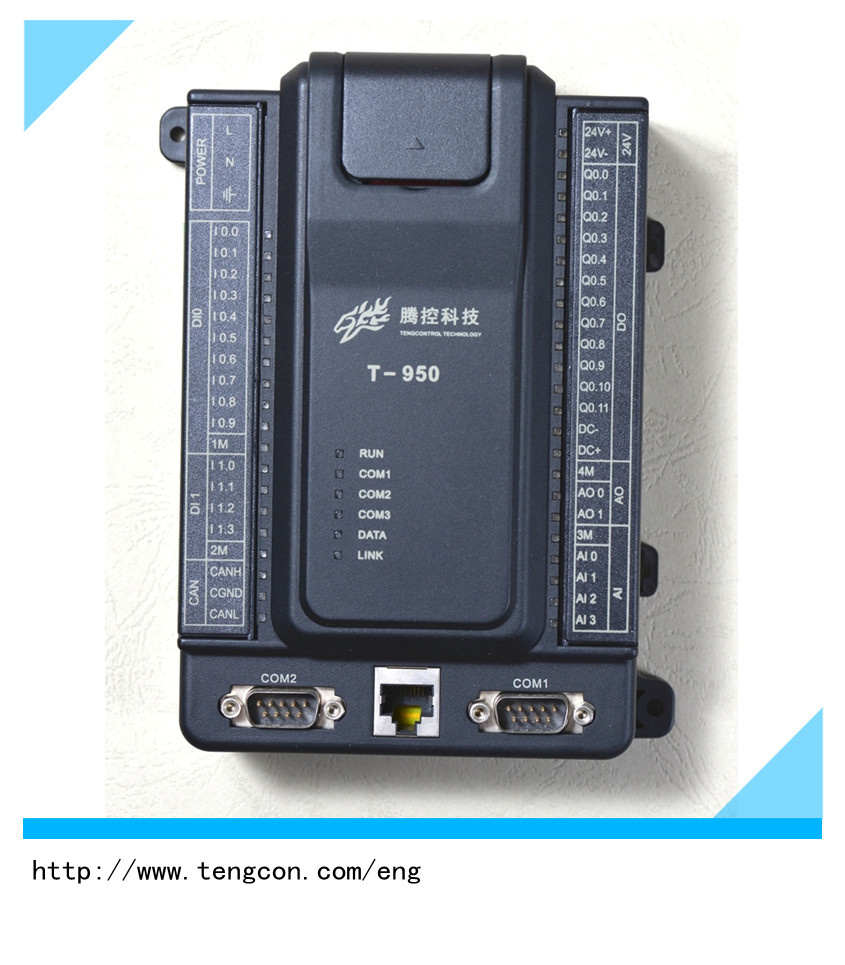

TENGCON T-950 programmable logic controller
T950 Programmable Controller is a product of TengCon Company's T900 series PLC. It combines an ARM industrial CPU with a maximum frequency of 72MHz. an extended 32M SDRAM and a 4M FLASH, an embedded operating system, a 2M user program memory and a 2M user data memory. Programming the T950 on KW Multiprog programming system and communicate via a Ethernet cable make user's programming very easy. Furthermore, T950 also provide 2 RS232, or RS485 interface. It provide the following input and output: 14 digital inputs, 12 digital outputs, 2 highspeed impulse counters, 4 highspeed impulse output and a 24VDC power supply, because of its flexibility, T950 can be applied in many small industrial control applications.
Tengcon T-9 Series PLC have passed CE & FCC Certification.
Product Description
Operating Temperature Range -40~85 degrees Celsius
4 channel analog input (0~5v or 0~20mA) , 12 bit AD
2channel analog output(0~10v or 0~20mA) , 12 bit D/A
14point isolated digit input, 2 point Single phase high speed counting or 2 differential encoder counting.
6 point transistor output
1 port 10M/100M Ethernet, MODBUS TCP / ENET IEC870-5-104
Two RS485or RS232 ports , MOBUS RTU , 300-38400bps
IEC61131-3 supported (IL,ST,LD,FBD,SFC)
AC(85-265V) or DC 24V power supplies
169x134x63 (mm) size
Technical Specification
Model Number |
TENGCON T-950 (4AI,2AO,14DI,6DO) programmable logic controller |
Physical Feature |
Dimension |
169 x 134 x 63 mm (W x H x D) |
Weight |
0.5 Kg |
Mount |
Standard rail or bolts |
Working Temperature |
From -40ºC to 85 ºC |
I/O Feature |
Built-in digital inputs |
14 (optical coupling isolated input,one of them can be used as high speed counters) |
Built-in digital outputs |
12 (transistor Output) |
Built-in analog input |
4 (0-20mA or 0-5V) |
Built-in analog output |
2 (0-20mA or 0-10V) |
Built-in high speed impulse counters |
2 single phase or 2 two phase(100KHz impulse counting) |
Built-in high speed pulse output |
4 (100KHz impulse output) |
I/O state indicators |
44 pcs. |
Power Supply and power output |
Power Supply |
Rated Voltage |
220V AC or 24VDC |
Range |
From 90V AC to 250V AC, 50Hz,24VDC |
Isolated power output |
Rated Voltage |
24VDC |
Rated Current |
0.2A |
Output resistance |
About 20 Ohm |
Terminals |
VOUT(24V+,24V-) |
Communication |
Ethernet |
1 port (RJ45, 10M/100M adaptive,MODBUS TCP protocol) |
RS232 |
1 port (COM0, for internal test) |
RS232/485 |
2 port
l COM2, DB9 RS232 direct connect
l COM1, DB9 RS485(pin 2 is B, pin 3 is A)
Default settings: MODBUS RTU Slave, Bode rate 19200,1,8,E, address 1 |
DIP |
8-bits
Set DIP ON will force the IP address to the default
192.168.1.99 |
Run/stop switch |
2 switches
run/stop(in stop mode, only PLC program stopped) |
Communication indicator |
6 pcs.
l RUN indicator(flashing)
l COM1 COM2serial port communication indicator(flashing when communicating)
l LINK Ethernet linking indicator
DATA Ethernet communicating indicator |
Memory |
User program memory size |
2M Byte |
User data memory size |
2M Byte |
Back-up battery data memory |
1K Byte |
Data back-up time |
1 year |
CPU feature |
CPU frequency |
48 MHz |
Max. 72 MHz |
Minimum instruction processing time |
10 millisecond |
|
INT and Bit operation |
From 1 to 4 microsecond |
|
Floating-point algorithm |
About 40 microsecond |
|
10ms timer quantity |
No limit |
|
Clock |
Internal clock |
Back-up battery |
Order Requirements:
Please confirm and choose the following information when you are ready to place order :
Working Power Supply |
220V AC 50HZ |
Please confirm which one |
9-36VDC |
DC input |
0-20MA(default setting) |
Please confirm which one |
0-5V |
DC output |
0-20MA(default setting) |
Please confirm which one |
0-10V |
DI Voltage |
24V/DC |
|
Communication |
1 RS485 port,1RS232 port (default setting) |
Please confirm which one
|
2 RS485 port |
