| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifespan: |
100, 000hours |
| Warranty: |
2 Years |
| Factory Price: |
Available |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Pixel Configuration: |
1r1pg1pb |
| Average Power Consumption: |
352 |
| Pixel Density: |
3906 |
| Application: |
Traffic Guidance |
Product Description

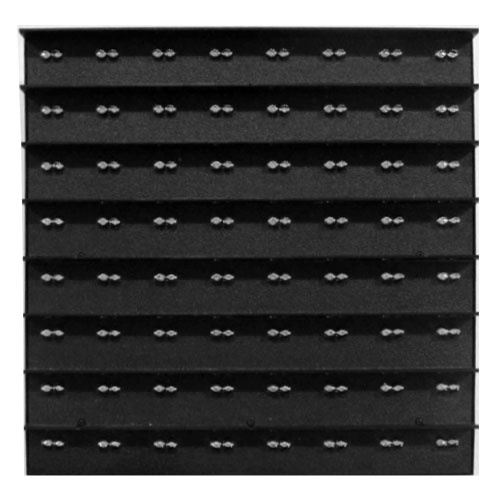

Traffic guidance LED screen Highway Billboard
specification:
Part Number |
HERO-ODS4F |
Resolution |
16(H)×16(V) |
Pixel Pitch |
16mm |
LED Configuration |
1R1PG1PB DIP |
Pixel Density |
3906 pixels/ m2 |
Module Size |
256*256mm |
Driving IC |
MBI5024 |
Driving Method |
1/8 |
Cabinet Weight |
50kg/sq.m. |
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
0.1mm |
Optical Ratings |
Brightness |
10500cd/ m2 |
View Angle |
110°/70° |
Gray Scale |
16 bits |
Display COLOR |
281 Trillion |
Brightness Adjustment |
0~100% |
Power Supply |
Operation Power |
110V /60Hz ,220V/50Hz |
Max. Power Consumption |
880W/ m2 |
Average Power Consumption |
352W/ m2 |
Control System |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60fps |
Screen Refresh Frequency |
>600Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-20°~+60° |
Operating Humidity |
10~95% RH |
Operating Life |
100,000hours |
MTBF |
10000hours |
Protection Level |
~ |
Out of Control Rate |
<0.02% |
Description:
1. The screen's design with full consideration of outdoor usage, which adopts industrial standard, super high brightness (>5500nit) design, and able to provide precious information for drivers under blurry rainy weather.
2. The utilization of built-in wireless data transmission module helps achieve GPRS/3G long-distance real-time traffic information.
3. Equipping with intelligent control system, which enables automatic road information process and release, brightness control, temperature and humidity adjustment, supervision and warning for circulating condition. This realizes unmanned operation.
4. The built-in lighting protection device prevent our product from being burned due to lighting.
5. The sensitive control system automatically regulates the brightness of the display in accordance with the changes of light, greatly economizing electricity and reducing running cost costs.
6. Our product possesses IP65 protection level, which enables display working for you under rainy days.
7. High stability and long span.
8. Angle is small, to avoid light pollution.
Applications:
Widely used in Roads, highways, parking lots, pedestrian streets, intersections, electric power dispatch center, traffic command center, the military command center, space monitoring center, the city center and other high-definition display security monitoring sites.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
