| Prod Model: |
AF-D720-10C |
| Payment System: |
Bill,Coin,Credit Card(Optional) |
| Color: |
Black/White |
| Weight: |
320kg |
| Outside Demensions: |
H: 1933mm, W: 1306mm, D: 800 mm |
| Rated Voltage: |
110V/220V,60/50Hz |
| Capacity: |
About 340~800PCS |
| OEM: |
Available |
| Certification: |
Ce/FCC/ISO |
| Slections: |
50~70 |
| Usage: |
Market,Subway Station, Airport, School |
| Type: |
Food and Drinks |
| Environmental Condition: |
Semi-outdoor |
| Payment: |
Paper Money |
| Charge System: |
Coin and Note |
| Function: |
Cooling |
| Touch Screen: |
Touch Screen |
| Power-off Protection: |
With Power-off Protection |
| Extended Networking: |
Support Extended Networking |
| Change: |
With Small Change |
| Failure Self Detection: |
With Failure Self Detection |
| Condition: |
New |
| Customized: |
Non-Customized |
Product Description

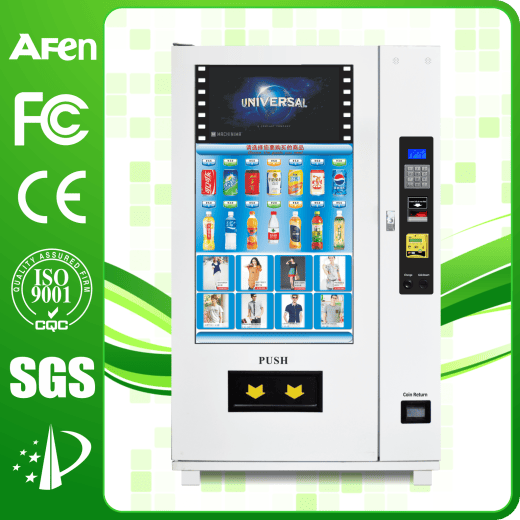

1. 55 inch Touch Screen Drink Vending Machine AF-D720-10C
Medium capacity
Dex port available
Built-in 46 " advertising Screen+19" touch Screen
Bill, Coin, Coin Dispenser(MDB Protocol)
Drop sensor system, guarantee the selected item is delivered to the customer or their money is returned
MaterialCold-rolled plates, Spray,
Dedicated freighter channel, vending dedicated spiral
Industrial-grade chip control board
Double heated glass for reduced condensation
Main feature
Black and white available
Stainless steel keyboard
Plug-touch connections
Modular integrated design
One-click replenishment
Flexibility to transform the selections
Big inventory space for convenient items supplement
Sales of goods: Bottles with beverage, candy, puffed food, chocolate and so on
OptionalRefrigeration and heating system
Remote control by GPRS, management software
LCD screen to display advertising
Bill acceptor and coin mechanism configured at factory
Card reader payment device
Customized language display for specific country
IC/ID Card management customers conveniently
Main function:Multi-price coin mechanism; Dollar bill acceptor; Foreign coins acceptor; Change in seconds.
Vend a variety of selections in the same machine.
Individual pricing per selection. Price can be set freely.
Compact size: Allow more mobility, more locations; Indoor or outdoor.
To stop the machine running the crash phenomenon. Anti interference design of hardware circuit using EMC and compatible design, to ensure that the machine in any with a source of interference conditions of normal operation.
Removable and adjustable trays.
Sturdy steel construction with durable powder coat painted surfaces for years of service.
Large display window shows selections, large merchandise view space.
Selfcheck function avoids crash in machine running. Hardware circuit is interference and is EMC compatible, making sure that the machine operate in any surroundings.
When selections of the machine are out of stock, it can check by itself
With automatic identification capability, could judge the true or false of currency and accept different curency.
Payment system: In line with the MDB standard, supporting change giver, coin selector, bill validator and cashless payment system.
Single or Double spiral available and flexible trays, the spiral also can be customized.
Label holder providing ease for putting price lables, price can be set freely
Vend a variety of snacks foods and canned, bottled, boxed, bagged and other beverages with high economic returns.
| Model | TCN-D720-10C( Drink Vending Machine ) |
| Outside Dimensions | H: 1933mm, W: 1306mm, D: 800 mm |
| Weight | 320kg |
| Kinds of Selling | 50~70 |
| Storage Capacity | About 340~800pcs
(according to size of goods) |
| Cooling Function | Compressor refrigeration,4-12°C(adjustable) |
| Rated Voltage | 110V/220V,60Hz/50Hz |
| Payment System | Bill,Coin,Coin Dispenser(MDB Protocol) |
| Power | 375W |
| Container quantity | 10pcs/20ft, 22pcs/40ft |

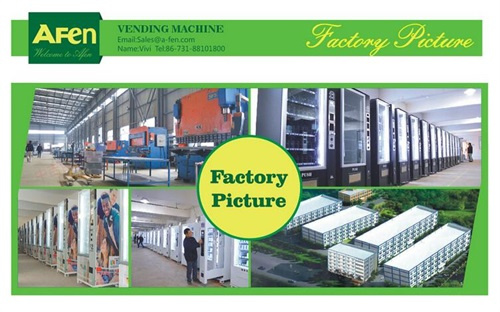

2. Factory
3. Export world
4.Certification

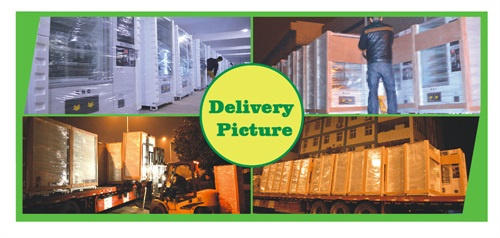

5. Delivery Picture
Hunan Aifeng Intelligent Equipment Co., Ltd. is engaged in researching and developing vending machine factory. It has two brand, TCN vending machine and AFEN vending machine. Our company is focused on the vending machine that self-help system such as research and development and is committed to all kinds of production and marketing of vending machine equipment, strong technical strength, strong manufacturing capacity.
Company is located in #27 leifeng road of Wangcheng, Changsha City, Hunan Province, China. There has a beautiful environment, convenient traffic. The company covers an area of 15000 square meters and owns workshop 22000 square meters. Its fixed assets are fifty million.
Since always, companies with science and technology innovation as enterprise development power, constantly introduce domestic and foreign advanced technology and experience and has established advanced production means and reliable quality assurance system. It has passed the international ISO9001 quality system certification and CE certification, etc.
Currently, Zhongji vending machine has been successfully to expand all over the world. Its superior quality, excellent performance, excellent cost performance that won the trust of customers, and was deeply loved by the masses of customers.
