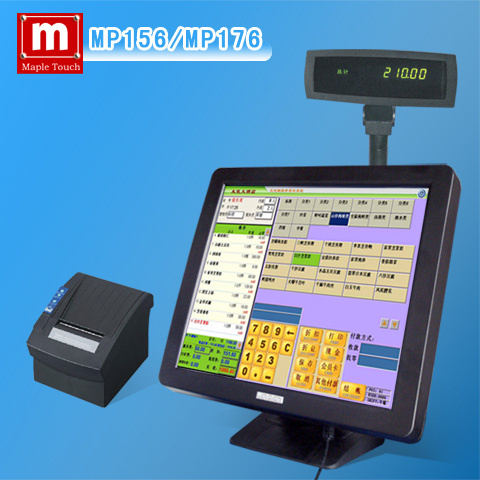

| Prod Model: |
MP156, MP176 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
15" 17" |
| Type Of Touch Screen: |
Maple Touch 5-R Resistive Touch Screen |
| Hostboard: |
Intel 1037u |
| Certification: |
FCC |
Product Description
Display Area15
Display Resolution1280*1024
Brightness250CD/M2
Color Resolution16.7M
Contrast Ratio1000: 1
Touch ScreenMaple Touch Capacitive Screen(5-point-touch at same time under Windows 7/8)
MotherboardIntel 1037U
CPUIntel Cerelon dual core 1.8G
RAM2xDDR3 1066 MHz SO-DIMM Max to 4GB
Memory1*2.5 " SATA II HDD-320G/SSD-32G
ChipsIntel NM10 Express Chipset
BIOSAMI 16MB Flash ROM
H/W MonitorCPU voltage/ CPU & System Temperatre
Expansion1X Mini Pcle, 1X Pele X1
IO
IO InterfaceDC 12V Input
1*VGA
4*COM Port (4*RS232)
1*LAN
1*Audio
7*USB
1*LPT
1*PS2 (KB/MS)
Expand SlotPCI-Express X1 Slot
Mini-ITX Mainboard
Circumstance Condition
Operation Temperature-10~60
Store Temperature-30~80
Operation Humidity20~85%
Shockproof performance3 Grms/5~450Hz
HardnessOperating 20G(11ms), Non-operating 80G with HDD
Operating 80G(11ms), Non-operating 320G with SSD
Product Certification
Power Supply
Input100-240VAC ~ 50~60Hz 1.5A
Output12VDC 5A MAX (dual screen 7A)
Outline Dimensions
MaterialMetal ( Aluminum )
InstallationWall mounting(VESA holes), Desktop
Net weight/Gross Weight
Outline Dimension(LWH)403*2330*72MM
|
Display Area |
15 |
|
|
Display Resolution |
1280*1024 |
|
|
Brightness |
250cd/M 2 |
|
|
Color Resolution |
16.7M |
|
|
Contrast Ratio |
1000:1 |
|
|
Touch Screen |
Maple Touch Capacitive Screen(5-point-touch at same time under Windows 7/8) |
|
Motherboard |
Intel 1037U |
|
CPU |
Intel Cerelon dual core 1.8G |
|
RAM |
2xDDR3 1066 MHz SO-DIMM Max to 4GB |
|
Memory |
1*2.5 " SATA II HDD-320G/SSD-32G |
|
Chips |
Intel NM10 Express Chipset |
|
BIOS |
AMI 16Mb Flash ROM |
|
H/W Monitor |
CPU voltage/ CPU & System Temperatre |
|
Expansion |
1x Mini Pcle,1x Pele x1 |
|
IO |
|
IO Interface |
DC 12V Input |
|
1*VGA |
|
4*COM Port (4*RS232) |
|
1*LAN |
|
1*Audio |
|
7*usb |
|
1*LPT |
|
|
1*PS2 (KB/MS) |
|
Expand Slot |
PCI-Express x1 Slot |
|
Mini-ITX Mainboard |
|
Circumstance Condition |
|
Operation Temperature |
-10~60 |
|
Store Temperature |
-30~80 |
|
Operation Humidity |
20~85% |
|
Shockproof performance |
3 Grms/5~450Hz |
|
Hardness |
Operating 20G(11ms),Non-operating 80G with HDD |
|
Operating 80G(11ms),Non-operating 320G with SSD |
|
|
|
Product Certification |
|
|
Power Supply |
|
Input |
100-240VAC ~ 50~60HZ 1.5A |
|
Output |
12VDC 5A MAX (dual screen 7A) |
|
Outline Dimensions |
|
Material |
Metal ( Aluminum ) |
|
Installation |
Wall mounting(VESA holes)\Desktop |
|
Net weight/Gross Weight |
|
|
|
Outline Dimension(LWH) |
403*2330*72MM |
|
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
