| Prod Model: |
NL-32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
32, 42, 46, 50, 55, 65, 70, 84 |
| Technology: |
Infrared |
| Materials: |
Aluminum Frame |
| Brand Name: |
Riotouch |
| Touch Objects: |
Finger Touch, Teaching Points, Any Opaque Objects |
| Folded: |
No |
| Certificates: |
CE, FCC, RoHS |
| Warranty: |
3 Years |
| Software: |
Free Educational Software and Update |
| Screen Size: |
30-40 Inches |
| Aspect Ratio: |
4:3 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Customized: |
Customized |
Product Description

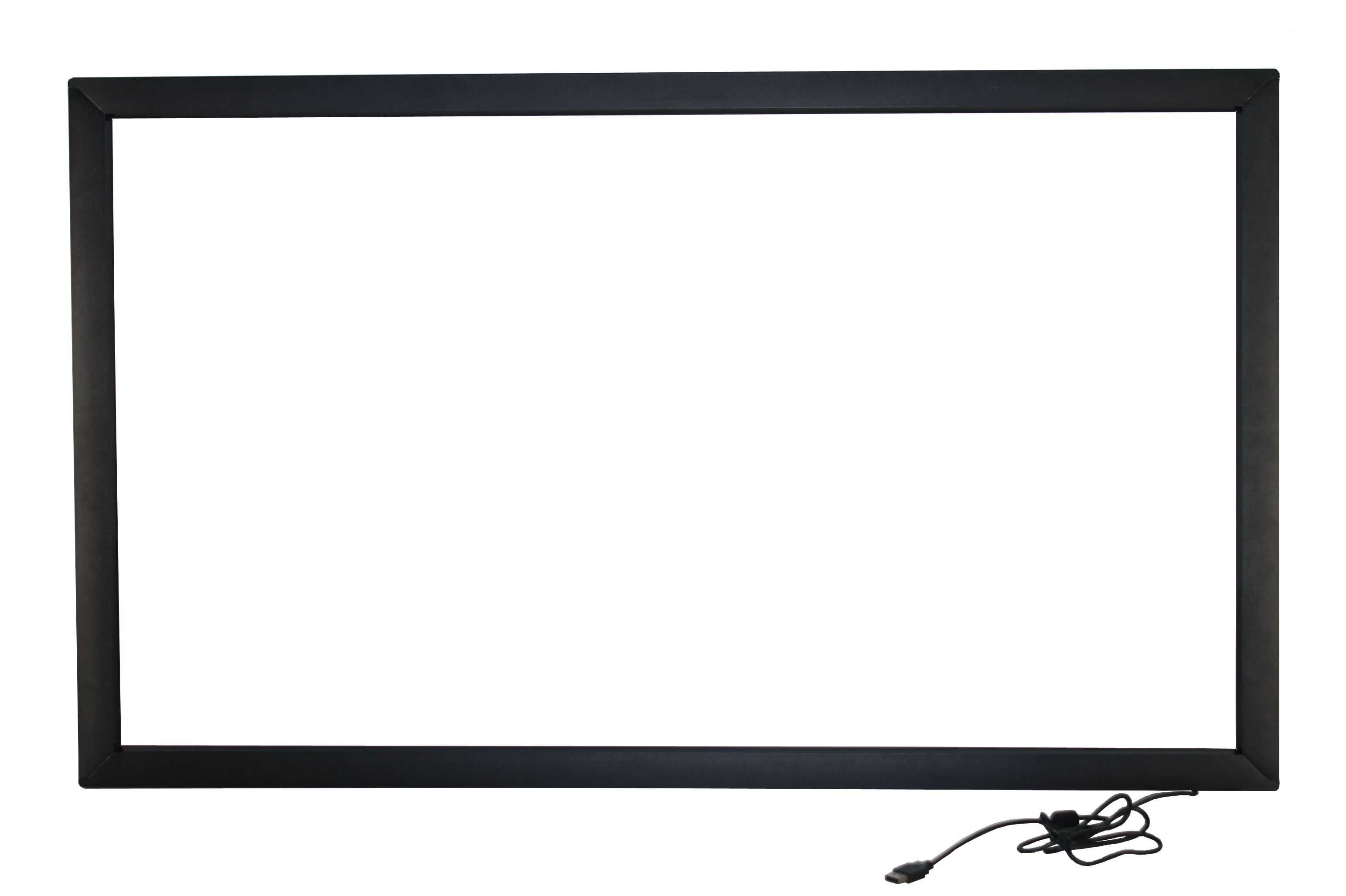

touch screen overylay make your monitor have touch fuction
Features:
1. Single touch or dual touch or 10 points touch
2. Support Linux & Mac Os & Win7 & Windows 8 multi-touch & Microsoft surface
3. Gesture Control
4. Supply SKD and OEM
5. Apply to CE & RoHS & FCC
6. Powerful magnetic white board software free with whiteboard
7. Good quality & best prices & best services
8. Different Color for choose
Description:
1. ABS frames make the board look very Fashion and cheap, and there are many frames colors for optional;
2. Aluminum frames make the board more hard and upmarket;
3. Don't need the special pen, fingers, teaching point or any other opaque object could write on it;
4. Driver free, it's USB plug-and-play device;
5. Powerful education software make the teaching much easier
6. Multi-touch and Single-touch switch freely;
Performance |
| Resolution(Interpolation) | 4096*4096 |
| Linearity Error | 1.5mm |
| Responsible time | 8ms |
| Response Speed | <20ms |
| Input Method | Finger, teaching point, or opaque objects |
| Touch Times | Unlimited |
| Touch Activation Force | No minimum touch activation force is required with IR touch technology |
| Minimum Touch Object | 5mm |
| Environmental |
| Temperature | Operating: -20°C ~ 70°C |
| Storage: -40°C ~ 85°C |
| Relative Humidity | Operating: 90%(noncondensing at max 40°C) |
| Storage: 90%(noncondensing at max 40°C) |
| Altitude | Up to 7,000m |
| Life Time | At least 7-year |
| Electrical |
| Operation Voltage | Typical +DC 5V, +4.75V to +5.25V |
| Power Supply | USB, power ripple max.200mV rms |
| Power | <2W, operating current<200mA |
| Agency Approvals | CE, FCC Class B, RoHS |
| Accessories |
| Wall mount brackets | 8 |
| Installation guide | 1 |
| Extension USB cable | 5m for standard |
| IWB Pen without ink | 3 |
| CD with the software | 1 |
| Teaching point | Optional |
| Mobile stand | Optional |
Our touch frame with 3 years warranty and hope we can help you with these products.
Jasmine
Mobile:(86)18124598500
RioTouch is a professional manufacture of infrared touch screen, infrared frame, interactive whiteboard and touch screen kiosks. Also we have an enthusiastic team to provide you with solutions in many fields like hometheater, education, corporation, training and games. We aim to make everything easy and help you to turn your ideas and designs into reality.
RioTouch future research willmainly concentrate in the visual multi-touch technology development, interactive educational software development, interactive applications softwaredevelopment.
Riotouch is committeed to be:
1. Professional provider of human-computer interactive techniques.
2. China leading Infrared interactive whiteboard technology solution provider.
3. China leading infrared whiteboard SKD supplier.
4. China leading touch screen manufacturer
