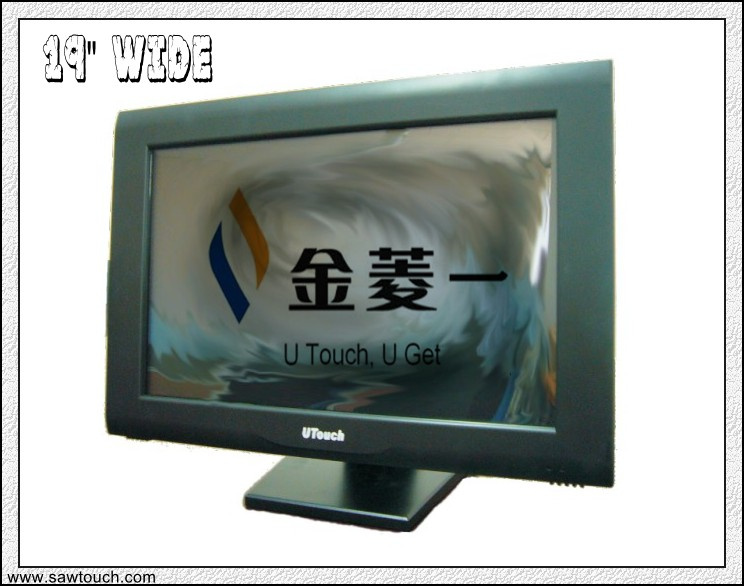

| Prod Model: |
UTM-19W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
19 Inch |
| Wide Screen: |
Yes |
| Screen Size: |
19" |
Product Description
Product Description
Designed and optimized for touch, this display provides the most cost-effective touch solutions for system integrators. They provide reliable, durable operation. With Utouch's proven built-in, not add-on technology, it integrates the UTouchs unique patent SAW DustProof or WaterProof touchscreen. Anti-vandal touchscreen is available for special applications. UTouch SAW LCD touchmonitor will make your project a design success.
Benefits:
Economical and reliable
Sealed touchscreen against dirt, dust and water
Dual serial/USB interface
Removable base and VESA mounting option
Digital on-screen display (OSD)
Internal power supply
Typical Applications:
Retail
Point-of-Sales(POS)
Countertop Kiosk
Hospitality
|
Specifications |
|
Touch Technology |
Surface Acoustic Wave (SAW) |
|
Mounting Options |
Metal open frame |
|
Optimal (Native) Resolution |
1280x1024 @ 75Hz |
|
Sychronization Range |
30-80kHz horizontal, 60-75Hz vertical |
|
Brightness (with SAW touchsreen) |
276cd/ m2 |
|
Pixel Pitch |
0.264x 0.264mm |
|
Plug& Play |
VESA DDC1/2B |
|
On-Screen Display (OSD) |
Standard OSD board |
|
Temperature Range |
Operating: 0° C to 50° C, Storage: -20° C to 60° C |
|
Humidity |
Operating: 10%-90%, Storage: 5%-90%, non-condensing |
|
Power Supply |
External: 100-240V, 50-60Hz |
|
Touchscreen Interface |
Serial (RS232) or USB |
|
Brightness |
300 cd/m 2 |
|
Viewing Angle |
Horizontal(left/right): 160° (80° /80° ) |
|
Vertical (up/down): 160° (80° /80° ) |
|
Contrast Ratio (typical) |
800: 1 |
|
Pixel Response Time |
8ms |
|
Input Video Format |
Analog (VGA) |
|
Surface Durability |
More than 50, 000, 000 times at one point without failure |
|
Surface Hardness |
Mohs rating of 7 |
|
Touch Point Drift |
No drift, one-time calibration is enough |
|
Response Time |
Less than 16ms |
|
Multi Point Touch |
Software identify |
|
Dust/water Proof |
Dust/water-proof solution provided by original manufacturer |
|
EMI |
Unaffected by other peripherals around the site |
|
Operation Altitude |
3000m |
|
Cleaning |
Glass Cleanser or water |
|
Touch Controller |
Internal |
|
Certification |
CE, FCC |
Since our foundation in 1999 and branded in "UTouch", Beijing IT01 Co., Ltd. Is a professional manufacturer focusing on researching and producing SAW (Surface acoustic wave) touch screen, touch monitor, touch kiosk and AD player (for building and car)with our own patent. We offer the largest selection of touch screen technologies, SAW touch screen, touch monitor and carefully design each product for the demanding requirements of diverse applications, such as industrial, medical, POS, kiosks, retail, hospitality, transportation, office automation, and gaming.
We are located in Beijing Zhongguancun High-tech Development zone, with such an advantageous technical and human resources, among the 20 R&D personnel, 95 percent have achieved a bachelor's degrees and even higher. Experienced electronic engineers and specialist technical personnel guarantee the technical services.
Up to now, we have expanded our product line with a series of new applications: Safe Touch, Dust proof, Kiosk Touch, Bevel Touch, and integrated touch monitors. We were granted ISO9001 and CE, FCC certifications. Our products had been sold to many countries all over the world such as Korea, Russia, Egypt, KSA, Ireland, Netherland.
Due to perfect cooperation with the customers from domestic and abroad, and hard working of all staffs, Beijing IT01 Co., Ltd has been growing by leaps and bounds. We would like to extend our warmest invitation to all overseas and mainland customers who want to pay a visit, provide suggestions or seek business co-operation.
