| Prod Model: |
YD-BM-10(PLC) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Yd-Bm-10 |
| Total Nr.of Spindle: |
10 |
| Glass Thickness(mm): |
5-19 |
| Min.Glass Size(mm): |
150×150 |
| Bevel Angle(Degree): |
3-30 |
| Max.Bevel Width(mm): |
35 |
| Glass Speed(M/Min): |
0.8-3 |
| Power(Kw): |
23.5 |
| Weight(Kg): |
3500 |
| Name: |
Glass Beveling Edging Machine |
| Type: |
Glass Beveling Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description

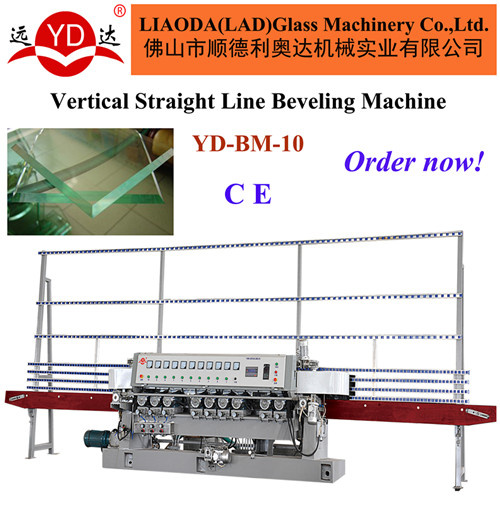

Vertical Straight Line Beveling Machine
Glass Machine Specifications
1. PLC controller
2. 10 wheels with pneumatic polishing
3. High effeciency synchronized feed spindles
Glass machine
a. Thanks to pneumatic adjusting for polishing wheel, the machine can polish glass with fine and clear surface.
b. With MCU controller, all processing data are set and adjusted on the screen, which greatly facilitate production.
Here are the basic information:
Module: YD-BM-10
A. Wheel number: 10pcs
B. Power: 23.5KW
C. Weight: 3500kg
D. Pressure: 6kg/cm2
E. Glass thickness: 5-19mm
F. Bevel angle: 3-30 degree
G. Max. bevel width: 35 mm
H. Glass speed: 0.8-3 m/min
I. Min. Glass size: 150x150mm
J. Out dimension: 7.2x1.2x2.6m
K. Compress air consumption: 1It/min
Warranty: one year
Wheels arrangement also can be changed as requirement.
Main Specification:
| Model Number | YD-BM-9 | YD-BM-10 | YD-BM-10S | YD-BM-10-45 | YD-BM-11 | YD-BM-13 |
| Total nr.of spindle | 9 | 10 | 10 | 10 | 11 | 13 |
| Glass thickness(mm) | 5~19 | 5~19 | 5~19 | 5~19 | 5~19 | 5~19 |
| Min.glass size(mm) | 150×150 | 150×150 | 30×30 | 150×150 | 150×150 | 150×150 |
| Bevel angle(degree) | 3~30 | 3~30 | 3~45 | 3~30 | 3~30 | 3~30 |
| Max.bevel width(mm) | 35 | 35 | 35 | 35 | 35 | 35 |
| Glass speed(m/min) | 0.8~3 | 0.8~3 | 0.8~3 | 0.8~3 | 0.8~3 | 0.8~3 |
Compressed air
Consumption(It/min) | <1 | <1 | <1 | <1 | <1 | <1 |
| Power(kw) | 21 | 23.5 | 25 | 23.5 | 25 | 30 |
| Outer dimension(m) | 7.0×1.2×2.6 | 7.2×1.2×2.6 | 7.2×1.2×2.6 | 7.2×1.2×2.6 | 7.2×1.2×2.6 | 8.0×1.2×2.6 |
| Weight(kg) | 3000 | 3500 | 3500 | 3500 | 4000 | 4500 |
Guarantee And After-sale Service:
One year guarantee for whole machine.
24 hours technical support by e-mail.
Ues-friendly English software,user manual and detailed Videos/CD.
We will provide all spare parts needed for maintenance of the equipments.
Profrofessional after-sales service team support face-to-face trainning and installation to customer's factory.
Why choose Ladglass?
1. Widely used in different industry
2. High precision and reputation
3. CE Certificate High quality parts
4. Competitive price
5. Fast delivery
6. Best service
Welcome your inquiry and we will try our best to help you choose a right machine!
