| Prod Model: |
WS-GOT-300DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

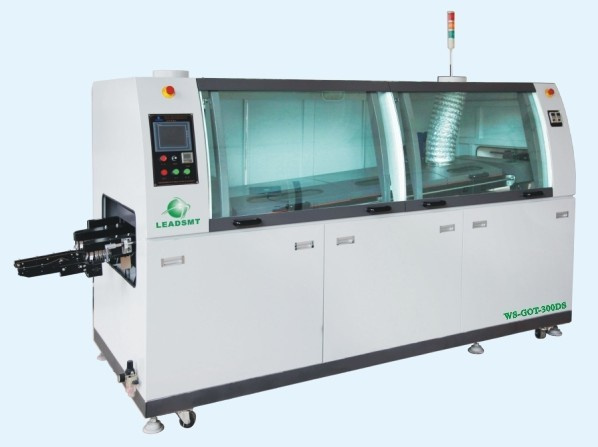

Model: WS-GOT-300DS
1. Windows XP or touch-screen operation software with Chinese and English alternative available, whole machine under integration control can display the failure and save all production data for further analysis.
2. External streamline design and modularized design inside is not only nice-looking but also easy for maintenance.
3. Flux sprayer creates good atomization with low consumption of flux.
4. Turb-fan exhausting with shielding curtain can prevent atomized flux spreading to the preheating zones and ensure the operation safety.
5. Modularized heaters in preheating convenient for maintenance; Heating under pid control achieves stable temperature and smooth profile, which can solve the difficulty during lead-free process.
6. Soldering pot employing high-strength and distortion-free cast iron produces super thermal efficiency. Wave spouts made of titanium ensures little thermal distortion and low oxidation.
7. With automatic timing start-up and power-off of whole machine.
Specifications
Dimensions; L3650*w1200*h1650mm
Weight(kg); Approx: 1200kg
Startup power; 20kw
Run power; 6kw
Control method; PC, touch-screen
Power; AC380V 50Hz/60Hz
Spray system
Push type; Air cylinder
Spray pressure; 0.3-0.5mpa
Flux control; 0-100ml
Ducting dimensions; D 200mm
Exhaust; Up exhaust
Pre-heating system
Preheater mode; IR tube
Preheater zone number; 3
Preheater lenght; 1500mm
Preheater temperature; 25'c~250'c
Warm up time; Approx. 15min
Conveyor system
PCB width; 50-300mm
Conveyor direction; L-r
Conveyor speed; 0-2000mm/min
Conveyor high; 750± 20mm
PCB high; Top 120mm bottom 15mm
Speed control; Frequency
Finger; Dual hook finger
Conveyor angle; 4° -7°
Solder pot system
Solder wave driver; Motor drive
Solder pot material; 316sus
Pot power; 9kw
High temperature; 350'c
Pot capacity; 200-250kg
Wave motor power; 1/2hpx2 3p220vac
Solder warm-up time; Approx: 200min
Cooling system
Cooling method: Forced air
Finger cleaning system: Auto
Package
Wood and vacuum package
Time of delivery
Delivery: 30 days after receive down payment
Pricing:
Our prices are firm for 30 days, f. O. B. Factory, shenzhen, China.
Service:
Normal service is provided from our factory in shenzhen, China.
Terms:
50% down payment with the purchase order, 50% prior to shipment
Warranty:
Technical devices company warrants all component parts or subsystems for a period of one year from date of purchase against all defects in material will replace during the warranty period.
