| Prod Model: |
NT9002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Of Screen: |
19'' |
| Color: |
Silver Gray+Blue |
| Resolution: |
4096x4096 |
| Response Time: |
5 Ms |
| Touch Panel: |
Resisitive |
| Type: |
Touch Screen Panel AD Player |
| Application: |
Indoor AD Player |
Product Description

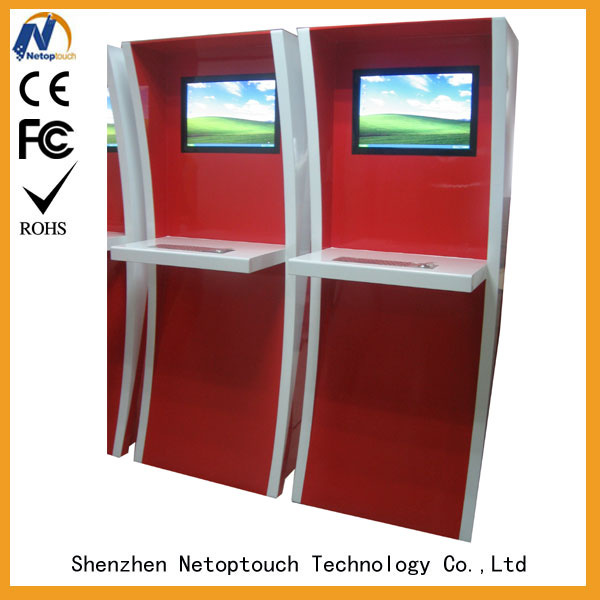

This kiosk is special touch advertising LCD kiosk for our client. The user could get service and related information by operating this kiosk&touch the kiosk easily. For the seconed LCD display, you could take is as an advertising player to play advertisement.
Overview:
1. 19''durable steel touch advertising LCD kiosk cabinet
2. Powerful Embedded computer
3. 19'' grade A+ TFT LCD monitor
4. Operating system, wired internet access
5. Metal keyboard with touch pad
Notes: Except OS, wired internet access, the above components could be order seperately, you are welcome to order monitor only, or cabinet only. More information, please feeel free to contact me.
Parameter:
1) Touch Panel(SAW&Resistive touch screen available)
A. Infrared Touch screen
B. Resolution: 4096*4096
C. Deviation of Error: ± < 1.0%
D. Surface Hardness: Mohs' hardness rating of 7
E. Hitting Life Expectancy: 50, 000, 000 cycle times
F. Operating Force: Touch force less than 100g(adjust allowed)
2) 19''Grade A+ TFT LCD monitor
A. Resolution: 1280X1024
B. Brightness: 300CD/m2
C. Contrast ration: 1000: 1
D. Contact Bounce: 5ms
E. Lifelong: More than 50 000 hours
F. Ratio: 4: 3 or 16: 9
3) Powerful Computer(update available)
A. CPU: Intel E3400 CPU, Asrock G41 motherboard or Intel Atom D525 1.8GHz CPU with industrial motherboard
B. Hard disk: Seagate 250GB(optional), SSD available.
C. RAM: Kingmax DDRIII2GB(optional)
D. Ports: USB ports, RS-232 ports ports for mouse, screen,
Keyboard, RJ 45 interface, 10/100m internet card, USB port
E. Integrate video, Discrete Graphics card, cooling fan, 2 SRS loader speakers
F. Greatwall power supply, support 100V~240V voltage
4) kiosk Frame&enclosure&case&body:
A. Steel frame, 1.5mm cold rolled steel, 2.0mm available.
B. Build in power control panel, and Hi-Fi-speaker.
C. RJ45 interface for internet connect.
The following devices are available:
1. High quality digital Camera, Webcam
2. Bluetooth connection, 3G modem, GPRS, WiFi
3. Control System(CPU / memory / hard disk)
4. Card Reader: RFID card reader, Non touch card reader, IC card reader, Magnitci card swipe
You are welcome to require to add one of the above devices, or some of the above devices or all of the above device. One color~4 color available.
Test process:
Before we send the kiosk to you, in order to make sure the kiosk run well after you get it, we will test to run it with not less than 24 hours for each kiosk.
Warranty
1.1 year warranty for enclosure.
2.1 year warranty for electrical parts
3. For mass goods, we will offer some free spare parts of electrical device.
Pay terms: We accept TT, Western Union, LC(above 30, 000 USD), Escrow. Usually 50% of the total payment as deposit.
Notes:
1. To Saudi Arabia and UAE, CO and SASO is necessary.
2. To Africa countries, there are few ships.
To get more information, warm welcome to cotact us,: ).
