| Prod Model: |
TS8623 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Combination: |
Bluetooth |
| Placement: |
Dashboard |
| Certification: |
CE |
| Voltage: |
12/24V |
| Type: |
Build-in GPS |
| Video Output: |
2 RCA |
| Audio Output: |
L/R Channel |
Product Description

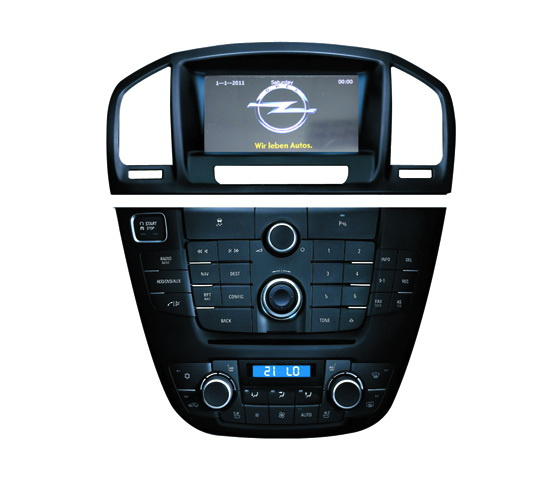

Touch screen car DVD with GPS for Opel Insignia
Optional: Built-in iPod, RDS, ISDB-T, DVB-T MPEG2
Key features:
1. 8 inch 16: 9 800*480 digital high definition TFT LCD touch screen
2. Built-in GPS navigation system
3. Build-in Bluetooth for hand free (Coming Tel No. Display function & Call out directly by touch screen)
4. SD card slot, support MP3/MP4/DIVX/WM etc
5. Compatible with MP3/MP4/DVD/VCD/CD/CD-R/DIVX/CD-RW etc
6. With excellent mechanical anti-vibration and electronic shock protection
7. Uniquely designed circuitry including standby function to increase battery durability
8. Adjustable parameters can be memorized automatically, and resume back to the default value
9. 3D interface make operation to easy
10. Real time clock function
11. One channel video input, two channel video output; Two channel audio input, three channel audio output
12. Dualzone function (lister radio/CD while using GPS)
13. 30 preset radio stations
14. Multi-function OSD menu
15. Small light available on the button of the panel
16. Fluorescent keys available for the remote control
17. Rearview mirror available
18. Original Canbus system for steering wheel control
19. Built-in TV tuner
20. English/Arabic/Russian/Portuguese/Italian/Hebrew/Turkish/Czech languages etc are available
21. Built-in iPod (optional)
22. Built-in RDS (optional)
23. Built-in ISDB-T or DVB-T MPEG 2 (optional)
System parameters |
Working voltage |
DC 11V-14V |
Working current |
MAX 15A |
Standby current |
25 mA |
Video system |
automatic PAL/NTSC |
GPS specification |
Operation system |
WINCE 6.0 CORE |
Support map |
Garmin, Tomtom, IGO, Route 66 etc |
Processor |
SiRFatlasIV (ARM11) |
EMS memory |
64MB SDRAM |
Storage device |
128MB |
Display output |
CVBS+S-VIDEO output |
Audio output |
Stereo CD Quality |
Main frequency |
500MHz |
Support audio type |
MP3/PCM/WMA |
Support video type |
ASF/AVI/WMV/DIVX |
Chipset |
SIRF STAR 3 |
Frequency |
1.575GHz |
Channel number |
20channels |
Tracking sense degree |
-159dbm |
Position accuracy |
10m, 2D RMS, WAAS enable |
Velocity |
0.1m/s |
Data renewal rate |
1Hz |
Re-catching time |
average 0.1s |
Hot start time |
average 1s |
Warm start time |
average 38s |
Cold start time |
average 42s |
The biggest fixed height |
18000m |
The biggest velocity |
515m/s |
Power specification |
DV 12V, current< 500mA |
Consumption |
4.5W(12V/360mA), normal 3W(12V/250mA) |
DVD parameters |
Video output range |
1+10.2Vp-p(75Ω ) |
Disc spec |
diameter 12cm disc |
Compatible disc |
DVD/VCD/CD/MP3/WMA/JPEG/MPEG4 |
Amplifier parameters |
Testing voltage |
13.8V |
Maximum power output |
4× 45W |
Speaker impedance |
8Ω (4-8Ω acceptable) |
Audio parameters |
Track imbalance degree |
≤ 2dB |
Segregation degree |
≥ 45dB |
Frequency response |
20Hz-20KHz (± 3dB) |
Volume adjustment |
Low 100Hz± 7dB
Medium 1KHz± 7dB
High 10KHz± 7dB |
Radio parameters |
FM/AM frequency |
FM: 87.5MHz-108MHZ
AM: 522KHz-1620KHz |
Tune method |
PLL frequency complex tune |
Display method |
TFT Graphical User Interface OSD |
Storage quantity |
FM radio: 18channels
AM radio: 12channels |
Search method |
automatic/manual |
