Prod Model: |
CT-7014 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Phd Max: |
32GB SD/USB |
Audio: |
MP3 AAC Flac Ape |
Video: |
MPEG4 AVI RM Flv Asf WMV |
Certification: |
RoHS |
Video Output: |
Video |
Audio Output: |
Virtual 5.1 Channel |
Voltage: |
12/24V |
Placement: |
Dashboard |
Combination: |
iPod |
Resolution: |
1080P |

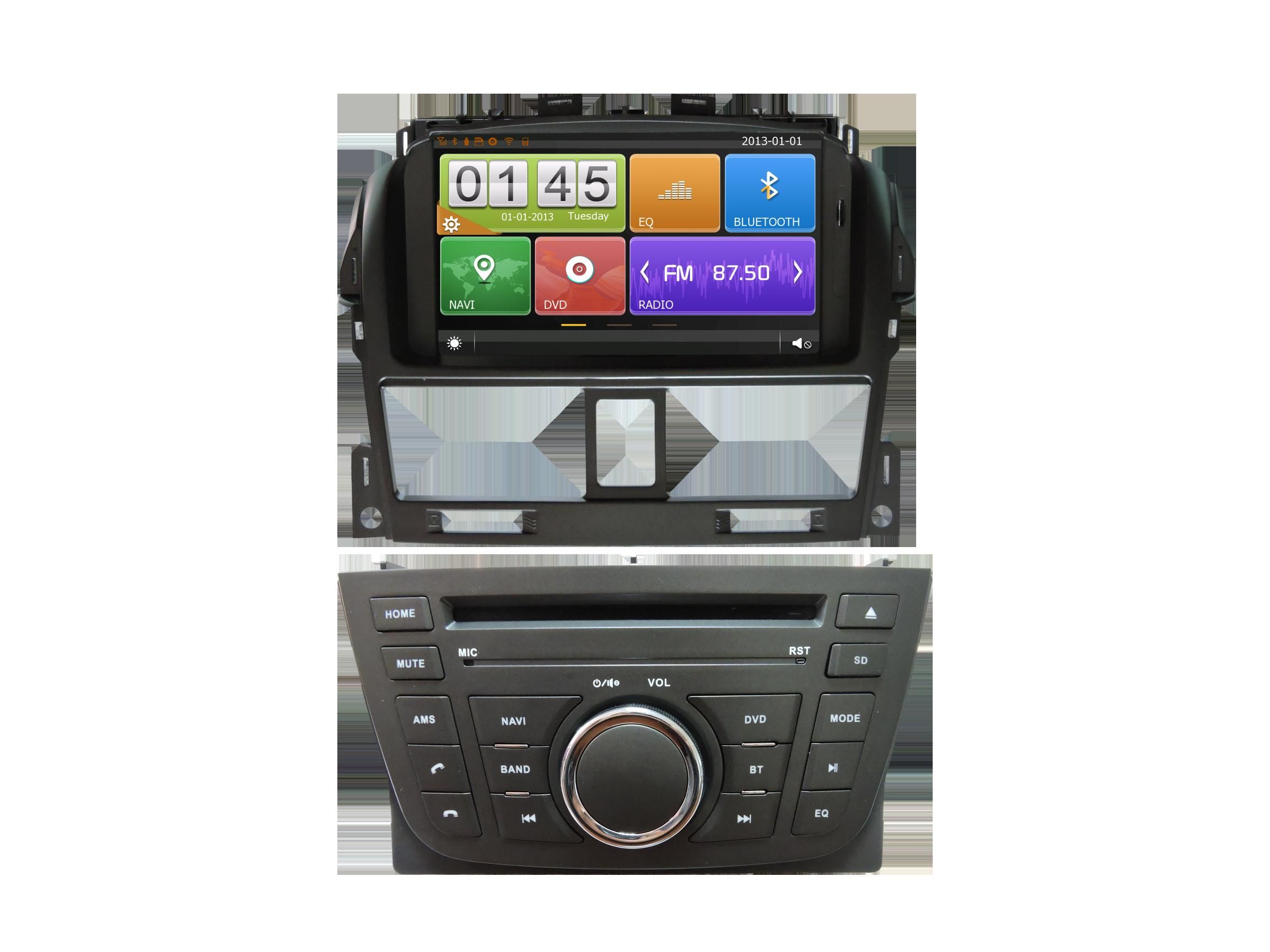

Product Description
Shortcut keys Function
Capactive Screen
Support 1080P HD Video Display
WIFI/3G Internet
DSP (Digital Signal Processing System)
FM/AM Tuner/RDS
DVD/CD
Bluetooth Function
GPS Navigation
Cartouch Brand Car DVD Spec. |
OS | WINCE6.0 |
CPU | Mediatek MT3360 Cortex A11 dual-core |
RAM | SAMSUNG DDR3 256MHz |
Flansh | 128MHz |
Radio | ST7706 FM/AM |
GPS | Mediatek MT3328 |
Screen | Capacitive and multi-touch screen (Original Hanstar Screen ) |
TFT drive IC | Mediatek 3360 |
Loader | Corepine |
Pick up | HITACHI 1200XH |
motor drive | MABUCHI |
Amplifer IC | TDA7388 |
DVD decoder IC | Mediatek MT3360 |
Power supply | 4*45W |
Bluetooth | Mediatek MT6622 |
Video Decoder | 1080P |
WIFI | External |
DVR | External 720P |
Multi media Parameters |
Music Format | MP3,WMA,AAC,WAV,FLAC, APE |
Video Format | MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,Sorenson SparK,Spark,VP8,AVS Stream |
Picture Format | JPG/BMP/JEPG/GIF/PNG |
Radio Parameters |
Frenqency Range | FM: 65.0MHz-108.0MHz |
Frenqency Range | AM: 522KHz-1710KHz |
Country | China,Europe,Russia,USA1,USA2,Japan |
DVD Parameters |
Vidio output range | 1.0V-1.2V(75Ω) |
Compatible Disc | DVD/DIVX/MP4/MP3/CD/VCD |
Amplifer Parameters |
Test Voltage | 14.4V |
Max output power | 4*45W |
GPS Parameters |
Operation system | |
Support Map | IGO/Navitel/Rout66/PolNavi, etc. |
Main Frenqency | 800MHz |
Map Solution | 800*480 |
WIFI Parameters |
Power supply | Vcc_5V |
Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
Interface type | USB2.0 |
Frequency | 2.4-2.484GHz |
Modulation | OFDM/DBPSK/DQPSK/CCK |
RF Power | 15dBM |
FeDom (ShenZhen) Limited - Subsidiary of FeDom (China) Limited, a developer, manufacturer and distributor headquartered in Shenzhen, P. R. China, offers a wide range of Car Electronics Products --- Car DVD with GPS Products and service to customers worldwide.
It is FeDom's mission to be the best provider of the electronics products in the global market. By offering superior products and complete service, the company seeks to share the enjoyable Digital life for worldwide end users.
In an ever-changing business environment, FeDom continues to be committed to customer satisfaction with high quality and innovative design. FeDom is devoted to developing superior goods and become a leading electronics products supplier in a global village.
Thank you for your concern and support.
