Touch Screen All in One-E Series (TSA-E)
| Price: |
US $ 999/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
TSA-E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Screen Size: |
50-60 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Customized: |
Customized |
| Resistive Touch Screen Type: |
Infrared Multi Touch |
Product Description
Description

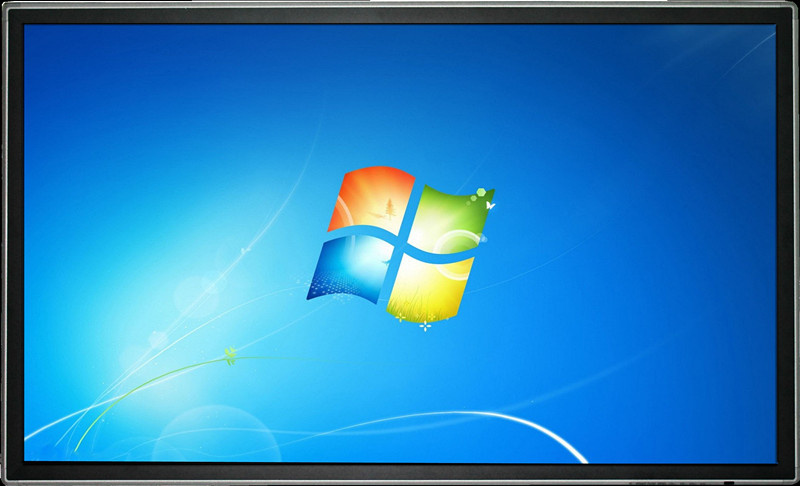

Touch Screen All in One is an interactive TV, built-in with LED, touch screen and PC. With the most popular technology infrared touch, we realize interaction between users and the monitor. It is also a LED interactive whiteboard without projector, using the LED to replace the projector for image presentation. With built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc.
Specifications
| Display |
| Resolution Ratio | 1920 X 1080P |
| Display Technology | LED |
| Viewing Angle | Full-view ( R/L 178 (Min.), U/D 178 (Min.)) |
| Color Depth | 8bit, 16.7Million colors |
| Luminance | 360CD/m2 |
| Contrast | 1200:1 |
Touch
| Touch Points | 2 4 6 10 |
| Touch Method | Finger, gloved hand or any other nontransparent object. |
| Touch Activation Force | No pressure needed |
| Touch Accuracy | ≥5mm |
| Touch Response Time | 3ms - 8ms |
| Report Resolution | 4096*4096 |
| Touch Durability | Unlimited |
| Environment | Operating temperature: 0°C to 55°C |
| | Storage temperature: -25°C to 85°C
Operating humidity:10% to 90% RH, non-condensing
Storage humidity: 10% to 90% RH, non-condensing |
| PC |
Configuration Code
CPU | SL,L,M,H
1037U,G860,I3 ,I5 |
| Memory capacity | DDR3: 2G,4G,8G (Optional) |
| Hard Disk | SATA2: 500G(Optional) |
| Display Chip | Integration Intel HD Graphics |
| Operating System | Windows 7, Windows7 gesture recognition |
| Ports |
| USB | USB*6 (front*1, side*5) |
| Video | HDMI*2 VGA*2 |
| Audio | Input*1 Output*1 Mic*1 |
| Network | RJ45(WiFi optional) |
| Others | PSP*2 TV*1 Power Port*1 |
| Product Dimensions |
| 42inch | 1028*665*92mm |
| 50inch | 1148.7*722.8*92mm |
| 55inch | 1320*820*92mm |
58inch
65inch
70inch | 1385*865*92mm
1385*865*92mm
1672.8*969.6*92mm |
INDESIGN(Innovative Design Technologies) is an innovator and leader in the fields of R&D, manufacture, sales and design in China, which provides interactive equipments and solutions for education and training, distance learning, conferencing, Audio and Video, business and government. We can also produce products to customers' specifications.
Indesign products include Interactive Whiteboard, Portable Interactive Whiteboard, Interactive Projector, Infrared Multi Touch Frame, Touch Screen AIO, Touch Table, LED AIO Interactive Projector and etc., combined with powerful software that provide easy-to-use, cost-effective collaboration and productivity solutions.
With Indesign products, groups can access and share information for people who need to meet, teach, train and present regardless of distance. Also enable communication which can ultimately expand the potential of what students, businesses and others can achieve.
Whether creating solutions for education and training, or embedded components for OEM customers, Indesign's unparalleled engineering know-how, exceptional technical expertise, and the highest-quality products will meet demands for corporate partners in a myriad of vertical markets.
In response to new requirements of the times, based on the principle of "Win-win, Innovation, Brave, Empressement", Indesign with all the strength to build a rapid growth, innovation guidance international technology corporations.
Indesign Spirit:
Honesty, Simpleness, Optimism, Innovation, Teamwork
