Product Description

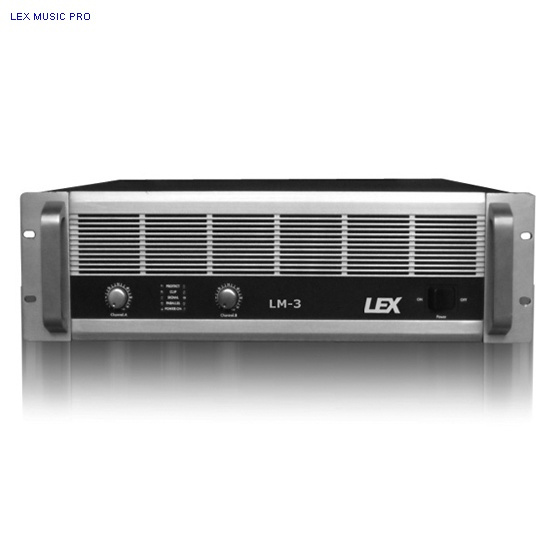

The LM-2/3 is a cost effective power amplifier representing the state-of-the-art in professional quality performance. It is optimized to deliver high levels of sustained power, extraordinary audio performance, and road-proven reliability.
The LM-2/3 is a "Heavy Duty" models specially designed to work as hard into 2 ohm as most. With 3 TIERS power rails, Class H design, the amplifier work in extremely high efficiency because of less current consumption and heat dissipation.
Features
Ø High-current toroidal transformers for greater 2 ohm power and low noise
Ø Selectable input sensitivity in voltage 0.775V RMS, 1.0V RMS and 1.4V RMS
Ø Switch for sub sonic filter 30Hz and below
Ø Switch for Earth link (on and off)
Ø Comprehensives Signal (SIG), CLIP (CLIP), Protect (PRO) and PAR/BRG (Parallel/Bridged) indicators to monitor amplifier working status.
Ø All signal inputs and outputs are on XLR male & female (2x XLR male & 2x XLR female)
Ø Binding post and Speakon outputs
Specifications
STEREO MODE LM-3 LM-2
8ohms (RMS/THD 1%) 1300Wx2 1000Wx2
4ohms (RMS/THD 1%) 2000Wx2 1700Wx2
2ohms 2200Wx2 1800Wx2
BRIDGE MONO MODE
8ohms 4000W 3500W
4ohms n/a n/a
Signal to Noise: >95dB
Input Sensitivity: 0.775Vrms/1.0Vrms/1.4Vrms
Gain @ 8homs: 38dB
Output Circuitry: 3-Tier Class H
Distortion: Less than 0.02%
Frequency Response: 20Hz-20KHz @ 8ohms ± 0.5dB
Damping Factor: (@100Hz) >300
Input Impedance Balanced: 20K/ Unbalanced 10K
Switching Rate: >20V/us
High Filter: 30Hz at -3dB
Cooling Variable-speed fan: Rear-to-front air flow
Input Connectors: Each channel XLR male & female
Output Connectors: Each channel speakon and binding posts
Rear Panel Swithches Input Configuration: Bridge/Stereo/Parallel
Input sensitivity: 0.755Vrms, 1.0VRMS and 1.4Vrms
Sub sonic filter: 30Hz and below
Earth link: On/off
Front Panel Controls Gain Attenuator: 0 to ∞ dB Power On/Off
Front Panel Indicators Signal: (SIG), CLIP (CLIP), Protect (PRO) and PAR/BRG (Parallel/Bridged)
Power: STY/on
Protection
Amplifier Protection Full short circuit, thermal, infrasonic, ultrasonic, VHF, vol. Gain gradually
Load Protection DC fault power supply, switching power supply under voltage,
Infrasonic -3 dB, 5 Hz
DC fault Power supply shutdown
Ultrasonic -3 dB, 85 KHz
Short Circuits active clip limiting, recover after limiting
Thermal no output at 95° C, re-work less than 95° C
Over Current auto limit
Physical
Shipping Weight (kgs) 29.6KG 28.7KG
SHipping Size( WxDxH mm) 575x605x210.
