| Prod Model: |
p20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
192mm*192mm |
| Cabinet Size: |
Adjustable |
| Lifespan: |
100,000 Hours |
| Warranty: |
2 Years |
| Free Maitenance: |
Available |
| Price: |
Factory Price |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
12mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Pixel Density: |
6944 dot / m² |
| Scanning Mode: |
1/2 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
Product Description

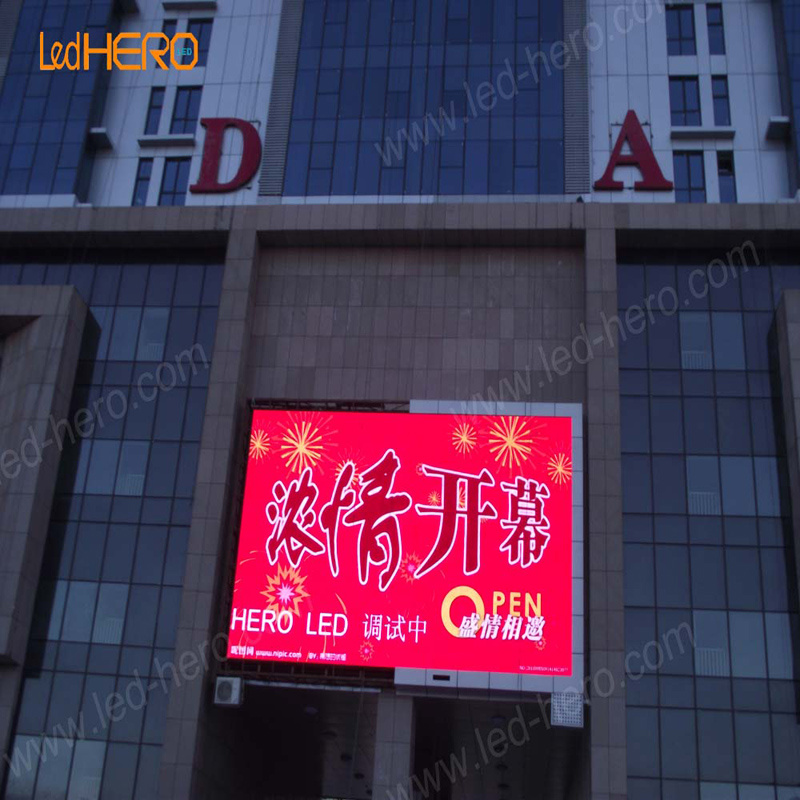

top selling module led p20 display
1. large viewing angle
2. Light weight
3, CE & ROHS Certificates
4.long lifespan
Specification
Driving Method |
1/2 Scan, Constant Current |
Cabinet Weight |
42kg/sq.m. |
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
Gap<0.5mm |
Optical Ratings |
Brightness |
>1,800cd/ m2 |
View Angle |
150°/150° |
Gray Scale |
8bits input, correction with 14bits |
Display COLOR |
16.7M |
Brightness Adjustment |
0~100% |
Power Supply |
Operation Power |
90~260V 50~60Hz |
Max. Power Consumption |
600W/ m2 |
Average Power Consumption |
200W/ m2 |
Control System |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60~85Hz |
Screen Refresh Frequency |
300~1000Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-20°~+60° |
Operating Humidity |
10~95% RH |
Operating Life |
100,000hours |
MTBF |
5000hours |
Protection Level |
~ |
Out of Control Rate |
<0.02% |
Packing and transportation
Environmental carton, plywood case, flight case USE professional packaging.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Stout box eliminate your worries in the transportation.
About HERO
7-year's experience in LED screen, our factory
has the ability of processing, researching and developing Led display to guarantee the prolificacy, strict quality control process to make sure that our led display is qualified.
Warranty
1. If the size is large, we usually require customers or dealers to send someone to learn for a week, including screen operation, maintenance. Company training and accommodation are free of charge.
2. If the size of outdoor full color led screen is more than 20 square meters , it must have all accessories.
3. Response within 2 hours, non-artificial, general fault is solved within 24 hours, acceptable failure will be solved within 48 hours.
