Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
With Remote Controller: |
Yes |
Type: |
Fixed-frequency Air Conditioner |
Capacity: |
27000-48000 BTU |
Usage: |
Room |
Indoor Machine Noise: |
>50dB |
Certification: |
BEB |
China Energy Efficiency Standard: |
Level 1 |
Cooling/Heating: |
Cooling/Heating |
Power Source: |
Electrical |
Power Type: |
AC |
Condition: |
New |
Product Description

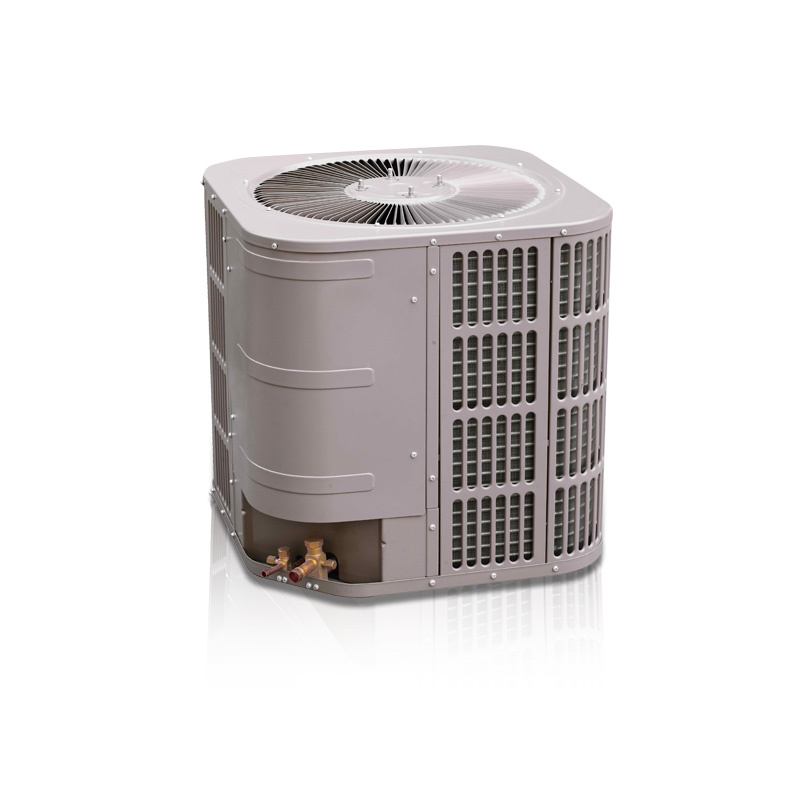

Top Discharge Condensing Unit Air Conditioner
10.00 SEER & 13.00 SEER Efficiency Range
Cooling capacity from 1.5 to 5 tons
T3 Tropical high efficiency Condensing units
FEATURES
Super quiet top air discharge
Sheet metal guard is standard. Optional nylon and grill guard is available
Coils are constructed of copper tubing with protected aluminum fins for durability and long lasting efficient operation
UL State-of-art compressor. Scroll compressors in 5 ton models
Refrigerant connections with a single control panel cover make servicing trouble-free.
Operating sounds are minimized through upward discharge air flow and innovative design
Service-free permanently lubricated motor-bearings
Service valves are standard on liquid and vapor sweat connections for ease of evacuating and recharging.
VOLTS/HZ/PHASE | / | 220-240/50/1 | 380-415/50/3 | 220-240/50/1 | 380-415/50/3 |
VOLTAGE RANGE | / | 198-264 | 342-456 | 198-264 | 342-456 |
MAX. OVERCURRENT PROT. | A | 20 | 20 | 25 | 25 | 15 | 15 | 20 | 25 | 15 | 15 | 20 |
OPERATING CURRENT AMPS | A | 11.4 | 12.1 | 14.6 | 15.4 | 6.6 | 9.1 | 10.9 | 14.3 | 6.2 | 8.4 | 10.9 |
MIN. WIRE AMPACITY | A | 10.8 | 11.3 | 13.8 | 14.8 | 5.9 | 8.5 | 10.2 | 13.6 | 5.7 | 7.8 | 10.2 |
COMPRESSOR DATA |
|
TYPE | / | RECIPROCATING | SCROLL |
RLA | A | 10.6 | 11.3 | 13.8 | 14.6 | 5.74 | 7.5 | 9.3 | 14.6 | 5.74 | 7.5 | 9.3 |
LRA | A | 52 | 66 | 78 | 90 | 42 | 55 | 69 | 90 | 42 | 55 | 69 |
FAN DATA |
|
|
|
|
MOTOR TYPE | / | PSC |
RPM | / | 920 | 920 | 920 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 |
CFM | / | 1380 | 1380 | 2000 | 2850 | 2850 | 3150 | 3400 | 2850 | 2850 | 3150 | 3400 |
REFRIGERANT LINE CONNECTIONS |
|
|
|
|
LIQUID LINE DIAMETER | INCH/mm | 3/8 /φ 9.52 |
SUCTION LINE DIAMETER | INCH/mm | 5/8 /φ 15.88 | 3/4 /φ 19.05 | 7/8/φ 22.22 |
UNIT SIZE |
|
|
|
|
LENGTH | INCH/mm | 22-1/2/574 | 22-1/2/574 | 22-1/2/574 | 22-1/2/574 | 22-1/2/574 | 30/768 | 30/768 | 22-1/2/574 | 22-1/2/574 | 30/768 | 30/768 |
WIDTH | INCH/mm | 22-1/2/574 | 22-1/2/574 | 22-1/2/574 | 22-1/2/574 | 22-1/2/574 | 30/768 | 30/768 | 22-1/2/574 | 22-1/2/574 | 30/768 | 30/768 |
HEIGHT | INCH/mm | 24/610 | 24/610 | 26/625 | 28-1/2/725 | 28-1/2/725 | 28-1/2/675 | 28-1/2/728 | 28-1/2/725 | 28-1/2/725 | 28-1/2/675 | 28-1/2/728 |
WEIGHTS |
|
|
|
|
NET WEIGHT | LBS/Kg | 106/48 | 116/53 | 143/65.2 | 150/68.4 | 160/73 | 194/88.5 | 194/88.5 | 150/68.4 | 160/73 | 194/88.5 | 194/88.5 |
SHIPPING WEIGHT | LBS/Kg | 112/51 | 123/56 | 150/68.4 | 166/75.7 | 172/78.5 | 206/94 | 206/94 | 166/75.7 | 172/78.5 | 206/94 | 206/94 |
