Prod Model: |
BZTN900883 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

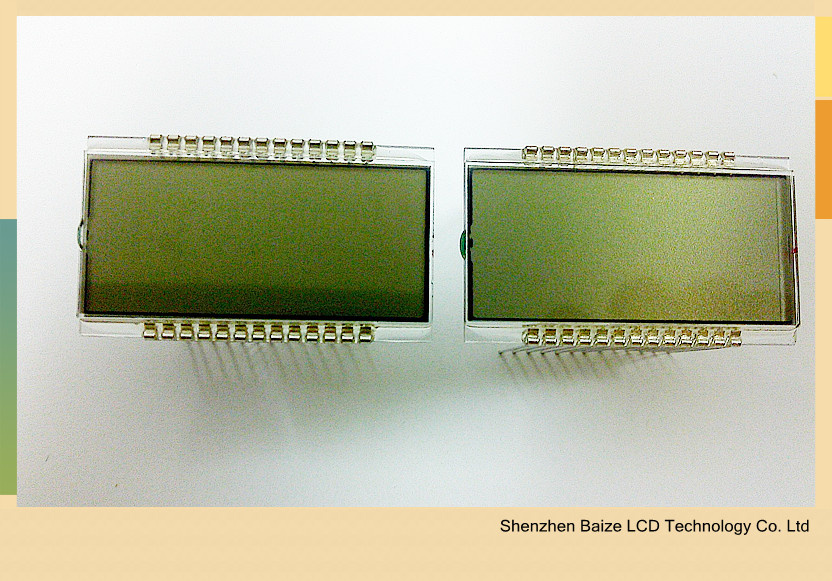

TN Positive Monochrome LCD display
Display type: TN/positive/Transflective
Outline dimensions: 39.70*19.00/23.00*1.1mm
Viewing dimensions: 36.00*16.00mm
Viewing angle: 12 O'clock
Connector type: Pin
Driver method: 1/4duty, 1/3bias
Operate temperatures: -20 to 80°
Storage temperatures: -30 to 85°
Power supply volume: 5.0V
Segments: TN LCD.
Usage |
For Car Instruments |
LCD mode |
TN/Positive/Transflective |
Outline size |
39.70*19.00/23.00*1.1mm |
Viewing size |
36.00*16.00mm |
Viewing Angle |
12 O’ clock |
Driving Method |
1/4Duty 1/3Bias |
|
|
Connector Type |
Metal Pin |
Operate Temp |
-20~80degree |
Storage Temp |
-30~85degree |
Power supp |
5.0V; 75HZ |
RoHS compliant product |
